Fiber Optic Termination Box
Created with Pixso. Fiber Optic Cable Wall Mount Box, FTTH 86 Wall Outlet Adaptor Interface SC FC

Fiber Optic Cable Wall Mount Box, FTTH 86 Wall Outlet Adaptor Interface SC FC

Brand Name: YINGDA
Model Number: FTB86
MOQ: 100 PCS
Price: Negotiable
Detail Information
Place of Origin:
china
Certification:
ISO,SGS
Color:
White
Material:
Plastic PC / ABS
Connector:
SC
Fiber Count:
2 Core Single Fiber
Size:
86*86*23mm
Cable Port:
2 Pcs
Packaging Details:
1pc / box
Highlight:

fiber optic terminal box

,

fiber optic distribution box

Product Description

Fiber Optic Cable Wall Mount Box, FTTH 86 Wall Outlet Adaptor Interface SC FC​





Sell point:

  1. ABS plastic, fire-retartant material can be choose
  2. each with plastic bag,400pcs in a carton box.
  3. can use SC LC FC ST
  4. 1pc sample is for free
  5. adaptor and pigtail can be installed on request
  6. customer logo, customer label, customer shipping mark available



Description



86 Type fiber optic customer use terminal box body cover clip design greatly reduce the installation

difficulty. It is thin box body,can match with other electrical junction box panel and is suitable for light

and dark fiber optic cable wiring, also widely used in FTTH, FTTO, FTTD and other occasions.





Features:

  1. Embedded box frame, easy to install
  2. With the FC rectangle fiber adapter products, LC, SC can be used
  3. The large diameter cable rolling poles fully protect the fiber inside.
  4. The dimension conforms to 86 type box standard.
  5. SC simplex adapter or LC duplex adapter installed, used in the work area subsystem.
  6. With dust-proof device to prevent dust entering
  7. Equipped with identification bar, convenient numbering management and maintenance
  8. Product material: high quality ABS (flame retardant) material



Specification:



Cable (mm)

3.1 x 2.0 Drop cable or indoor cable

Fiber diameter (μm)

125 ( 652 & 657 )

Cladding diameter (μm)

250 & 900

Fiber mode

Single mode, multimode

Tensile strength (N)

>50

Operating temperature (℃)

-40~+75

adapter

SC,LC,DLC

Insertion loss (dB)

≤ 0.2(1310nm & 1550nm)

Working wavelength (nm)

1310, 1550

Sizes (mm)

86×27×86

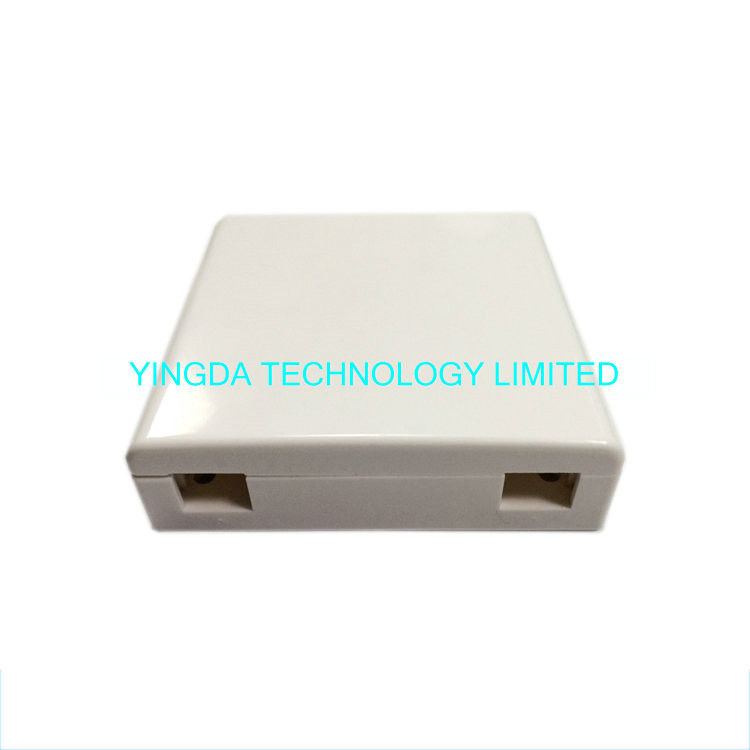

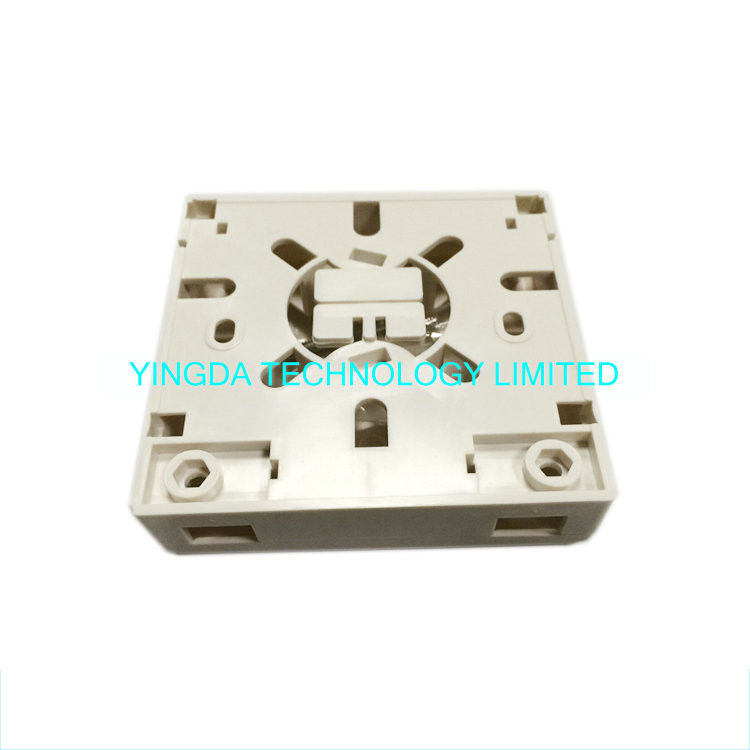

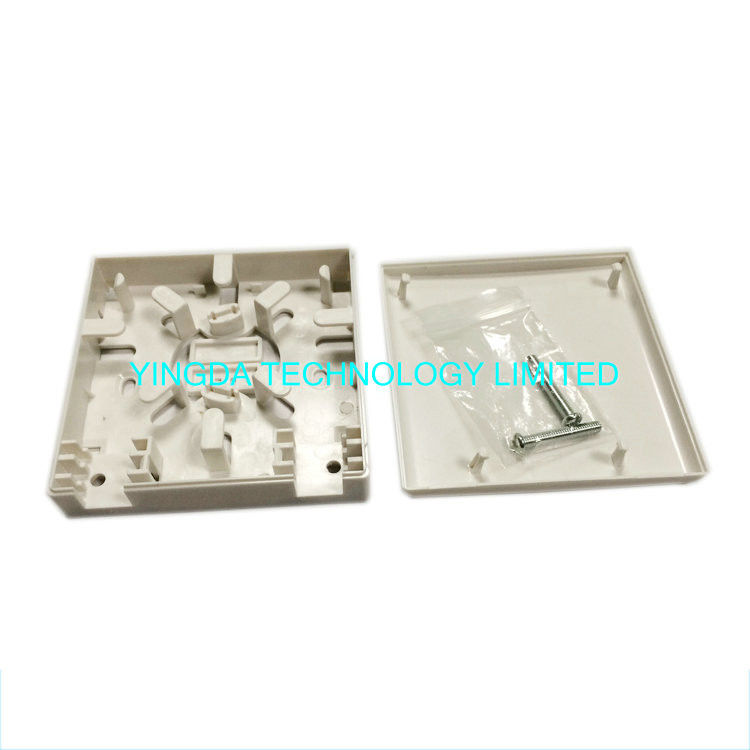

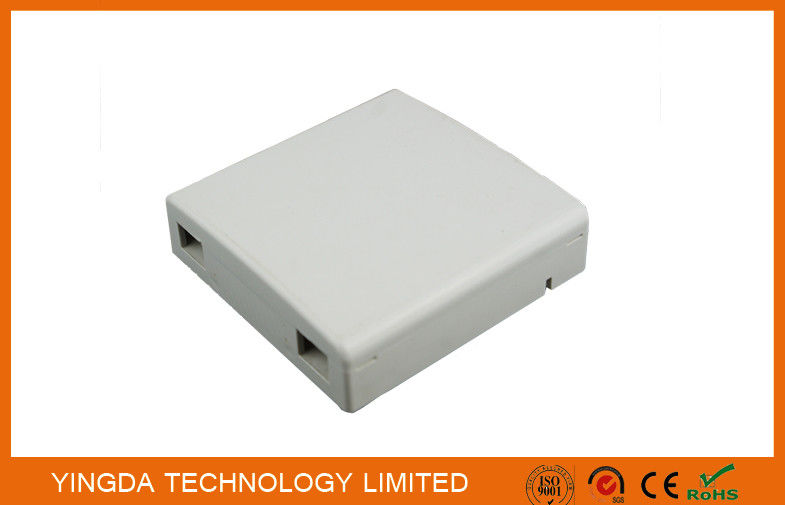

Fiber Optic Cable Wall Mount Box, FTTH 86 Wall Outlet Adaptor Interface SC FC 0Fiber Optic Cable Wall Mount Box, FTTH 86 Wall Outlet Adaptor Interface SC FC 1Fiber Optic Cable Wall Mount Box, FTTH 86 Wall Outlet Adaptor Interface SC FC 2Fiber Optic Cable Wall Mount Box, FTTH 86 Wall Outlet Adaptor Interface SC FC 3
