Fiber Optic Termination Box
Created with Pixso. 2 Ports SC Adaptor Fiber Optic Termination Box, 2 Fibers FTTH Termination Box Wall Outlet

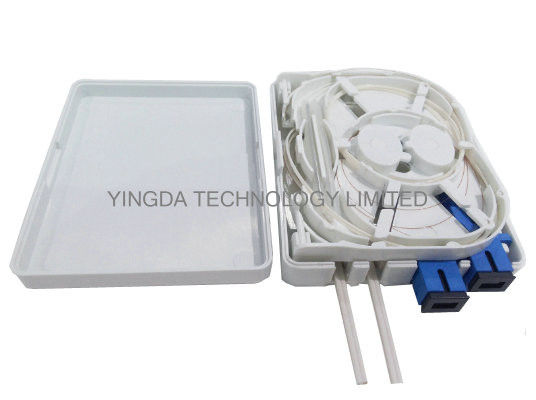

2 Ports SC Adaptor Fiber Optic Termination Box, 2 Fibers FTTH Termination Box Wall Outlet

Brand Name: YINGDA
Model Number: FTB86X
MOQ: 50 PCS
Price: Negotiable
Detail Information
Place of Origin:
china
Certification:
ISO,SGS
Color:
White
Material:
Plastic PC / ABS
Adapter:
SC Or LC Duplex
Fiber Count:
4 Core Single Fiber
Size:
80*100*23 Mm
Cable Port:
2 Pcs
Packaging Details:
1pc/ box
Highlight:

fiber optic terminal box

,

fiber optic junction box

Product Description

2 Ports SC Adaptor Fiber Optic Termination Box, 2 Fibers FTTH Termination Box Wall Outlet

Model: FTB86X



Sell Point:

  1. max. 4pcs Single Fiber Cable in and out
  2. SC simplex adapter or LC duplex adaptor can be choose
  3. FTTH drop cable available
  4. sample is ok
  5. cusotmer OEM logo, label ok

Features

  1. The series are used in the end termination of residential buildings and villas,
  2. to fix and splice with pigtails;
  3. Can be installed on the wall;
  4. May adapt variety of optical connection system;
  5. Optical fiber can be managed effectively.



FTB86 box struture



2 Ports SC Adaptor Fiber Optic Termination Box, 2 Fibers FTTH Termination Box Wall Outlet 0



Specification



Model

Socket panel FTB-86X

Dimension / mm

80*100*23

Cable diameter / mm

Φ3

Cable ports

2

Max capacity of splice

4 single fiber



Package information



Model Socket panel FTB-86X
Carton size / mm 253*39*54 cm
Net weight / carton 19.5 kgs
Gross weight / carton 23 kgs
Weight / carton

260 pcs



More pictures



2 Ports SC Adaptor Fiber Optic Termination Box, 2 Fibers FTTH Termination Box Wall Outlet 12 Ports SC Adaptor Fiber Optic Termination Box, 2 Fibers FTTH Termination Box Wall Outlet 2

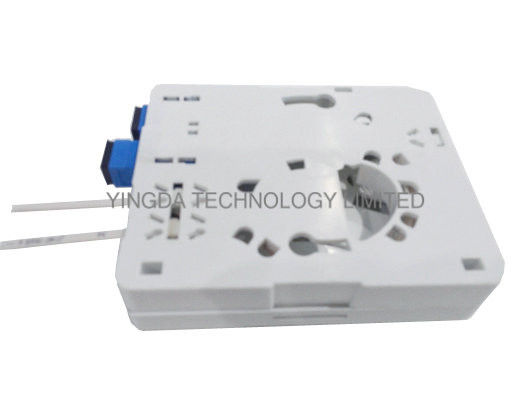

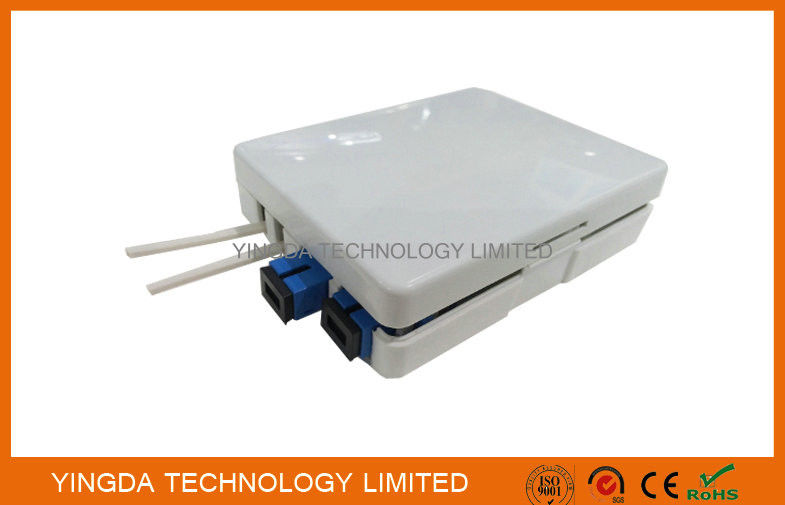

             FTB86X socket panel back                               FTB86X socket panel front



2 Ports SC Adaptor Fiber Optic Termination Box, 2 Fibers FTTH Termination Box Wall Outlet 32 Ports SC Adaptor Fiber Optic Termination Box, 2 Fibers FTTH Termination Box Wall Outlet 4

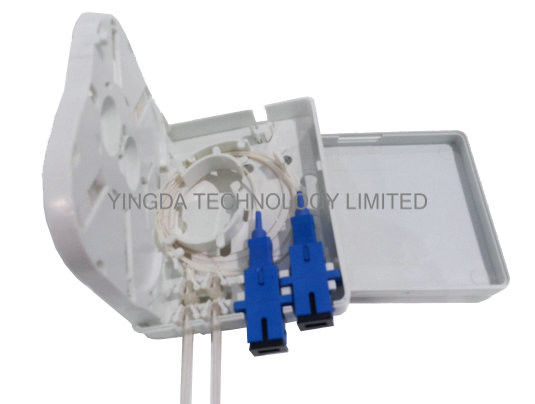

    FTB86X socket panel tray -distribution side          FTB86X socket panel  tray - splicing side





This wall mounting optic outlet FTB86X box can also use for fast connectors

with FTTH drop cable:



2 Ports SC Adaptor Fiber Optic Termination Box, 2 Fibers FTTH Termination Box Wall Outlet 5
