Fiber Optic Termination Box
Created with Pixso. Indoor 4 Port FTTH Fiber Termination Box, 4 Cores ST Fiber Optic Splice Box Cold Rolled Steel

Indoor 4 Port FTTH Fiber Termination Box, 4 Cores ST Fiber Optic Splice Box Cold Rolled Steel

Brand Name: YINGDA
Model Number: FTB104 -ST
MOQ: 50PCS
Price: Negotiable
Payment Terms: Western Union, T/T, MoneyGram
Detail Information
Place of Origin:
china
Certification:
ISO,SGS
Color:
Gray
Material:
Cold Rolled Steel
Connector:
SC/ST/FC/LC
Fiber Count:
4 Cores
Size:
140*105*28 Mm
Cable Port:
1port, Can Open Another On Demand
Cable Diameter:
5~10mm
Packaging Details:
1pc/ box, 50pcs/ carton box
Supply Ability:
500000PCS a month
Highlight:

fiber optic terminal box

,

fiber optic distribution box

Product Description

Indoor 4 Port FTTH Fiber Termination Box, 4 Cores ST Fiber Optic Splice Box Cold Rolled Steel





Model: FTB104 - ST



FTB104 fiber optic termination box is widely used in the end termination of residential buildings and villas to fix and splice with pigtails.



Features

  • Cold rolled steel, gray color
  • small size,light weight,good appearance
  • wall mounted with mechanical protection function
  • max fiber capacity 4fibers,4 adapter output
  • available for 4pcs FC,SC,ST,LC adapters
  • hinge and convenient press-pull button lock design
  • Environmental Temperature:-25°C~40°C;
  • Self-clip design,easy to operate
  • sample is ok



Specifications

Item FTB 104 FTB 108 FTB 116
Size(H*W*D)mm 140*105*28 200*148*30 245*200*48
Cable diameter(mm) 5~10
Cable ports 1pc 2pcs 3pcs
Max capacity of splice 4 cores 8 cores 16 cores

More pictures
Indoor 4 Port FTTH Fiber Termination Box, 4 Cores ST Fiber Optic Splice Box Cold Rolled Steel 0Indoor 4 Port FTTH Fiber Termination Box, 4 Cores ST Fiber Optic Splice Box Cold Rolled Steel 1

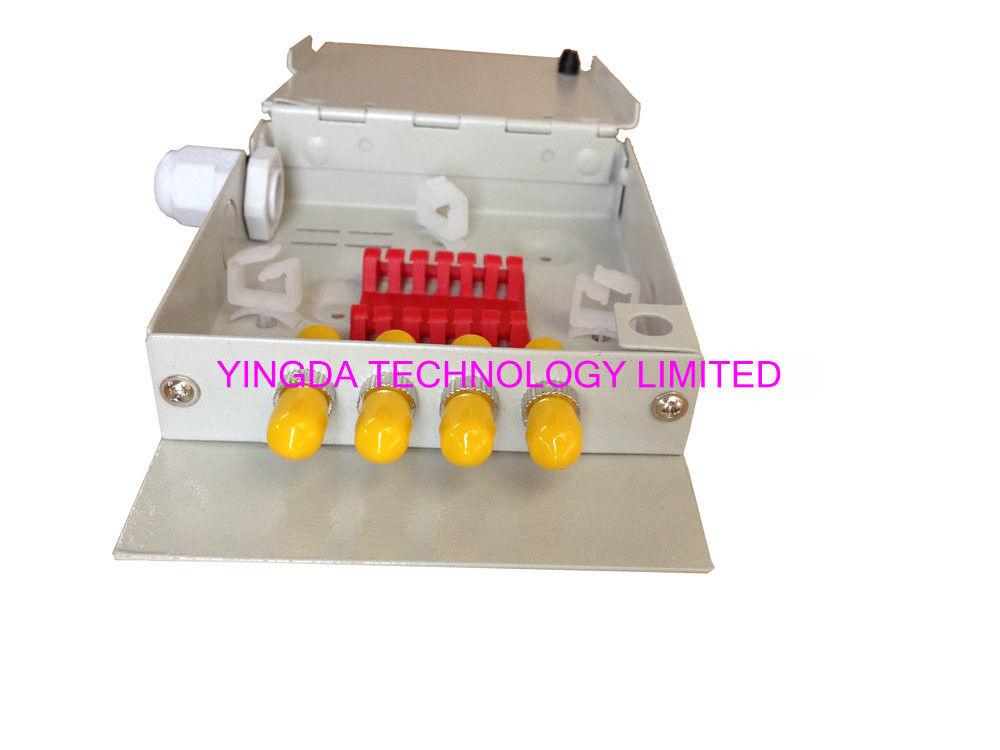

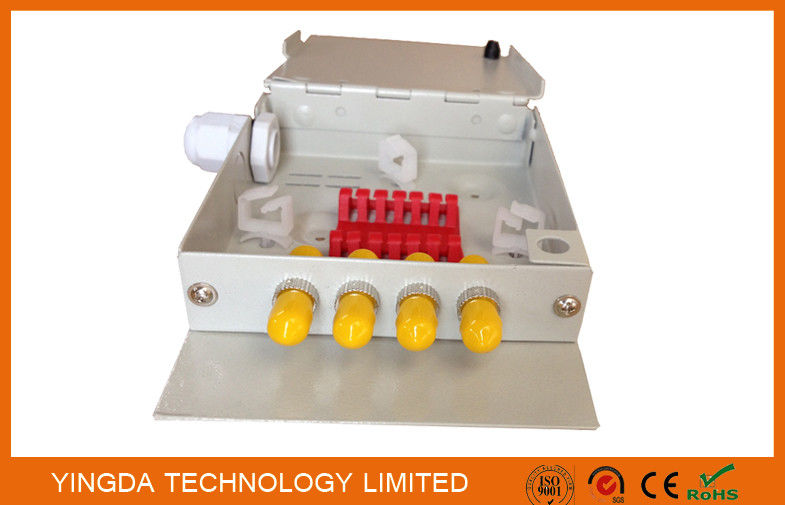

FTB104 terminal box is used indoor, metal material, gray color
and self-clip design with plastic fixtures, no need wrench or keys,easy to open and close

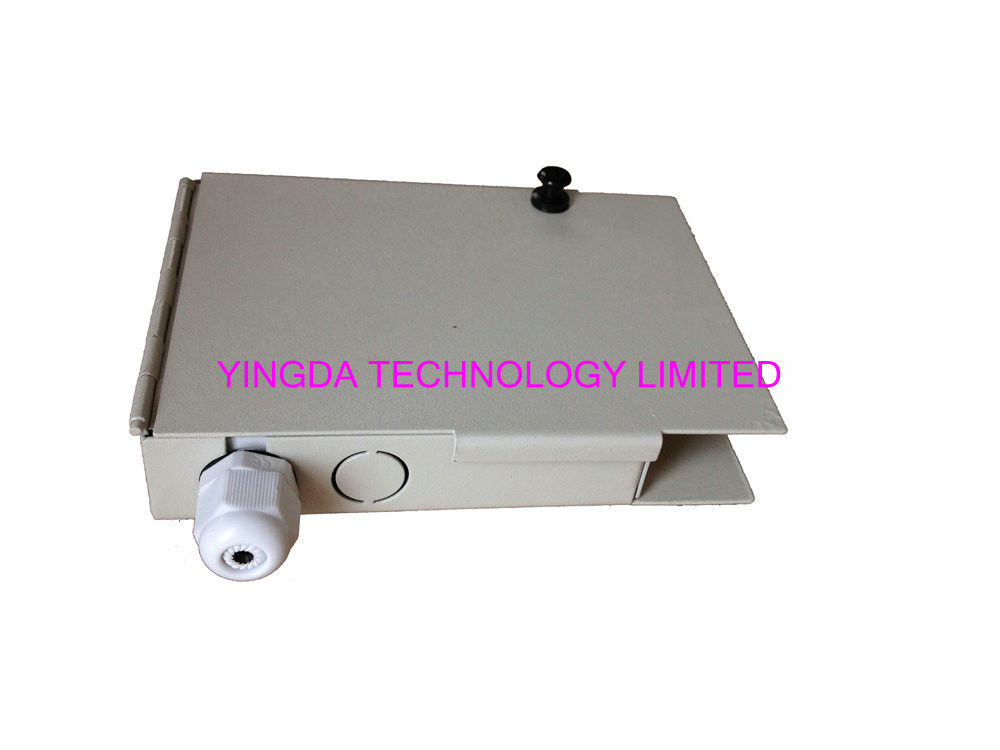

1pc cable gland, if need, can open another. cable diameter:5-10mm



Indoor 4 Port FTTH Fiber Termination Box, 4 Cores ST Fiber Optic Splice Box Cold Rolled Steel 2Indoor 4 Port FTTH Fiber Termination Box, 4 Cores ST Fiber Optic Splice Box Cold Rolled Steel 3

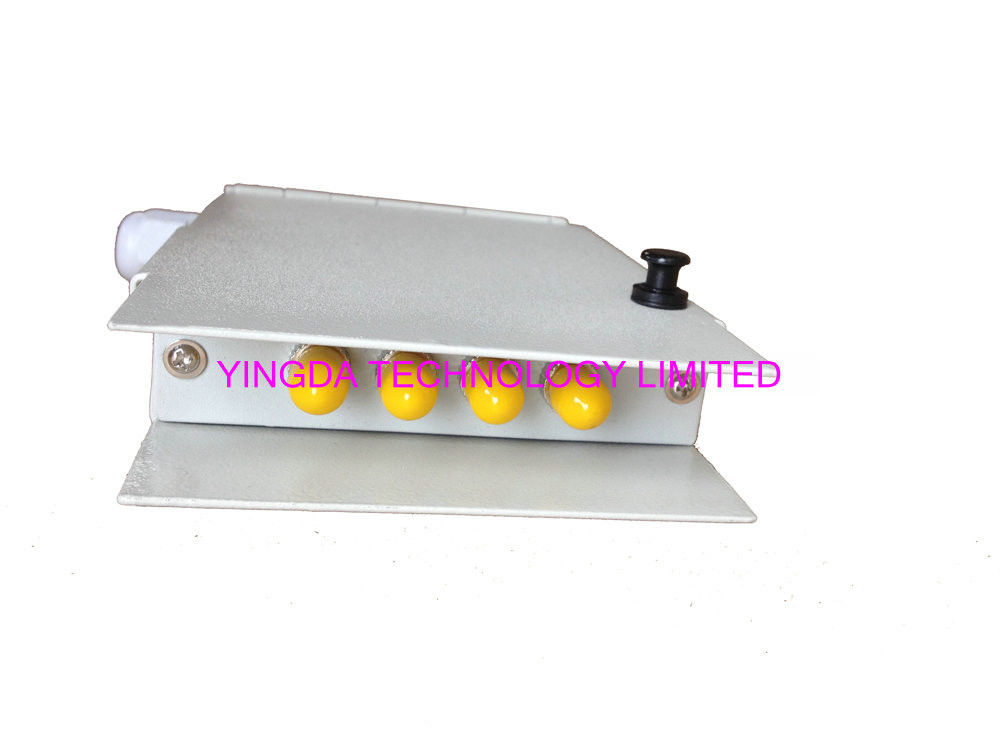

the box is totally closed
 the adapter panel can change into SC,ST,FC,LC adapters port
the adapter panel max capacity can be 4fibers, 6fibers, 8fibers 12fibers...16fibers

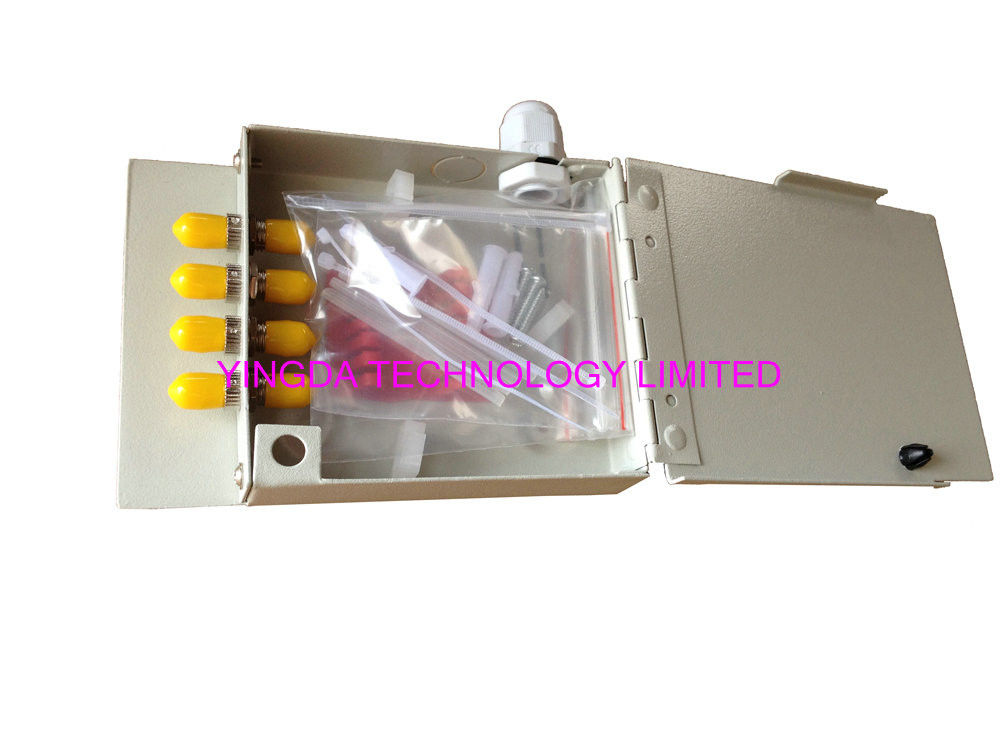

inside with protection sleeve holders and cable ties to fix the cable and fusion pigtails.




Kit content



Splice protectin sleeve 60 mm 4 pcs
Cable ties 60 mm 10 pcs
Installation nails Bolt 3-4 pcs

Indoor 4 Port FTTH Fiber Termination Box, 4 Cores ST Fiber Optic Splice Box Cold Rolled Steel 4

Package information



Carton size Carton weight Carton qty
73*32*29 cm 22 kgs 50 pcs



Indoor 4 Port FTTH Fiber Termination Box, 4 Cores ST Fiber Optic Splice Box Cold Rolled Steel 5

1piece in a box, inside foam and plastic bag to protect the box. then put in shipping carton box for delivery.





If you have other request, or speical design,  we can make for you.
