ODWAC-15 Mini Cable Installation Kits Drop Wire Tension Clamp for Figure 8 Cable

MOQ: 100pcs
Price: 0.14USD-10USD
Delivery Period: 2-5days
Payment Method: T/T
Supply Capacity: 50000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YINGDA
Certification
ISO,CE
Model Number
ODWAC-15
Model Number:
ODWAC-15
Application:
Ftth Drop Wire Clamp
Material:
Stainless Steel
Weight:
24g
Type:
Hardware Fittings
Wire Diameter:
2~5mm
Highlight:

Figure 8 Cable Installation Kits

,

Drop Wire Tension Clamp

,

Figure 8 Drop Wire Tension Clamp

Product Description

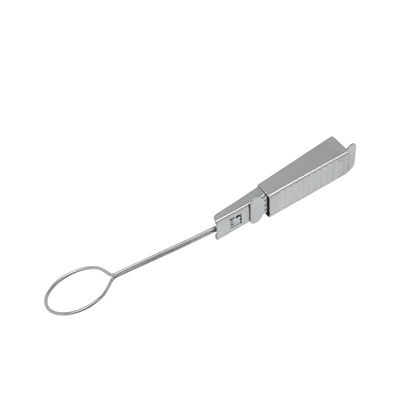

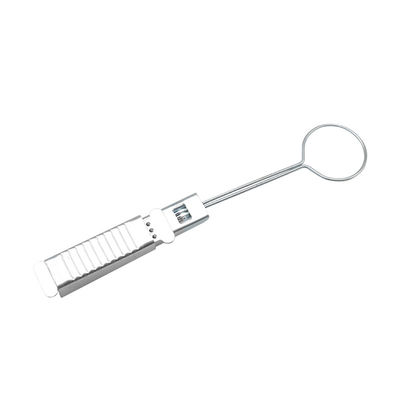

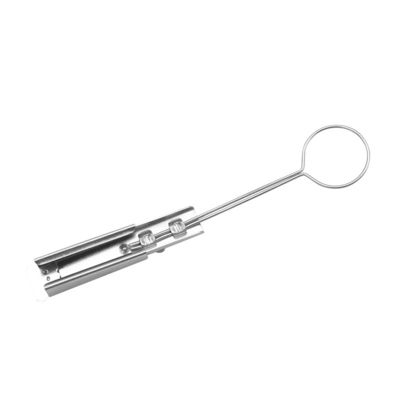

ODWAC-15 Mini Cable Installation Kits Drop Wire Tension Clamp for Figure 8 Cable

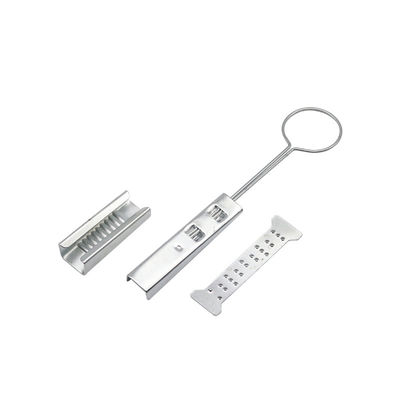

The drop wire clamp ODWAC series is composed of a body shell, a wedge and a shim, all made of stainless steel, which ensure good corrosion resistant performance, good insulating property and long life service. The solid wire bail (body) is crimped to the wedge, and the clamp furnished with a perforated gasket which increases the tension load on drop clamp without cable slip and damage,supply a long time usage life.



The stainless steel hook can be used with drive hooks,pole brackets,FTTH brackets and other fiber optic cable fittings or hardware.



ODWAC-15 Cable Clamp Features

  • Entire clamp made of corrosion resistant stainless steel
  • Suitable for all major telephone companies and the telecommunications industry
  • Maximum breaking load of 555 lb
  • Compact size, light weight
  • Cost-effective, single-piece design
  • Simple and fast installation, requiring no tools
  • Efficient cable grip by conical wedging
  • Manual adjustment of the lowest point of the cable by blocking the wedge on remote position
  • Mounting on all pole line hardware with open or closed eye and min. Ø20mm
  • Suitable for flat cable with a thickness of less than 6mm and a width of less than 13mm



ODWAC-15 Cable Clamp Application

The ODWAC-15 drop wire clamp is ideal for outdoor network installation and laying, stretching and fixing drop wire and optical cables on poles or building exterior walls.



ODWAC-15 Cable Clamp Specification

Model ODWAC-15
Dimension  mm
Material Stainless steel
Cable type 2 ~6mm flat drop cable (max.13*6mm)
Breaking load 1.2KN
Net weight 24g



ODWAC-15 Mini Cable Installation Kits Drop Wire Tension Clamp for Figure 8 Cable 0ODWAC-15 Mini Cable Installation Kits Drop Wire Tension Clamp for Figure 8 Cable 1ODWAC-15 Mini Cable Installation Kits Drop Wire Tension Clamp for Figure 8 Cable 2

ODWAC-15 Mini Cable Installation Kits Drop Wire Tension Clamp for Figure 8 Cable 3ODWAC-15 Mini Cable Installation Kits Drop Wire Tension Clamp for Figure 8 Cable 4ODWAC-15 Mini Cable Installation Kits Drop Wire Tension Clamp for Figure 8 Cable 5ODWAC-15 Mini Cable Installation Kits Drop Wire Tension Clamp for Figure 8 Cable 6
