ODWAC-S22 FTTH Flat Drop Cable Wire Tension Clamp For Figure 8 Open Hook

MOQ: 100pcs
Price: 0.14USD-10USD
Delivery Period: 2-5days
Payment Method: T/T
Supply Capacity: 50000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YINGDA
Certification
ISO,CE
Model Number
ODWAC-S22
Model Number:
ODWAC-S22
Application:
Aerial Cable Mounting And Clamping
Material:
Stainless Steel 304
Weight:
45g
Function:
Drop Wire Clamp
Type:
Hardware Fittings
Wire Diameter:
2~5mm
Color:
Silver
Highlight:

Open Hook Wire Tension Clamp

,

Figure 8 Wire Tension Clamp

,

FTTH Wire Tension Clamp

Product Description

ODWAC-22 FTTH Flat Drop Cable Wire Tension Clamp For Figure 8 Cable Installation Kits

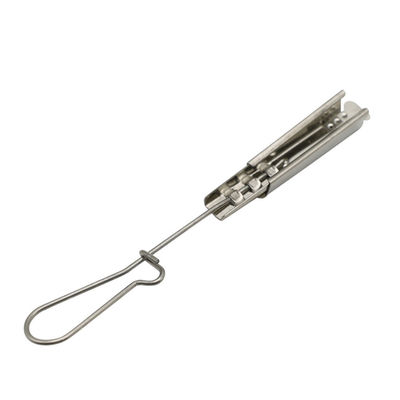

ODWAC-S22 FTTH Flat Drop Cable Wire Tension Clamp For Figure 8 Open Hook 0


The drop wire clamp ODWAC series is composed of a body shell, a wedge and a shim, all made of stainless steel, which ensure good corrosion resistant performance, good insulating property and long life service. The solid wire bail (body) is crimped to the wedge, and the clamp furnished with a perforated gasket which increases the tension load on drop clamp without cable slip and damage,supply a long time usage life.


The stainless steel hook can be used with drive hooks,pole brackets,FTTH brackets and other fiber optic cable fittings or hardware.


Features

  • Entire clamp made of corrosion resistant stainless steel
  • Suitable for all major telephone companies and the telecommunications industry
  • Maximum breaking load of 555 lb
  • Compact size, light weight
  • Cost-effective, single-piece design
  • Simple and fast installation, requiring no tools
  • Efficient cable grip by conical wedging
  • Manual adjustment of the lowest point of the cable by blocking the wedge on remote position
  • Mounting on all pole line hardware with open or closed eye and min. Ø20mm
  • Suitable for flat cable with a thickness of less than 6mm and a width of less than 13mm


Application

The ODWAC-S22 drop wire clamp is ideal for outdoor network installation and laying, stretching and fixing drop wire and optical cables on poles or building exterior walls.


Specification

Model ODWAC-S22
Dimension 182*19*17mm
Material Stainless steel
Cable type 2 ~6mm flat drop cable (max.13*6mm)
Breaking load 1.2KN
Net weight 45g

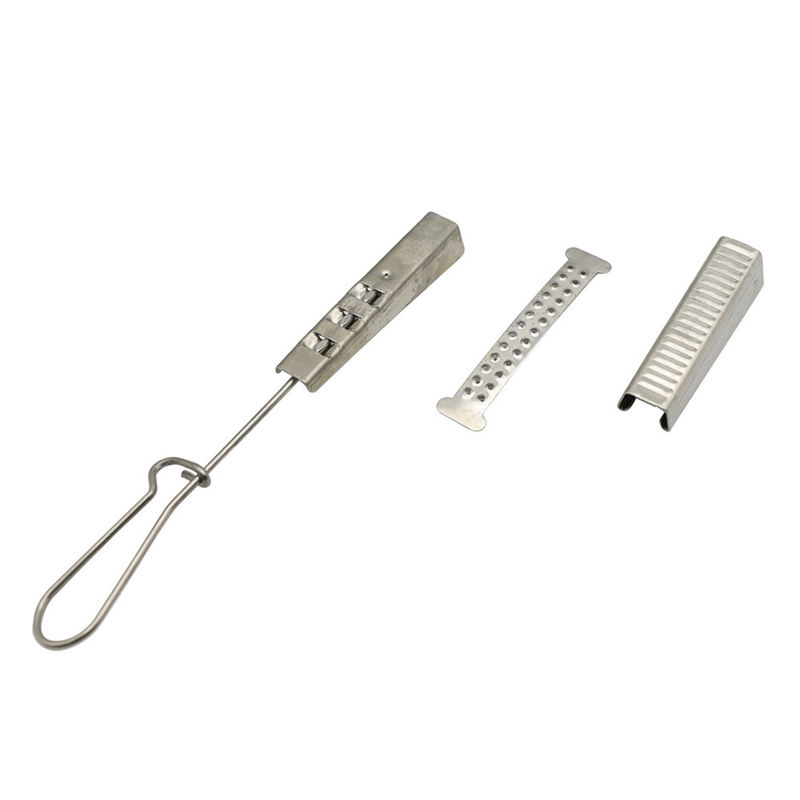

ODWAC-S22 FTTH Flat Drop Cable Wire Tension Clamp For Figure 8 Open Hook 1

The FTTH Flat drop cable structure:

Wedge size: 67.5*19mm

Shim Size: 81*17mm

Body Shell Size: 198*20mm


ODWAC-S22 FTTH Flat Drop Cable Wire Tension Clamp For Figure 8 Open Hook 2


Wedge Design

The card slot is designed with a circular arc shape, which is not harm hands during use.


ODWAC-S22 FTTH Flat Drop Cable Wire Tension Clamp For Figure 8 Open Hook 3

Tensioner

The tensioner design adopts an upward concave and downward convex stamping fixation method, which is durable

and has a tensile strength of over 1.2kn.

The non planar design on the back can better coordinate with the gasket to fix the optical cable, ensuring stability and reliability.

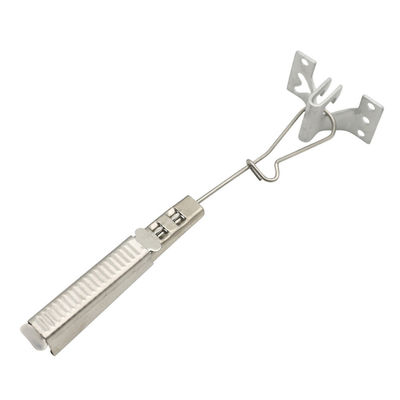

ODWAC-S22 FTTH Flat Drop Cable Wire Tension Clamp For Figure 8 Open Hook 4

Wide Application

Simples to use with all kinds of hook.


Fiber Tension clamp workshop:

ODWAC-S22 FTTH Flat Drop Cable Wire Tension Clamp For Figure 8 Open Hook 5
