1 Core Transparent Mini FTTH Drop Cable Splice Protection Box ABS PP Indoor Use
  • Name
  • Name

1 Core Transparent Mini FTTH Drop Cable Splice Protection Box ABS PP Indoor Use

MOQ: 100pcs
Price: 0.18USD-4.29USD
Standard Packaging: 100pcs/bag
Delivery Period: 3days
Payment Method: T/T, Western Union, MoneyGram
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
CHINA
Brand Name
YINGDA
Certification
ISO CE
Model Number
FSB-R011T
Material:
ABS Or PP
Color:
White
Dimension:
72*10*10mm
Max Capacity:
1 Core Single Fiber
Cable Ports:
1 In 1 Out
Cable Diameter:
3.0mm 2x3mm, 0.9mm 250um
Highlight:

Transparent Splice Protection Box

,

Mini Splice Protection Box

,

Indoor Use Splice Protection Box

Product Description

1 Core Transparent Mini FTTH Drop Cable Splice Protection Box ABS PP Indoor Use





FSB drop cable splicing protection box is a case used to help protect the fiber joint (splicing spot) with a heat shrink protection tube, it is able to hold up to 1pc drop cables and widely used as a termination point for the drop cable to connect with pigtail or bare fiber access to ONT in FTTH indoor application. It integrates fiber splicing, storage and protection in one solid box.



Drop Cable Protection Box FSB-R011T Features

  • Dust-proof design with IP-45 Protection level
  • Industrial ABS PP engineering plastic material, white color
  • Protect the fiber splice sleeve 40mm, 45mm or 60mm from damage
  • 1in 1out cable go directly through the box
  • Round shape, the whole boday can be open, easy to operate



Drop Cable Protection Box FSB-R011T Dimension

1 Core Transparent Mini FTTH Drop Cable Splice Protection Box ABS PP Indoor Use 0





Drop Cable Protection Box FSB-R011T Specification



Model FSB-P011
Dimension(L*W*D) 72*10*10mm
Max capacity 1core single fiber
Cable ports 1in 1out
Cable diameter Flat drop cable 2.0*3.0mm, indoor cable 0.9mm, 2,0mm, 3.0mm, 250um bare fiber
Color Transparent
Working temperature -40~+75°C
Material ABS / PP

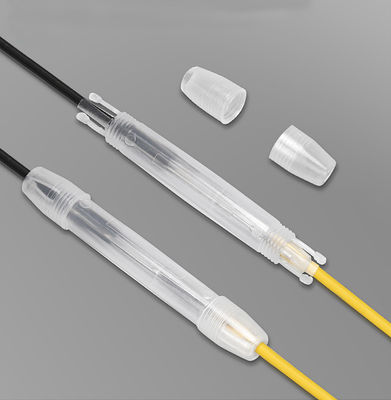

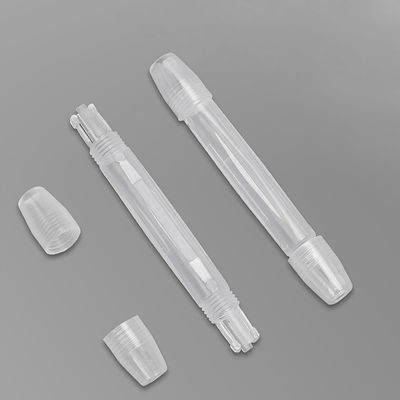

Drop Cable Protection Box FSB-R011T Product Details

1 Core Transparent Mini FTTH Drop Cable Splice Protection Box ABS PP Indoor Use 11 Core Transparent Mini FTTH Drop Cable Splice Protection Box ABS PP Indoor Use 21 Core Transparent Mini FTTH Drop Cable Splice Protection Box ABS PP Indoor Use 31 Core Transparent Mini FTTH Drop Cable Splice Protection Box ABS PP Indoor Use 4
