1 Port Fiber Optic Drop Cable Splice Box White Round Shape 100 Pcs/Bag
  • name
  • name
  • name

1 Port Fiber Optic Drop Cable Splice Box White Round Shape 100 Pcs/Bag

MOQ: 100pcs
Price: 0.18USD-4.29USD
Standard Packaging: 100pcs/bag
Delivery Period: 3days
Payment Method: T/T, Western Union, MoneyGram
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
CHINA
Brand Name
YINGDA
Certification
ISO CE
Model Number
FSB-R011
Material:
ABS Or PP
Color:
White
Dimension:
83*10*10 Mm
Max Capacity:
1 Core Single Fiber
Cable Ports:
1 In 1 Out
Cable Diameter:
3.0mm 2x3mm, 0.9mm 250um
Highlight:

Round Shape Drop Cable Splice Box

,

Fiber Optic Drop Cable Splice Box

,

1 Port Drop Cable Splice Box

Product Description

1 Port Fiber Optic Drop Cable Splice Box White Round Shape 100 pcs/Bag





FSB drop cable splicing protection box is a case used to help protect the fiber joint (splicing spot) with a heat shrink protection tube, it is able to hold up to 1pc drop cables and widely used as a termination point for the drop cable to connect with pigtail or bare fiber access to ONT in FTTH indoor application. It integrates fiber splicing, storage and protection in one solid box.



Drop Cable Splice Box R011 Features

  • Dust-proof design with IP-45 Protection level
  • Industrial ABS PP engineering plastic material, white color
  • Protect the fiber splice sleeve 40mm, 45mm or 60mm from damage
  • 1in 1out cable go directly through the box

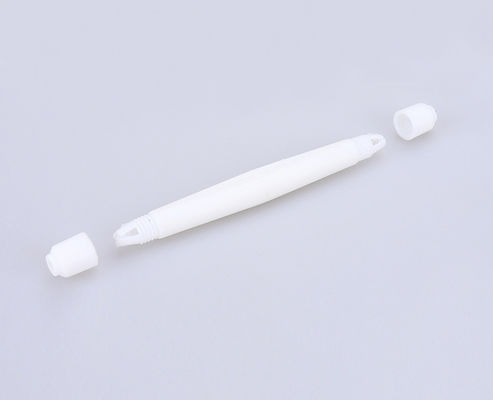

  • Round shape, unscrew both boots to insert and protect the optical joint



Drop Cable Splice Box R011 Dimension

1 Port Fiber Optic Drop Cable Splice Box White Round Shape 100 Pcs/Bag 0





Drop Cable Splice Box R011 Specification

Model FSB-R011
Dimension(L*W*D) 83*10*10mm
Max capacity 1core single fiber
Cable ports 1in 1out
Cable diameter Flat drop cable 2.0*3.0mm, indoor cable 0.9mm, 2,0mm, 3.0mm, 250um bare fiber
Color Transparent
Working temperature -40~+75°C
Material ABS / PP

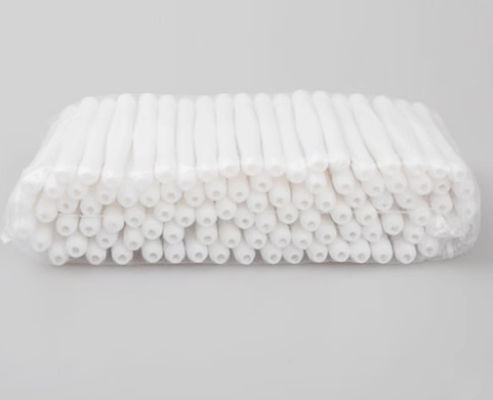

Drop Cable Splice Box R011 Pack Information: 100pcs/bag

1 Port Fiber Optic Drop Cable Splice Box White Round Shape 100 Pcs/Bag 1

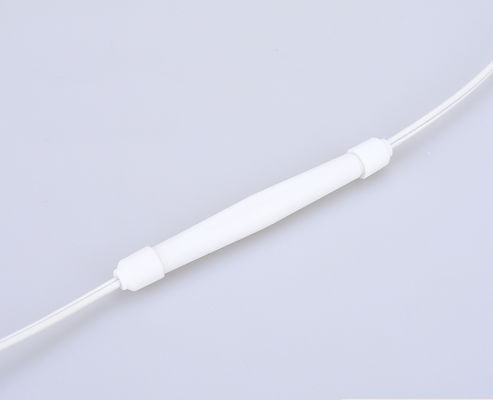

Drop Cable Splice Box R011 Product Details

1 Port Fiber Optic Drop Cable Splice Box White Round Shape 100 Pcs/Bag 21 Port Fiber Optic Drop Cable Splice Box White Round Shape 100 Pcs/Bag 31 Port Fiber Optic Drop Cable Splice Box White Round Shape 100 Pcs/Bag 4



Drop Cable Splice Box R011 Product Color

1 Port Fiber Optic Drop Cable Splice Box White Round Shape 100 Pcs/Bag 51 Port Fiber Optic Drop Cable Splice Box White Round Shape 100 Pcs/Bag 6

                          White color                                                                        Balck color



1 Port Fiber Optic Drop Cable Splice Box White Round Shape 100 Pcs/Bag 7
