Fiber Optic Termination Box
Created with Pixso. 3in 3out 6 Ports Fiber Optic Drop Cable Splicing Protection Box
3in 3out 6 Ports Fiber Optic Drop Cable Splicing Protection Box
  • Name
  • Name
  • Name

3in 3out 6 Ports Fiber Optic Drop Cable Splicing Protection Box

Brand Name: YINGDA
Model Number: FSB-F033
MOQ: 100pcs
Price: 0.18USD-4.29USD
Delivery Time: 3days
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO CE
Material:
ABS Or PP
Color:
White
Dimension:
95*70*12 Mm
Max Capacity:
3 Core Single Fiber
Cable Ports:
3 In 3 Out
Cable Diameter:
3.0mm 2x3mm, 0.9mm 250um
Packaging Details:
100pcs/bag
Highlight:

6 Ports Splicing Protection Box

,

3in 3out Splicing Protection Box

Product Description

3in 3out 6 Ports Fiber Optic Drop Cable Splicing Protection Box





FSB drop cable splicing protection box is a case used to help protect the fiber joint (splicing spot) with a heat shrink protection tube, it is able to hold up to 3 pc drop cables and widely used as a termination point for the drop cable to connect with pigtail or bare fiber access to ONT in FTTH indoor application. It integrates fiber splicing, storage and protection in one solid box.



Drop Cable Protection Box F033 Features

  • Dust-proof design with IP-45 Protection level
  • Industrial ABS PP engineering plastic material, white color
  • Protect the fiber splice sleeve 40mm, 45mm or 60mm from damage
  • 3in 3out cable go directly through the box



Drop Cable Protection Box F033 Dimension

3in 3out 6 Ports Fiber Optic Drop Cable Splicing Protection Box 0





Drop Cable Protection Box F033 Specification

Model FSB-F033
Dimension(L*W*D) 95*70*12 mm
Max capacity 3 core single fiber
Cable ports 3in 3out
Cable diameter Flat drop cable 2.0*3.0mm, indoor cable 0.9mm, 2,0mm, 3.0mm, 250um bare fiber
Color Transparent
Working temperature -40~+75°C
Material ABS / PP





Drop Cable Protection Box F033 Pack Information: 20pcs/bag

3in 3out 6 Ports Fiber Optic Drop Cable Splicing Protection Box 1

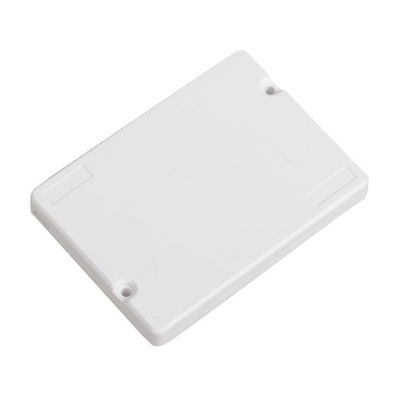

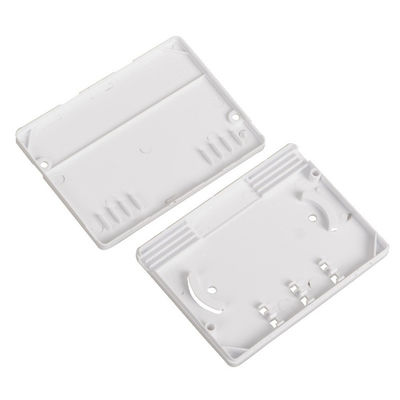

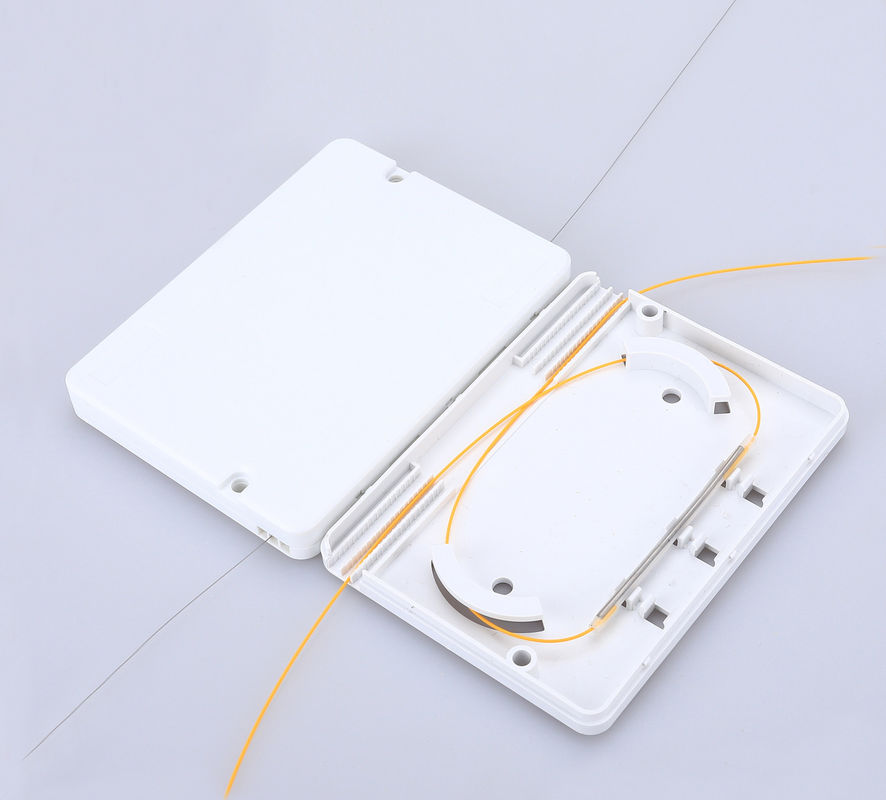

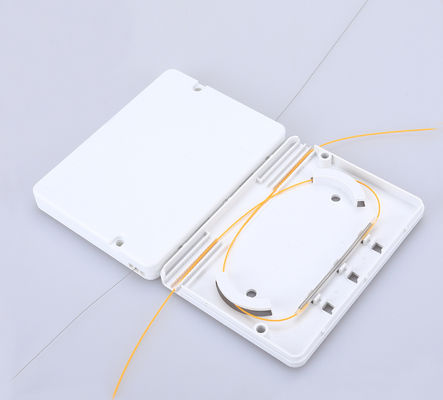

Drop Cable Protection Box F033 Product Details

3in 3out 6 Ports Fiber Optic Drop Cable Splicing Protection Box 23in 3out 6 Ports Fiber Optic Drop Cable Splicing Protection Box 33in 3out 6 Ports Fiber Optic Drop Cable Splicing Protection Box 43in 3out 6 Ports Fiber Optic Drop Cable Splicing Protection Box 53in 3out 6 Ports Fiber Optic Drop Cable Splicing Protection Box 6
