FTTH SC Invisible Fiber Optic Wall Outlet Transparent 900um G657A G657B3 40Meter
  • name
  • name
  • name
  • name

FTTH SC Invisible Fiber Optic Wall Outlet Transparent 900um G657A G657B3 40Meter

MOQ: 100 pc
Price: 0.18USD-4.29USD
Standard Packaging: 1pc / bag, 200pcs per carton box
Delivery Period: 1 week
Payment Method: T/T, L/C, Western Union, MoneyGram
Supply Capacity: 10000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
CHINA
Brand Name
YINGDA
Certification
ISO,CE, ROHS
Model Number
FTB001S-T
Material:
ABS
Insertion Loss:
<0.3dB
Return Loss:
>60dB
Connector Type:
SC APC UPC
Fiber Type:
Single Mode G.657A, G.657B3
Cable Type:
900um Tight Buffer
Application:
FTTH FTTB FTTX Network, Indoor
Product Name:
Wall Outlet, Ftth Box, Fiber Optic Termination Box, Fiber Distribution Box, Fiber Teminal Box
Warranty:
3 Years
Key Words:
Fiber Optic Termination Box
Highlight:

FTTH Fiber Optic Wall Outlet

,

Transparent Fiber Optic Wall Outlet

,

900um Fiber Optic Wall Outlet

Product Description

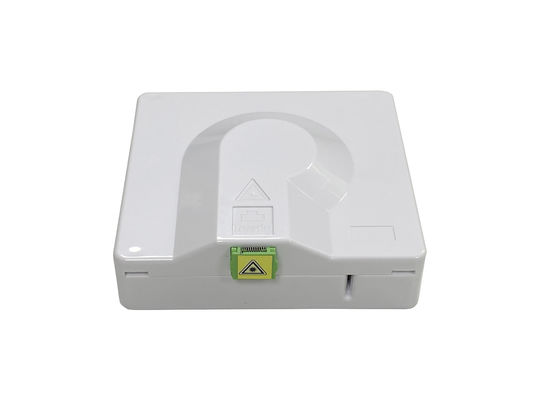

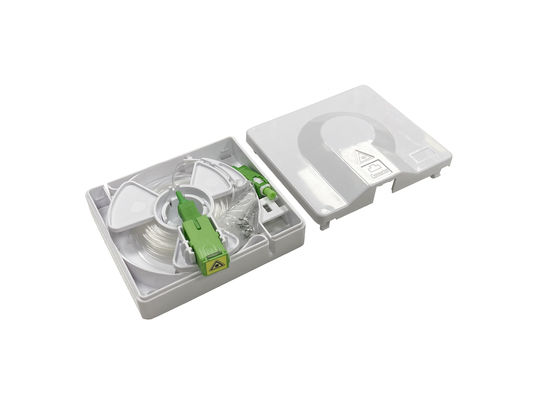

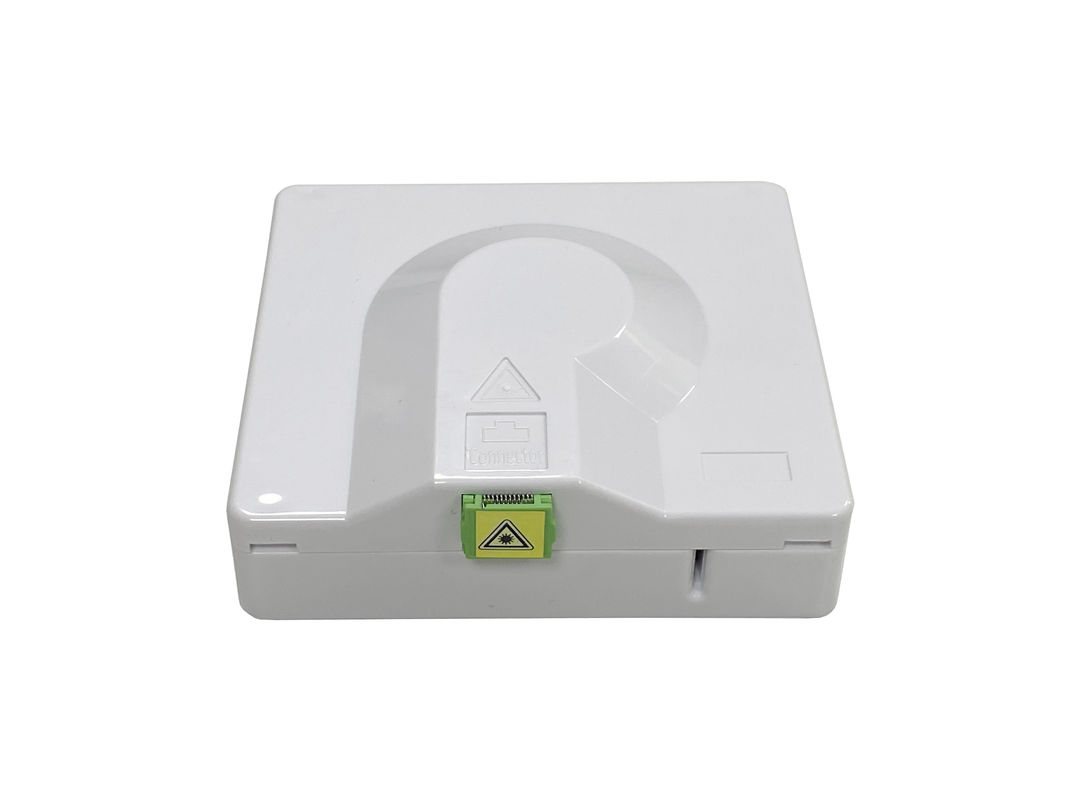

FTTH SC Invisible Fiber Optic Wall Outlet Transparent 900um G657A G657B3 40Meter



Invisible optical fibre is a specially designed system of virtually invisible fibers dedicated for Multi Dwelling Unit and Living Unit applications. Pre connected invisible fiber optic cable terminal box combines fiber optic rosette indoor wall outlet with external diameter of 0.9mm fiber optic invisible cable by a reasonable rosette design and 2 pieces of standard SC connectors. You can mounted the box with double layer 3M adhesive or mounting screws or desktop directly, which makes it the best choice for indoor wiring.



And the G.657.B3 or G657A fibre enables worry free bending around the many tight corners typically found inside buildings and rooms. The fibre can be glued to all kinds of walls with the use of specially designed micro clips.



Technical Specification

Model FTB001S-T
Dimension(L*W*H) 93*83*30mm
Max capacity 1 Core
Max qty of adapter 1 piece SC
Material ABS
Color White
Applicable cable Invisible clear fiber optic cable
Cable diameter 900um tight buffer
Cable sheath Nylon
Cable length 10, 15, 20, 25, 30, 35mtrs
Net weight 67g
Working temperature -25℃ to +60℃
Pack information
Quantity per carton 200pcs
Carton size 54*25*34.5cm
Weight per carton 14.5kg




FTTH SC Invisible Fiber Optic Wall Outlet Transparent 900um G657A G657B3 40Meter 0FTTH SC Invisible Fiber Optic Wall Outlet Transparent 900um G657A G657B3 40Meter 1FTTH SC Invisible Fiber Optic Wall Outlet Transparent 900um G657A G657B3 40Meter 2FTTH SC Invisible Fiber Optic Wall Outlet Transparent 900um G657A G657B3 40Meter 3

Application

  • FTTH project & FTTx Deployments
  • Optical LAN & WAN & CATV
  • Telecommunication Network
  • Local Area Network

Features

  • High quality engineering ABS material, white color;
  • Can store maximum 35 meters of invisible optical fiber;

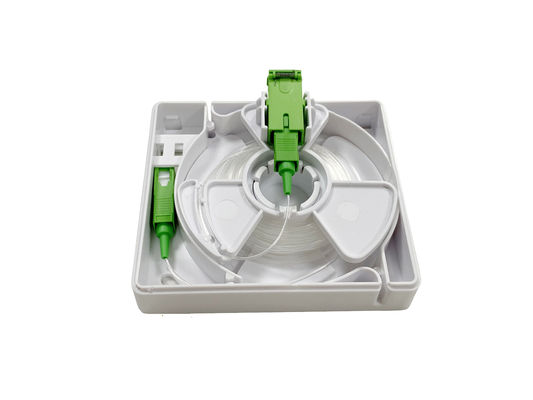

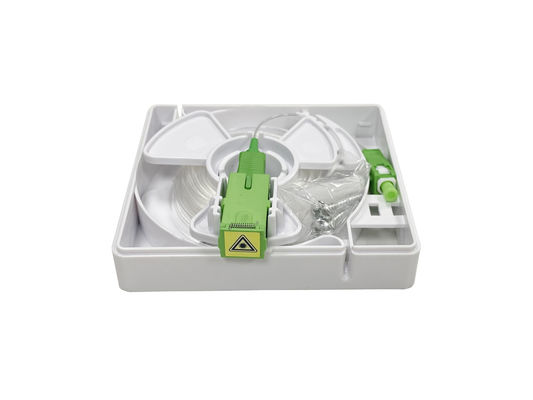

  • The winding coil on the bottom ensure to rotate and adjust the length of the optical fiber outside of the box according to the actual situation;
  • The curvature radius of the optical fiber is greater than 30mm at any position;
  • Wall mounted installation with screws;
  • Applicable for home or Work area (FTTR) fiber optic interface;
  • Applicable to SC, ST and other common models of adapter;
  • Using engineering ABS brand new raw materials;
  • With dust-proof device to prevent dust from entering, IP54 protection grade.
