Fiber Optic Termination Box
Created with Pixso. 4 Port SC Fiber Optic Termination Box ABS For Flat Drop Cable Mid Span Wall Outlet

4 Port SC Fiber Optic Termination Box ABS For Flat Drop Cable Mid Span Wall Outlet

Brand Name: YINGDA
Model Number: FTB104N
MOQ: 10pcs
Price: negotiable
Delivery Time: 7days
Detail Information
Place of Origin:
CHINA
Certification:
ISO
Material:
ABS
Color:
White
Max Capacity:
4 Cores Single Fiber
Adapter Qty:
4 SC Or LC Duplex
Cable Diameter:
Flat Drop Cable 2x3mm, 2x5mm Or Round Indoor Cable
Installation:
Wall Mounted With Screws
Packaging Details:
100pcs per carton box
Highlight:

Mid Span Wall Outlet Termination Box

,

Flat Drop Cable Termination Box

,

ABS Fiber Optic Termination Box

Product Description

4 Port SC Fiber Optic Termination Box ABS For Flat Drop Cable Mid Span Wall Outlet



The product is used in the end termination of residential building and villas to fix and splice with pigtails. It can be installed on the wall, and adapt variety of optical connection styles.



FTB104N Fiber Termination Box Features

  • FTTH indoor wall mount, home or work area
  • Embedded surface frame, easy to install and disassemble
  • Integrated with fiber cassette and cable management rods
  • Max. 4 SC/LC duplex adapter, 2pcs fusion splice holders
  • High quality ABS engineering plastic
  • Dust-proof, and ROHS proof with IP45 protection level
  • 2pc cable entrance straightly for cable in and out without cutting
  • 4pcs drop cable entrance with holders
  • Laser mark, Logo print position reserved on the lid



FTB104N Fiber Termination Box Specifications

Model FTB104N
Dimension (A*B*C) 165*90*25mm
Max.Capacity 4 core (single fiber)
Cable ports 4 ports
Cable diameter in: mm, out:2x5mm
Adapter 4 SC / LC duplex
Color white
Material ABS



FTB104N Fiber Termination Box Accessories

wall mount screws with slashes, nylone ties, heat shrink protection tubes, adapters(optional), pigtails(optional), adhesive tapes(optional),etc.



FTB104N Fiber Termination Box Details:

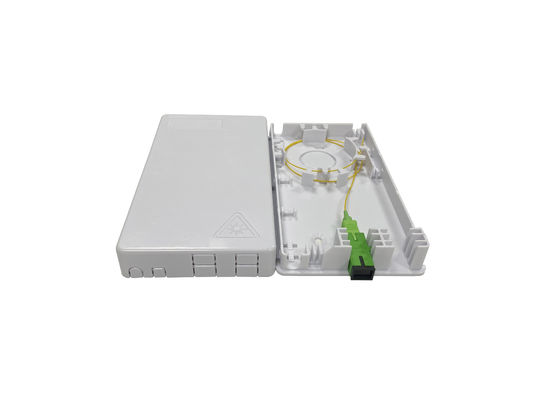

4 Port SC Fiber Optic Termination Box ABS For Flat Drop Cable Mid Span Wall Outlet 0

There are 2slots for heat shrink tubes / sleeve to fix or cable go through, it is humanity design.

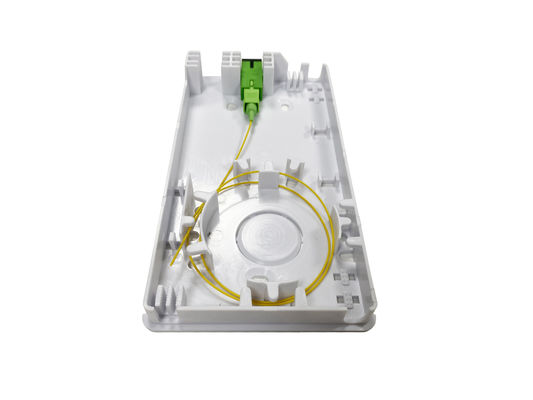

4 Port SC Fiber Optic Termination Box ABS For Flat Drop Cable Mid Span Wall Outlet 1

The main feeder cable can go in and out from the front, there are 2pcs slot for drop cable 2x3mm or 2x5mm where have teeth to keep them in place and fix tightly. Meanhile, there is one big hole for >10mm cables go ing and out without cutting, and you can use nylon tie to fix the cable in place, there are reserved hole design.

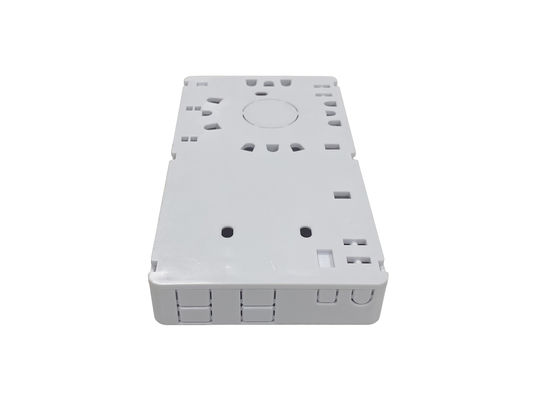

4 Port SC Fiber Optic Termination Box ABS For Flat Drop Cable Mid Span Wall Outlet 2

This 4 port wall outlet is special deisng, and large space to install adapters, connectors, fast connectors, there is large storage space, winding area for the fibers, and you can use any kind of fast connectors no matter it is 50mm, 52mm 55mm or even 60mm, it is big enough for easy operation.





FTB104N Fiber Termination Box Installation Manual Video:



https://www.jianguoyun.com/p/Dd1cPY4QpeCFChix6bsFIAA
