Mpo Patch Cord Indoor Patch Cord Ftth Fiber Optic Patch Cord
  • name
  • name
  • name

Mpo Patch Cord Indoor Patch Cord Ftth Fiber Optic Patch Cord

MOQ: 10pc
Price: 0.18USD-4.29USD
Delivery Period: 5-8days
Payment Method: D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 100000/month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
no
Certification
ISO CE
Model Number
no
Adapter Type:
MPO
Application:
Indoor
Fiber Count:
12/16/24/32/48/64
Fiber Type:
Single-mode/Multi-mode
Highlight:

Mpo Indoor Patch Cord

,

64Fiber Optic Patch Cord

Product Description

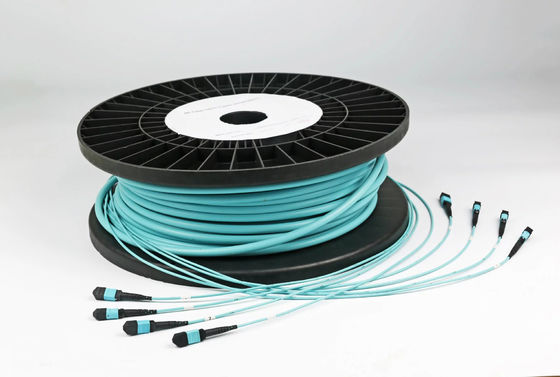

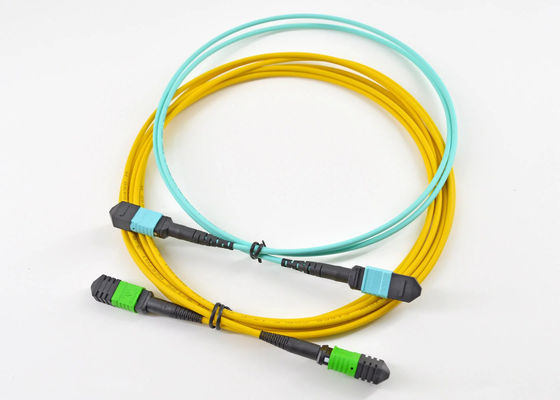

MPO / MTP Fiber Optic Patch Cable



MPO/MTP fiber optic patch cable consists of multi core fiber optic cable and corresponding 4/8/12/24 core high density MPO MTP connector. The connector might be female or male with guide pin. The cable from 4-144core, single mode or multi mode, the single mode fiber including G652D G657A G657A2, the multi mode fiber including 62.5/125um. 10G OM2/OM3/OM4, OR BENDING INSENSITIVE 10G multi mode cable.



Yingda is with strong MPO MTP product design and manufacturing ability, we can provide products with pigtails to customer requirements. All products delivered with excellent performance and reliability.Most of our products are SENKO brand, or USCONEC brand. If not customized, will use MADE IN CHINA connectors parts, please kindly note.





Features

Customized, high adaptability

Different fiber cores and cable structure for different installation

Improved and simplified cabling, reduce cabling spacing

Complied with IEC61754-7, Telcodia GR-1435- CORE, RoHS



Application

Data Center and 40Gb/s Applications

Fiber to the home ( FTTH )

High density fiber optic cable management



MPO Connector Specification





Insertion loss (dB) SM standard SM Elite MM standard MM Elite
Return loss (dB) ≤0.7 ≤0.35 ≤0.7 ≤0.35
Durability (dB) ≥60 ≥60
Tensile strength (kgf) 10
Working temperature (°C) -20~+70
Measurement wavelength (nm) 1310 850
Geometry Parameters
Item X-axis Y-axis
Min Max Min Max
Radius of curvature (mm) 500 - 50 -
Polishing angle 0-0.2 0+0.2 8-0.2 8+0.2
Item Min Max
Fiber height (nm) 1000 3000
Max fiber height error (nm) 600
Adjancent fiber height error (nm) -300 +300
Avg. Fiber height error(nm) -300 +300
Central concave (nm) 300



LC SC FC fiber optic connector Specification



Fiber mode Single mode   Multi mode
Connector polishing PC APC PC
Insertion loss (dB) ≤0.3
Return loss (dB) ≥50 ≥60 ≥35
Repeatability ≤0.2 1000times mating
Working temperature (°C) -40 ~+85
Measurement wavelength (nm) 1310 850
