Fiber Optic Termination Box
Created with Pixso. Sliding Drawer Type Fiber Optic Patch Panel 19 Inch Metal Material For Terminal Wiring

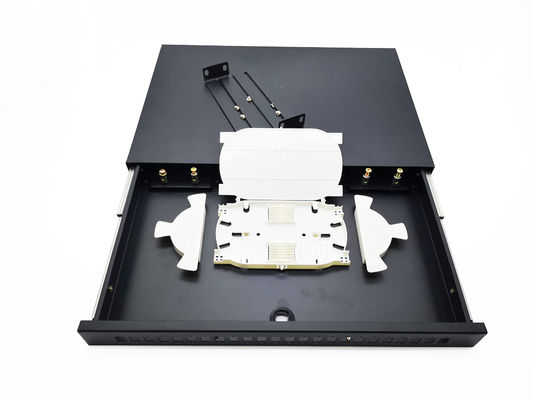

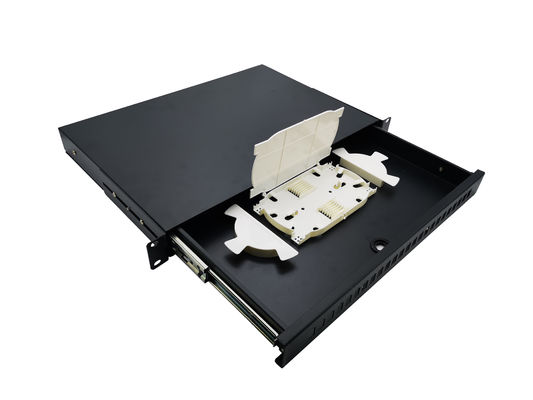

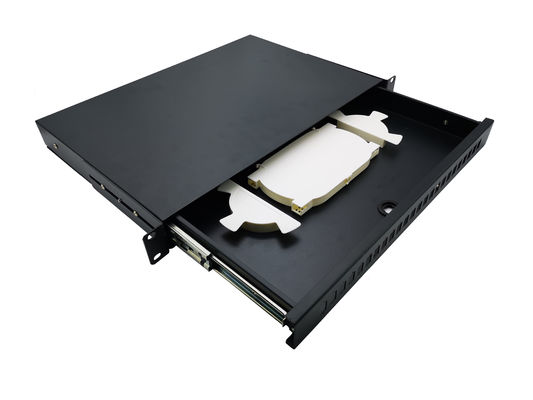

Sliding Drawer Type Fiber Optic Patch Panel 19 Inch Metal Material For Terminal Wiring
  • Name
  • Name
  • Name

Sliding Drawer Type Fiber Optic Patch Panel 19 Inch Metal Material For Terminal Wiring

Brand Name: no
Model Number: no
MOQ: 10pc
Price: 0.18USD-4.29USD
Delivery Time: 5-8days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO CE
Adapter Type:
LC/SC/FC/ST
Application:
Indoor
Color:
Black
Fiber Type:
Single-mode And Multi-mode
Material:
Metal
Size:
19 Inch
Supply Ability:
100000/month
Highlight:

Sliding Drawer Fiber Optic Patch Panel

,

Terminal Wiring Fiber Optic Patch Panel

Product Description

Sliding Drawer Type Fiber optic patch panel are the auxiliary equipment for terminal wiring in optical fiber transmission communication network, which is suitable for indoor optical cable splice directly and branch connection, and protective the fiber.



Features

  • Applicable in the termination and 19'' standard structure,
  • Rack mount in optical distribution frame ODF
  • Suitable for FC ,SC, ST, LC, E2000 adapters
  • 1.2mm Cold rolled steel sheet, with electrostatic spraying
  • Metal sliding tray of the splice tray and bottom, easy and fast to operate without open the cover
  • Clip cover design, dust proof and whole box closed not in operation
  • Total front operation with cable clamps and routing area, large fiber storage
  • 4 Cable entry ports at back, diameter can be customized, normally 20mm
  • Box color can be customized, white, black,etc.
  • Silk print or laser mark both available.
  • All the metal parts are stainless steel for long life span guarantee.



Box Dimension

Model Dimension(W*D*H)mm Max capacity(cores)
GPSM-1U-SC24 482*300*1U 24
GPSM-1U-FC24 482*300*1U 24
GPSM-1U-2SC24 482*300*1U 48
GPSR-2U-SC48 482*300*1U 48
GPSR-2U-FC48 482*300*2U 48
GPSR-3U-SC96 482*300*3U 96
GPSR-4U-SC144 482*300*4U 144



Technical Specification

Width 482 mm
Deepth 300 mm
Height 1U, 2U, 3U, 4U, etc
Max capacity 144 cores
Material 1.2 mm cold rolled steel SPCC
Cable entry port 4 round port with rubber φ20mm
Cable exit port SC FC LC ST E2000, etc adapter port
Adapter quantity 144 pcs
Material coating Powder
Operating temperature -10~+85°C
Standards TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-C, CEA/EIA-310-E, ANSI/TIA/EIA-606-A, GR-449-CORE, RoHS
IP Rating IP20
Color White, black





Connector specification

Insertion loss <0.3dB
Return loss >65dB APC, >50dB UPC, >30dB PC
Mating durability 500 times
Wavelength 850-1550nm
Standards IEC61300, IEC61754, ROHS, etc
