ISO Fiber Optic Termination Box Splitter Module Cassette Box 1*5 Mini PLC Splitter Box

MOQ: 100PCS
Price: 0.18USD-4.29USD
Standard Packaging: 1 pc / box, 60 pcs / carton shipping box
Delivery Period: 5-8 working days
Payment Method: Western Union, T/T, MoneyGram
Supply Capacity: 100000 pcs / month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
FTB106A
Capacity:
5cores Single Fiber Bunchy
Cable Inport:
1PCS
Dimension:
86*115*22mm
Load With:
1*5 PLC Splitter
Material:
ABS
Color:
White
Application:
Fiber To The Home FTTH Or Indoor Outdoor Use
Adapter:
6 Pcs SC Simplex Adapter, LC Duplex Adapter
Cable Output:
7-10mm Or 2.0*3.0mm FTTH Drop Cable
Highlight:

Fiber Optic Termination Box Splitter Module

,

1*5 PLC Splitter Box

,

1*5 Mini PLC Splitter Box

Product Description





YINGDA Planar lightwave circuit (PLC) splitter is a type of optical power management device that is
fabricated using silica optical waveguide technology. It features small size, high reliability,
wide operating wavelength range and good channel-to-channel uniformity, and is widely used
in PON networks to realize optical signal power splitting.

YINGDA provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

MODEL: FTB106A



Fiber To The Home, FTTH is a transmission method for optical fiber communication. This box directly connect the fiber to the subscriber's home (user desired place). The optical fiber communication mode and strategy is different with FTTN, FTTC, HFC (Hybrid Fiber Coaxial) which are all depend on metal wires including twisted pair and coaxial cable.FTTH is used as the last one kilometer information transmission.



Features

  • Wall-mounted and rack mounted application
  • Max capacity 5fibers
  • Environmental Temperature:－25℃～40℃;
  • Fiber to the Home (FTTH) home and outdoor use
  • Drop cable 2*3.0mm figure-8 FRP LSZH and fast field installation connector install
  • With rotated transparent cover, port vertically downward to avoid causing personal injury.



Specifications



Operating Wavelength (nm) 1260~1650
Split Ratio 1*5
Fiber Type G657A1
Insertion Loss (dB)
(S/P Grade)

Max 2.2
Loss Uniformity (dB) 0.8
Return Loss (dB)
(S/P Grade)		 50/55
Polarization Dependent
Loss(dB)		 0.2
Directivity (dB) 55
Wavelength Dependent
Loss(dB)		 0.3
Temperature Stability
(-40~85 °C)(dB)		 0.5
Operating Temperature (°C) -40~85
Storage Temperature (°C) -40~85
Module Box Dimension (mm)
(L×W×H)		 86*115*22mm





More pictures

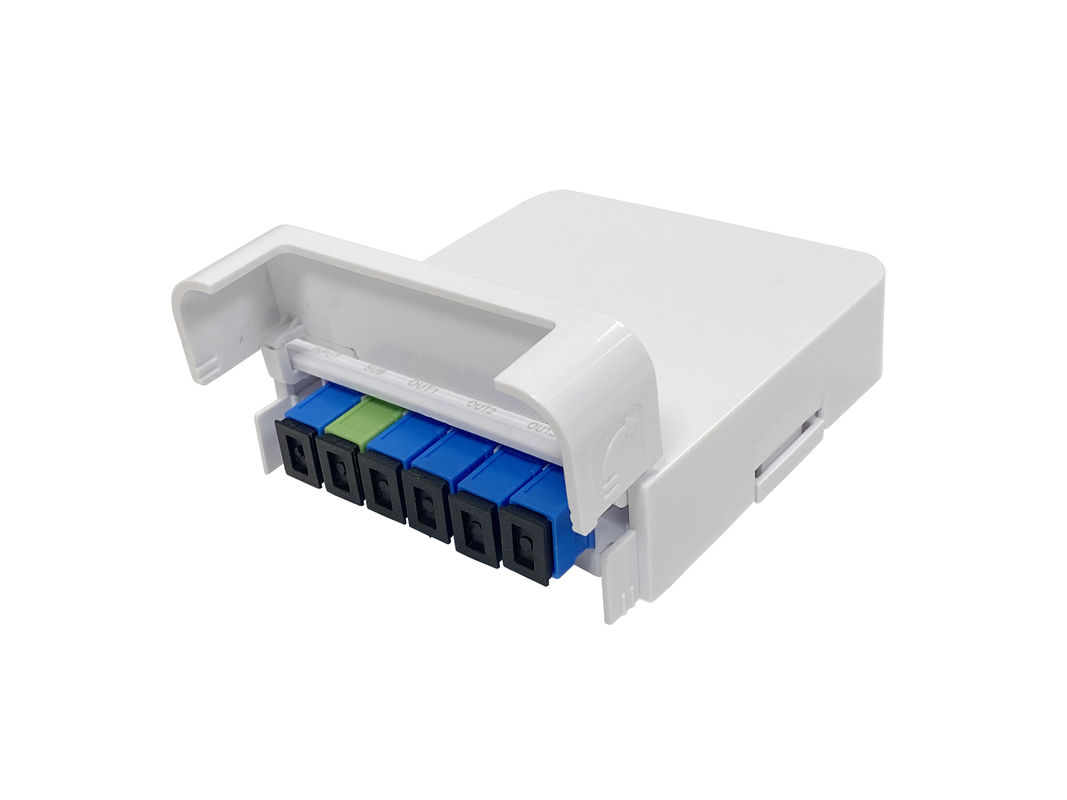

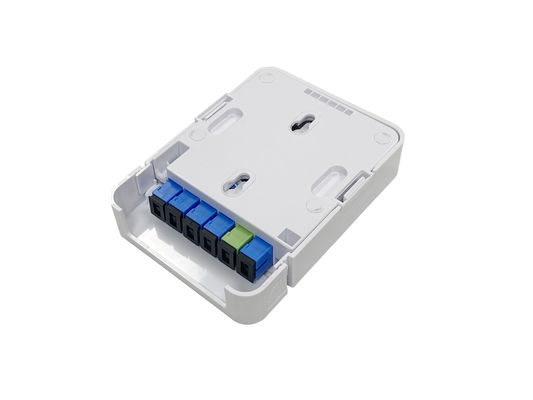

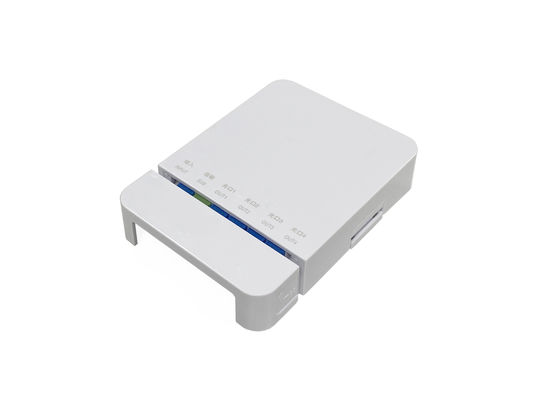

                            box top view                                                             box back view

ISO Fiber Optic Termination Box Splitter Module Cassette Box 1*5 Mini PLC Splitter Box 0      ISO Fiber Optic Termination Box Splitter Module Cassette Box 1*5 Mini PLC Splitter Box 1
ISO Fiber Optic Termination Box Splitter Module Cassette Box 1*5 Mini PLC Splitter Box 2ISO Fiber Optic Termination Box Splitter Module Cassette Box 1*5 Mini PLC Splitter Box 3

ISO Fiber Optic Termination Box Splitter Module Cassette Box 1*5 Mini PLC Splitter Box 4ISO Fiber Optic Termination Box Splitter Module Cassette Box 1*5 Mini PLC Splitter Box 5

  • 1x fiber tray have enough space for fiber optical cable routing and storage.
  • there is a place to fix the steel tube which can use PLC splitter.
