PP+GF Fiber Optic Distribution Box 48cores Fiber Optic Splitter Box
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cable Entry | 1mid Span, 2round Ports | Cable Diameter | 10-17.5mm，8-17.5mm |
|---|---|---|---|
| Max.Capacity | 48cores=4*12F Single Fiber | Adapter Quantity | 24SC/48LC |
| Splitter Quantity | 1x16 Or 3pc 1x8 Steel Tube | Material | PP+GF (Modified Polymer Plastic + Glass Fiber) |
| High Light | PP GF Fiber Optic Distribution Box,48cores Fiber Optic Splitter Box |
||
Product Description

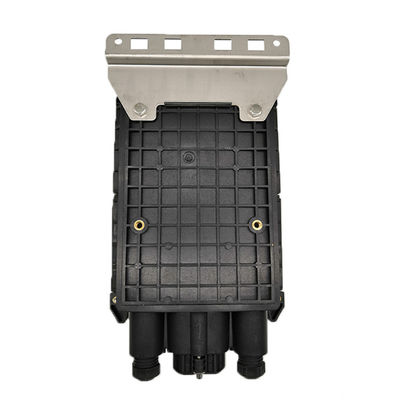

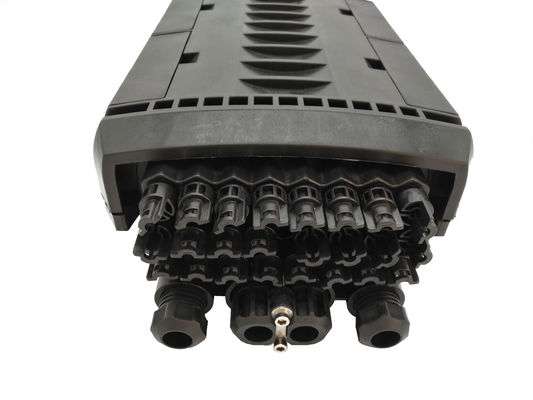

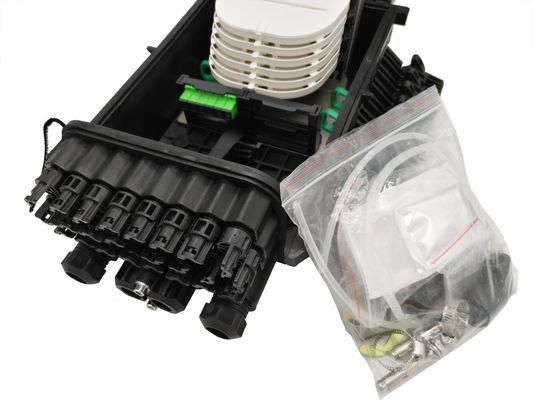

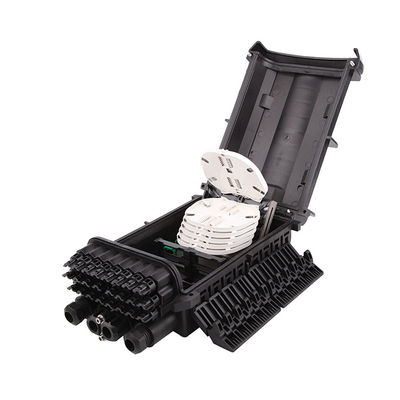

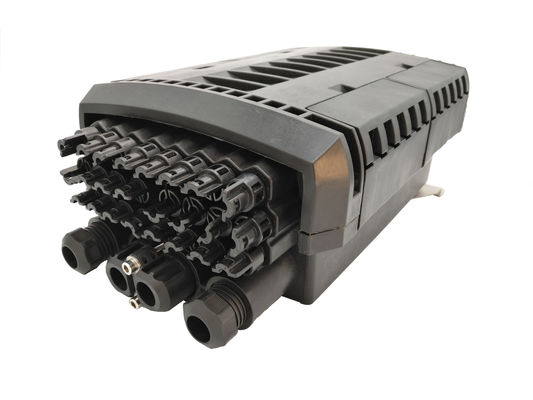

FDB0224F Fiber Optic Distribution Box
FDB0224F is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
- Box is total enclosed with screw rod + 4 brackets
- High quality PP+GF plastic, with strength strips on lid or bottom
- Anti-UV, Ultra violet and rainfall resistant, protection class IP68
- Dis-mountable adapter panel max. 24SC, 4trays max. fusion 48cores
- Cable clamp and fixture for entry and exit, and large redundant fiber storage space, reasonable bend radius
- Support mid span termination, easy operation and installation
Specification
| Model | FDB0224F | |
| Dimension (A*B*C) | 385*245*155mm | |
| Max.Capacity | 48cores=4*12F single fiber | |
| Cable entry | 1mid span, | 2round ports |
| Cable diameter | 10-17.5mm | 8-17.5mm |
| Cable exit | 24 drop cable ports: 2mm, 4mm, 7mm | |
| Adapter quantity | 24SC | |
| Splitter quantity | 1x16 or 3pc 1x8 steel tube | |
| Material | PP+GF (Modified polymer plastic + Glass fiber) | |
Pack information
| Net weight | Inner box | Quantity / carton box | Carton box size | Gross weight/carton box |
| 4.2Kg | cm | 4pcs | 53*43*34cm | 19.20kg |
