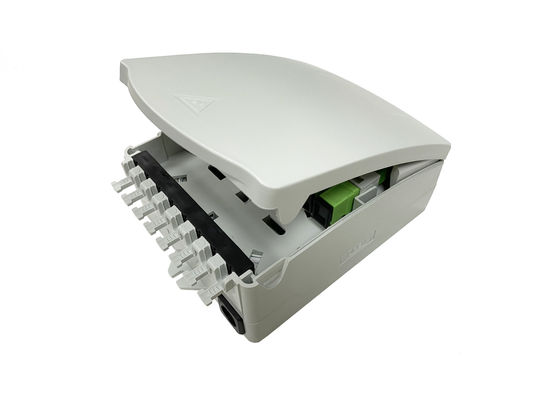

8 Ports Fiber Optic Terminal Box ABS PC Straight-Through FTTH Indoor NAP Box

MOQ: 10pcs
Price: 0.18USD-4.29USD
Standard Packaging: 1 pc / carton box, 20 pcs / master box
Delivery Period: 5-7 working days
Payment Method: T/T, Western Union
Supply Capacity: 50000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
yingda
Certification
ISO, ROHS, SGS
Model Number
FTB008D
Material:
ABS+PC
Color:
White
Product Name:
Fiber Optic Box
Application:
Ftth Indoor Use
Installation:
Wall Mount
Drop Cable Size:
2*3 2*5 Mm Flat Drop Cable
Adapter Qty:
8 Pcs SC/LC DX Without Flange Adapter
Splitter Qty:
1pcs 1x8 Steel Tube Splitter
Waterproof Grade:
IP55
Max Capacity:
12cores
Highlight:

ABS PC Fiber Optic Terminal Box

,

Straight Through NAP Box

,

Indoor NAP Box

Product Description

Factory price 8 Ports Fiber Optic Terminal Box ABS PC Straight-Through FTTH Indoor NAP Box



Straight-through fiber optic cable means that the fiber optic cable in and out of the box does not have to be cut, directly part of the fiber optic cable is fused or terminated inside the panel, and the rest of the fiber optic cable continues to the next fiber optic node for use. Save wiring costs, construction is convenient for quick connection, the number of cores is relatively large, more suitable for use between floors.



8 port Fiber Optic Splice Box Specification

Model FTB008D
Dimension (W*D*H)

151.8*105.7*59mm
Max.Capacity 12 core (dual fiber)
Cable ports 2 in, 8out
Cable diameter In:Φ10mm; out 2x5mm
Splitter quantity 2pcs 1x4 or 1pc 1x8 PLC steel tube
Splice tray quantity 1pc
Adapter 8 SC



Plastic Optical Fiber Enclosure Features

  • Dust proof, RoHS proof with IP-55 protection level
  • Integrated with 2 splice cassette and cable management rods.
  • Manage fiber in a reasonable fiber radius condition
  • Easy to maintain and extend the capacity
  • Fiber bend radius control more than 40mm
  • Suitable for the fusion splice or mechanical splice
  • Three layer design, large area for efficient cable management and storage
  • 8 ports exit for drop cable 2*5mm
  • 2pcs 1:4 or 1pc 1:8 splitter with steel tube slots on the bottom
  • Distribution cable can go through the box without cut, best choice for ftth indoor construction.



​



Product Details:

1. Laser mark inside of the cover

2. Flip design of 2nd&3rd layer

3.Fusion splice tray fix on botton

4.Cable outlet with nylon tie fixtion

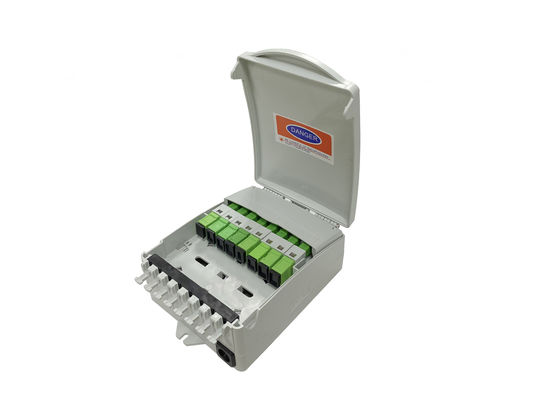

8 Ports Fiber Optic Terminal Box ABS PC Straight-Through FTTH Indoor NAP Box 0

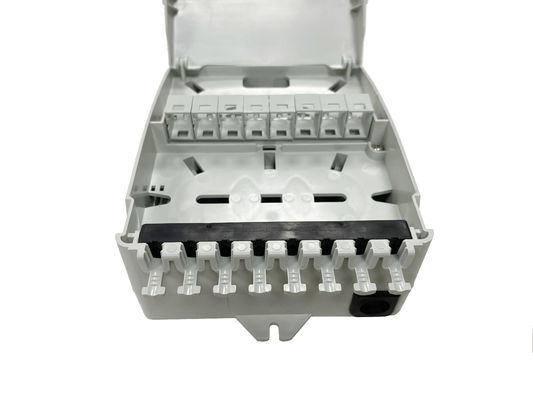

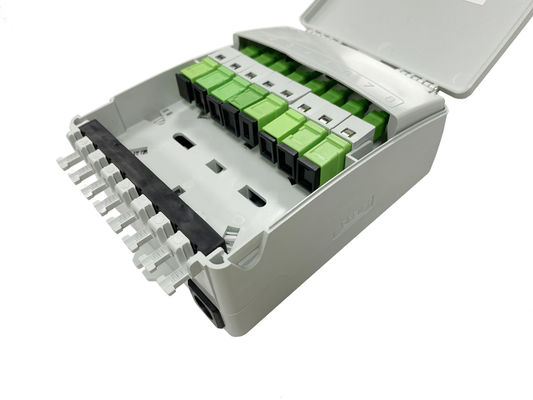

Adapter Plate

Adapter cover&holder is movable, easy and fast for operation

8 Ports Fiber Optic Terminal Box ABS PC Straight-Through FTTH Indoor NAP Box 1

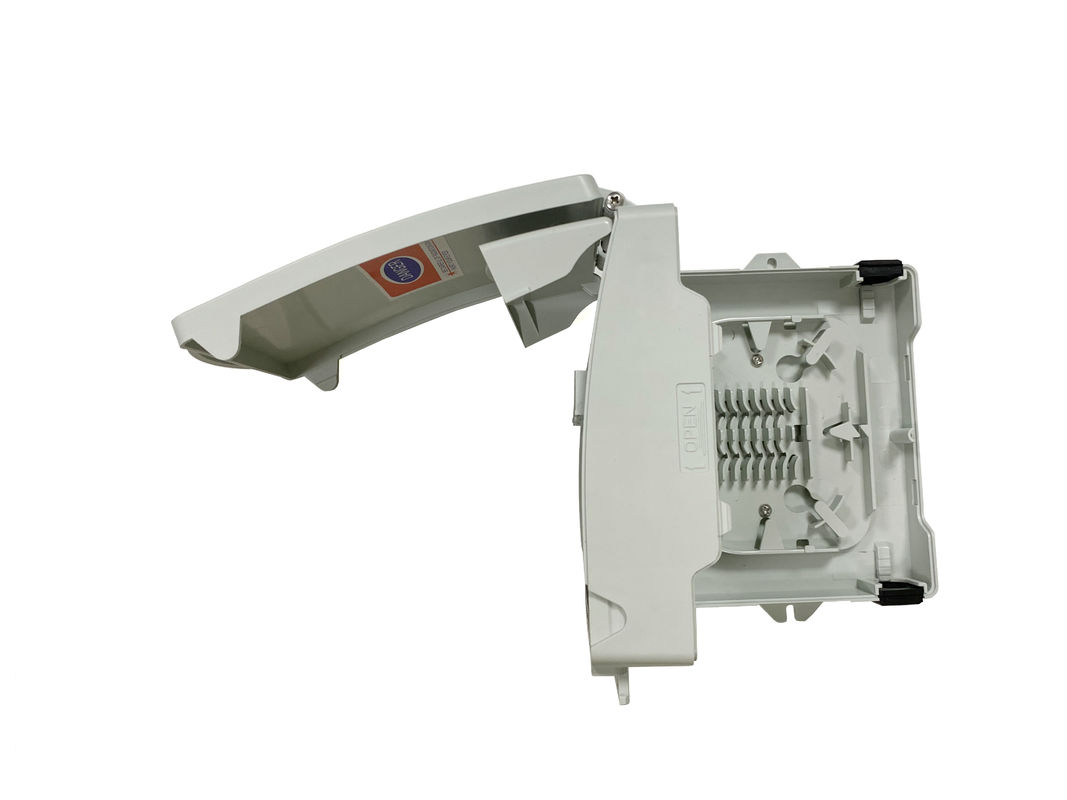

Three Layer Design

Distribution,Splitter, Fusion each 1 layer. No interference with each other, No obstruction.

Fast operation and convenient to use



8 Ports Fiber Optic Terminal Box ABS PC Straight-Through FTTH Indoor NAP Box 2







8 Ports Fiber Optic Terminal Box ABS PC Straight-Through FTTH Indoor NAP Box 3



8 Ports Fiber Optic Terminal Box ABS PC Straight-Through FTTH Indoor NAP Box 4



8 Ports Fiber Optic Terminal Box ABS PC Straight-Through FTTH Indoor NAP Box 5

8 Ports Fiber Optic Terminal Box ABS PC Straight-Through FTTH Indoor NAP Box 6

8 Ports Fiber Optic Terminal Box ABS PC Straight-Through FTTH Indoor NAP Box 7

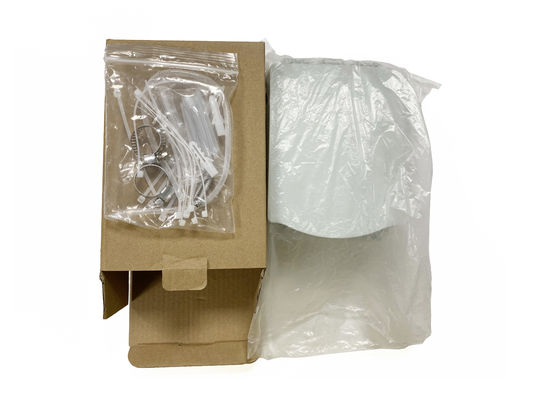

Fiber Optic Splitter Box Standard Accessory:

wall mount kits, heatshrink protection tube,nylon tie, sprial tube for 900um fibers,etc

8 Ports Fiber Optic Terminal Box ABS PC Straight-Through FTTH Indoor NAP Box 8



Fiber Optic Cable Terminal Box Pack information

Net weight Inner box Quantity / carton box Carton box size Gross weight/carton box
561g cm 20pcs 49*32*33cm 10.55kg





Uncut Optical Fiber Cable Box Installation Method; WALL MOUNT

8 Ports Fiber Optic Terminal Box ABS PC Straight-Through FTTH Indoor NAP Box 9
