Fiber Optic Mulitmode fiber Patch MM62.5 / 125um OM1 PVC 2.4mm , Fiber Jumper Cables
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector | SC To LC Fiber Optic Patch Cord | Fiber Count | Simplex |
|---|---|---|---|
| Insertion Loss | < 0.3 DB | Return Loss | >35dB Upc |
| Fiber Length | 10 Meter | Cable Diameter | 2.4 Mm |
| Cable Color | Orange | Connector Color | Blue |
| Fiber Type | Multimode 62.5/125um | ||
| High Light | fiber optic patch cable,multimode patch cord |
||
Product Description

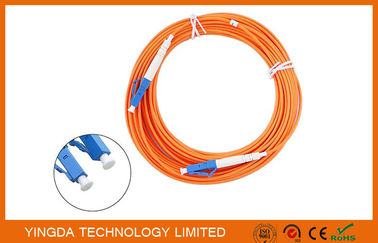

SC to LC Fiber Optic Patch Cable MM62.5/125um OM1 Mulitmode PVC 2.4mm, SC / LC Patch Cord
Features
- Low insertion loss
- Repeat ability
- High return loss
- Mutual Insert performance
- Good temperature stability
- Strong tensile property
- Cheap multimode fiber price,short distance transmission
- Wide transmission bandwidth
Fiber optic patch cord also called jumper, it is the connection cable between the equipment and fiber
optic cabling wiring. It has a protective layer jacket, generally used in optical transceivers and terminal
boxes.
Fiber jumper (also called optical fiber connector) have connectors on both ends, used to achieve the
optical path movable connected; If only one end with connectors called pigtail. Optical fiber jumper
(Optical Fiber Patch Cord/Cable) and similar to coaxial cable, but no have net shielding layer. The
center is the light transmission glass core(ferrule). In multimode fibers, the diameter of the core is
50 mu m~65 mu m, roughly equal to the human hair thickness. While the single mode fiber core
diameter is 8u m~10u m. The core is surrounded by a layer of glass coating whose refractive index
is lower than the core, in order to make the optical fiber holding in the core. Outside is a thin layer
of plastic jacket to protect the coating.
According to the transmission media Fiber jumper can be divided into single mode, multimode optical
fiber jumper, and other transmission media such as plastic jumper. According to connector type, it can
be divided into: FC jumper, ST jumper, SC jumper, LC jumper, MTRJ patch cord, MPO patch cord jumper,
also MU, SMA, FDDI, E2000, DIN4 D4 jumper and so on. Most commonly used is FC-FC, FC-SC, FC-LC,
FC-ST, SC-SC, SC-ST fiber optic patch cord.
Specification
|
Item |
Standard,Master |
|
Connector type |
LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC, FC/APC,LC/APC.MU/APC |
|
Duplex MTRJ/Female, MTRJ/Male |
|
|
Fiber Type |
|
|
9/125 SMF-28 or equivalent (Singlemade) OS1 |
|
|
50/125, 62.5/125 (Multimode) OM2&OM1 |
|
|
50/125, 10G (Multimode) OM3 |
|
|
Cable Type |
Simplex, Duplex (Zipcord) |
|
Φ3.0mm, Φ2.0mm, Φ1.8mm |
|
|
Φ1.6mm PVC or LSZH |
|
|
Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
|
|
Polishing Manner |
UPC,SPC,APC (8°& 6°) |
|
Insertion Loss |
≤ 0.1dB (For Singlemode Master) |
|
≤ 0.25dB (For Singlemode Standard) |
|
|
≤ 0.25dB (For Multimode) |
|
|
Tested by JDS RM 3750 |
|
|
|
UPC ≥ 50dB |
|
SPC ≥ 55dB |
|
|
APC ≥ 60dB (typ.65dB) |
|
|
Tested by JDS RM3750 |
|
|
Repeatability |
±0.1dB |
|
Operating temperature |
-400C to 850C |
|
(For Singlemode) |
Ferrule Endface Radius |
|
7mm ≤ R ≤ 12mm (For APC) |
|
|
10mm ≤ R ≤ 25mm (For Standard) |
|
|
Apex Offset ≤ 30 μm (For Master) |
|
|
Apex Offset ≤ 50 μm (For Standard) |
|
|
Undercut -50nm ≤ U ≤ 50nm |
|
|
Tested by DORC ZX-1 |
Application
- Fiber communication system
- Fiber access network
- Data transmission
- CATV
- LAN
- Test equipment
- Optical fiber sensor
Order information
1. Connector type: FC, ST, SC, LC, MU, MPO, E2000, MTRJ, SMA,
2. End face: UPC PC APC
3. Cable diameter: Ф0.9mm, Ф1.6mm,Ф1.8mm, Ф2mm, Ф2.4mm, Ф3mm.
4. Fiber count: simplex, duplex, 4 core, 6 core, 8 core, 12 core or customer specified
5. Fiber types: G652B, G652D, G655, G657A1, G657A2, 50/125,um 62.5/125um,
OM3 (50/125-150), OM4 (50/125-300) etc.
6. Connector housing color: Blue (single mode PC, UPC connector), beige, grey (multimode connector),
green (APC connector), aqua (OM3)
7. Boot color : grey,blue, green, white, red, black, green
8. Cable jacket: PVC, LSZH
9. Cable length: customized
