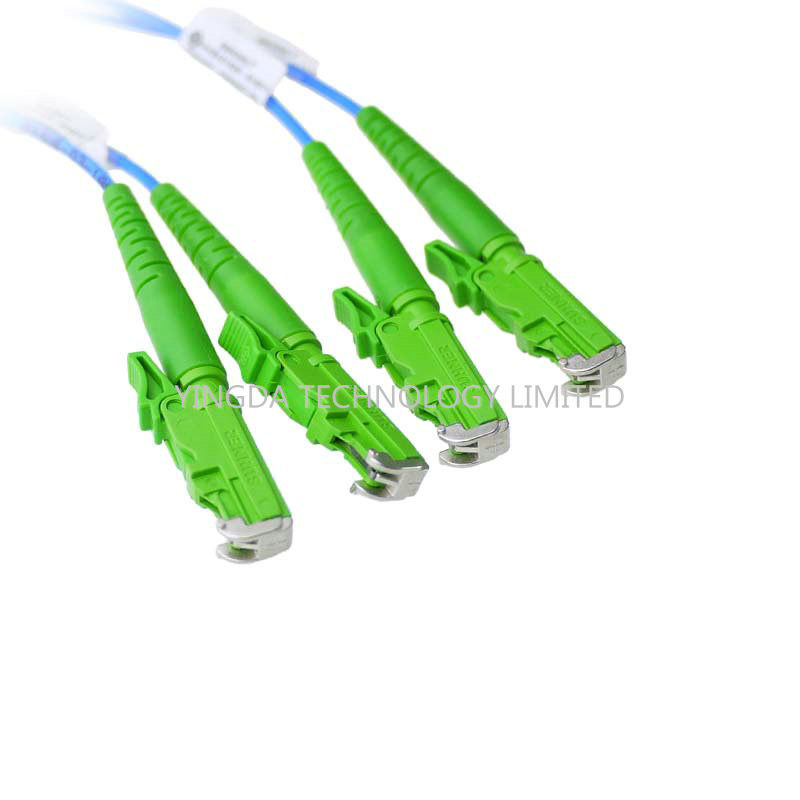

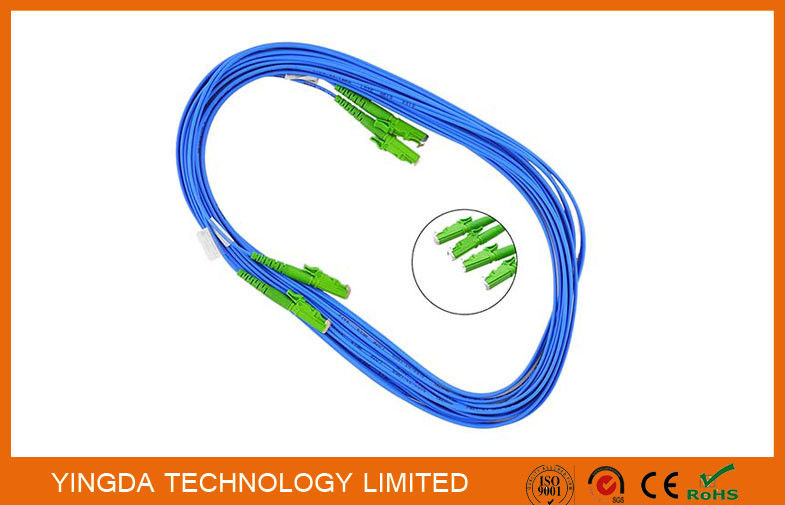

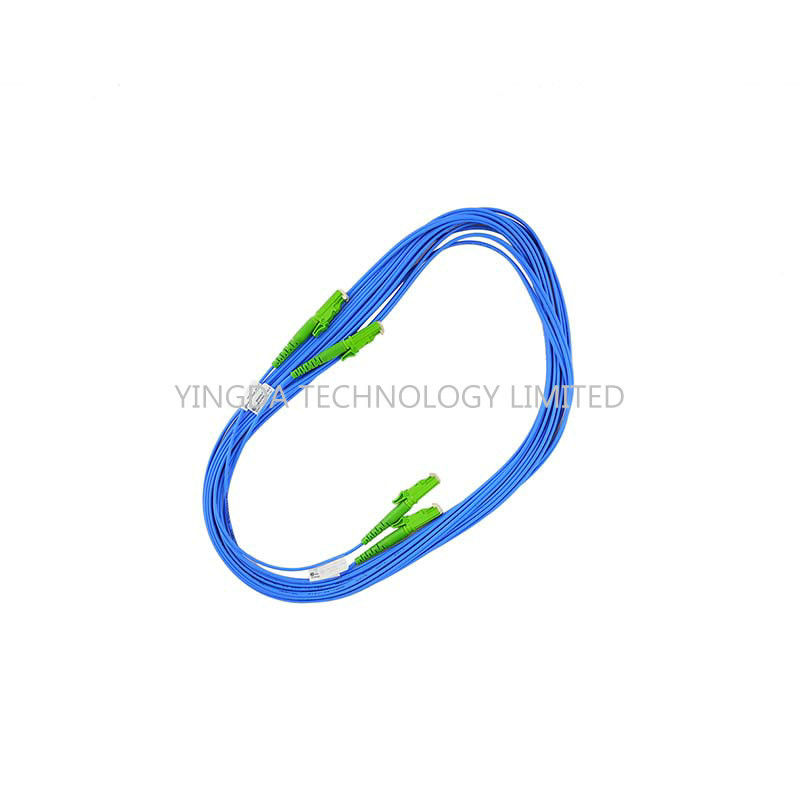

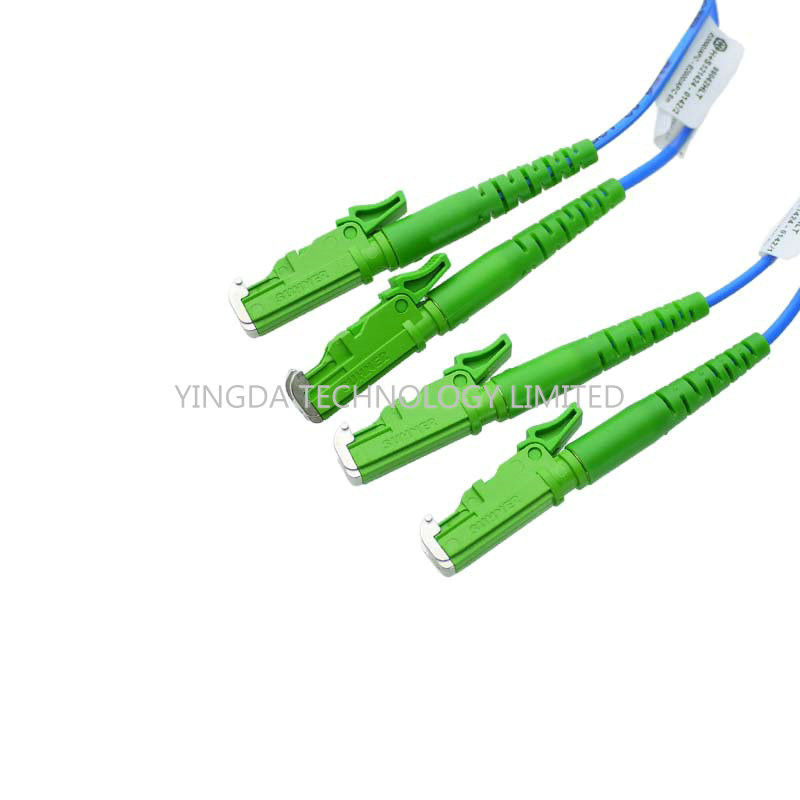

E2000 / APC - E2000 / APC Fiber Optic Patch Cord Singlemode Duplex Blue Cable LSZH

E2000 / APC - E2000 / APC Fiber Optic Patch Cord Singlemode Duplex Blue Cable LSZH

  • High Light

    fiber optic jumper

    ,

    multimode patch cord

  • Connector
    E2000/APC
  • Fiber Count
    Duplex
  • Insertion Loss
    < 0.3 DB
  • Return Loss
    > 55 DB
  • Fiber Length
    1meter
  • Cable Diameter
    0.9,2.0,3.0mm
  • Cable Color
    Blue
  • Connector Color
    Green
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS ROHS
  • Model Number
    YDPC-E2A-DX-03
  • Minimum Order Quantity
    500 pcs
  • Price
    negotiable
  • Packaging Details
    1 pc / plastic bag
  • Delivery Time
    5-8days after payment
  • Supply Ability
    15,000 pcs / day

E2000 / APC - E2000 / APC Fiber Optic Patch Cord Singlemode Duplex Blue Cable LSZH

E2000 / APC - E2000 / APC Fiber Optic Patch Cord Singlemode Duplex Blue Cable LSZH



Features

  • Full steel armoured protection from ceramic ferrule
  • High tensile resistance & anti-pressure
  • Strong anti- ultraviolet radiation
  • High flexibility



Fiber optic patch cord is one of most commonly used components in fiber optic network. fiber optic

patch cords sometimes is also called fiber optic jumper or fiber optic patch cables. generally there

are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic

patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic

cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket

color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange color.

Fiber optic patchcord are used for linking the equipment and components in the fiber optic network ,

they are with various kinds of fiber optic connector types. the fiber optic patch cord types are classfied

by the fiber optic connector types.for example,we name LC fiber optic patch cord because this cable is

with LC fiber optic connector.there are PC,UPC,APC type fiber patch cord, they are different because

of the polish of fiber connectors.

Fiber optic patch cord are with various kinds of cables,PVC, Riser, Plenum, OFNR,OFNP,LSZH (LSOH),

10 Gig Aqua, there are simplex fiber optic patch cord and duplex fiber optic patch cord and multi fiber

cable assemblies,and there are ribbon fan out fiber cable assemblies and bundle fiber optic cable

assemblies.Typical fiber optic patch cord cable diameter can be 0.9mm,2mm,or 3mm.







Application

  1. FTTH
  2. Defense communications
  3. Outdoor Emergency
  4. Buildings without protective cabling



Specification



Jacket

Riser (OFNR), Plenum (OFNP), Low Smoke Zero Halogens (LSZH), PVC

Diameter

0.9mm (9/125um), 1.6mm, 1.8mm, 2.0mm, 3.0mm

Jacket Colors

Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow

Connector

FC,SC,ST,MU,LC, D4,DIN,E2000 MT-RJ,MPO FC,SC,ST,MU, LC,SMA,E2000 MT-RJ,FDDI, MPO,ESCON

Insertion Loss (dB)

≤ 0.2 (UPC)

Exchangeability

≤ 0.2 dB

Tensile Strength

≤ 0.2 dB ( 0 to15 Kgf )

Temp. Range

(- 40 to +80 degree centigrade)

Polish

UPC APC PC

Cable type

Singlemode, multimode

Apex offset

≤50 um, ≤100 um

Fiber Spherical Height

 -90 nm , +50 nm

Angular Offset

8°± 0.5°C (APC)
