FTTX Fiber Optic Termination Box Indoor Panel For Protection And Management
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Metal/Plastic | Port | SC/LC |
|---|---|---|---|
| Capacity | 4 Ports (4 SC SM,8LC/8SC DX) | Color | White(default) |
| Installation | Wall / DIN-Rail Mounting | Size | H X W X D = 80 X 80 X 31(mm) |
| High Light | FTTX Fiber Optic Termination Box,Fiber Optic Termination Box Indoor Panel |
||
Product Description

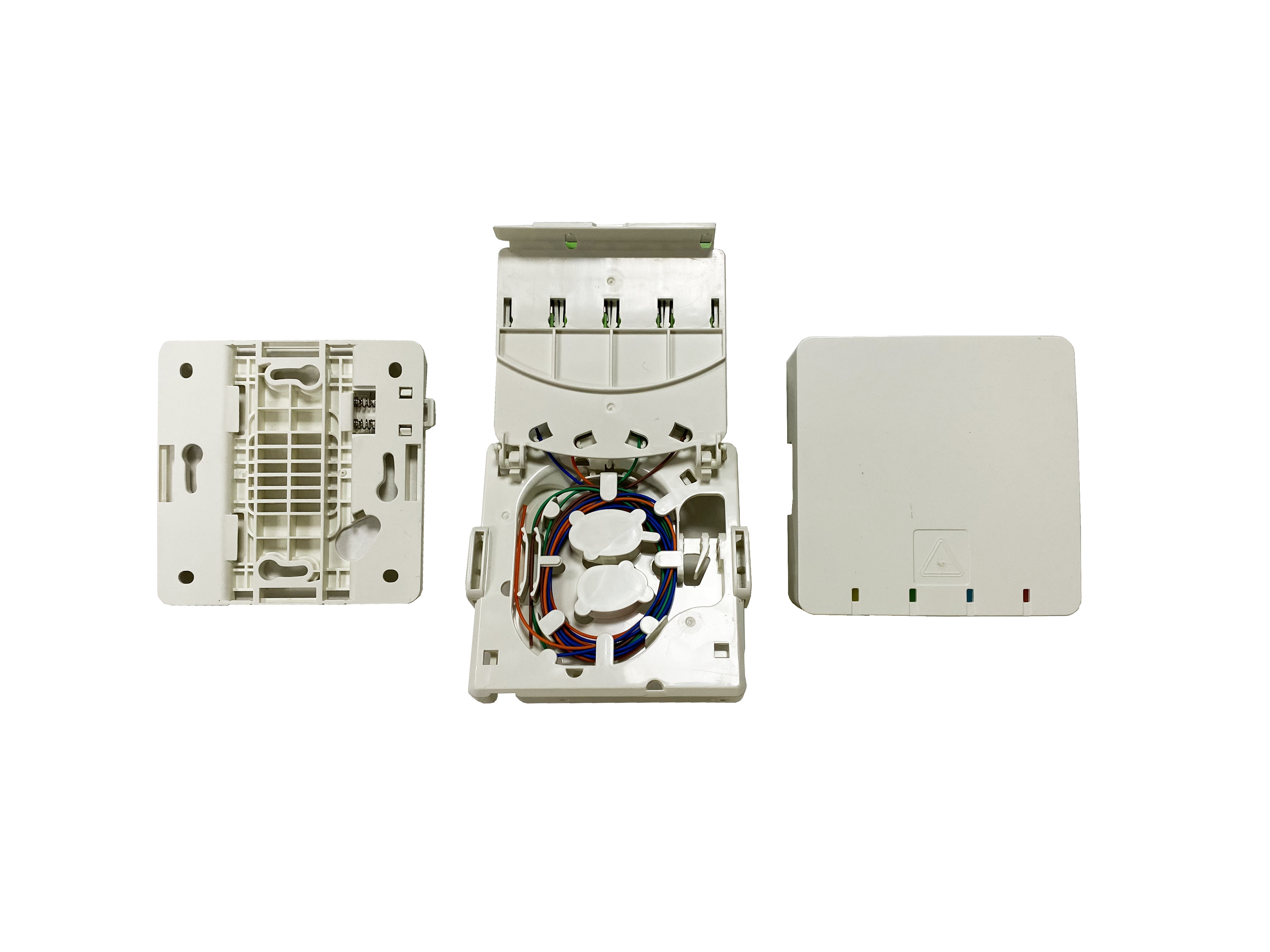

FRB-4D Fiber Socket
1,Description:
FRB-4D Fiber Socket is specially designed for FTTH (Fiber to The Home) for indoor application. It is with a protective door for dust proof, and meanwhile it provides protection and management for the FTTx network building.
- Specification:
1) small size and simple operation
2) Flexible termination methods: splicing + pigtail, FTTH fast connector on site.
- Applications:
- FTTH Access Network
- Telecommunication Network
- CATV Networks
- Local Area Networks
- Wall / DIN-Rail Mounting
4,Configuration Table:
| Model | FRB-4D |
| Material | PC+ABS |
| Colour | White(default) |
| Size (Pic 1) | H x W x D = 80 x 80 x 31(mm) |
| Max. Adaptor Capacity | 4 Ports (SC) |
| Empty Weight | 70 G |
| Loaded Weight | 90 G |
Table 1 Model and configuration
Pic 1

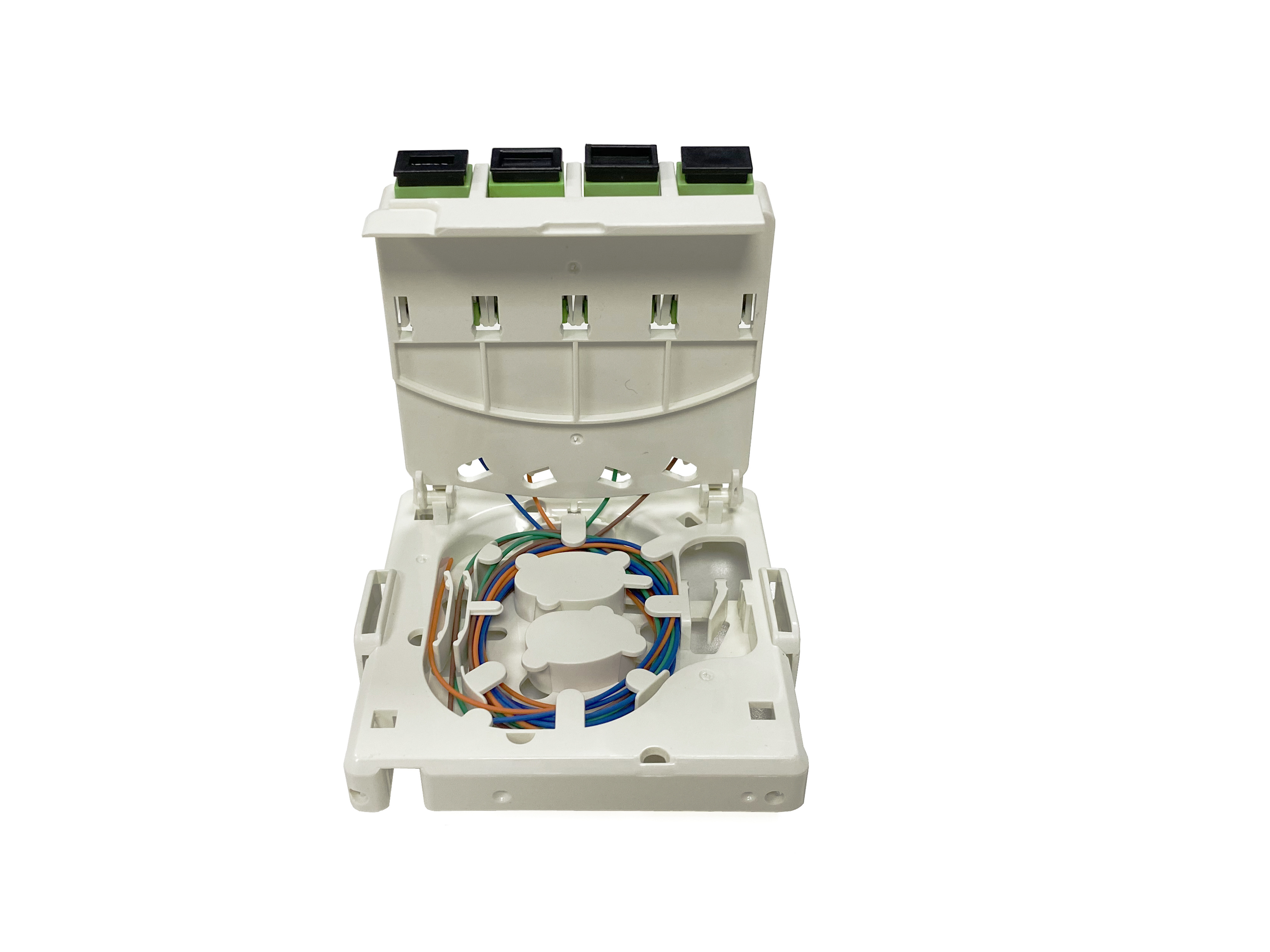

- Structure (Pic 2):
Pic 2

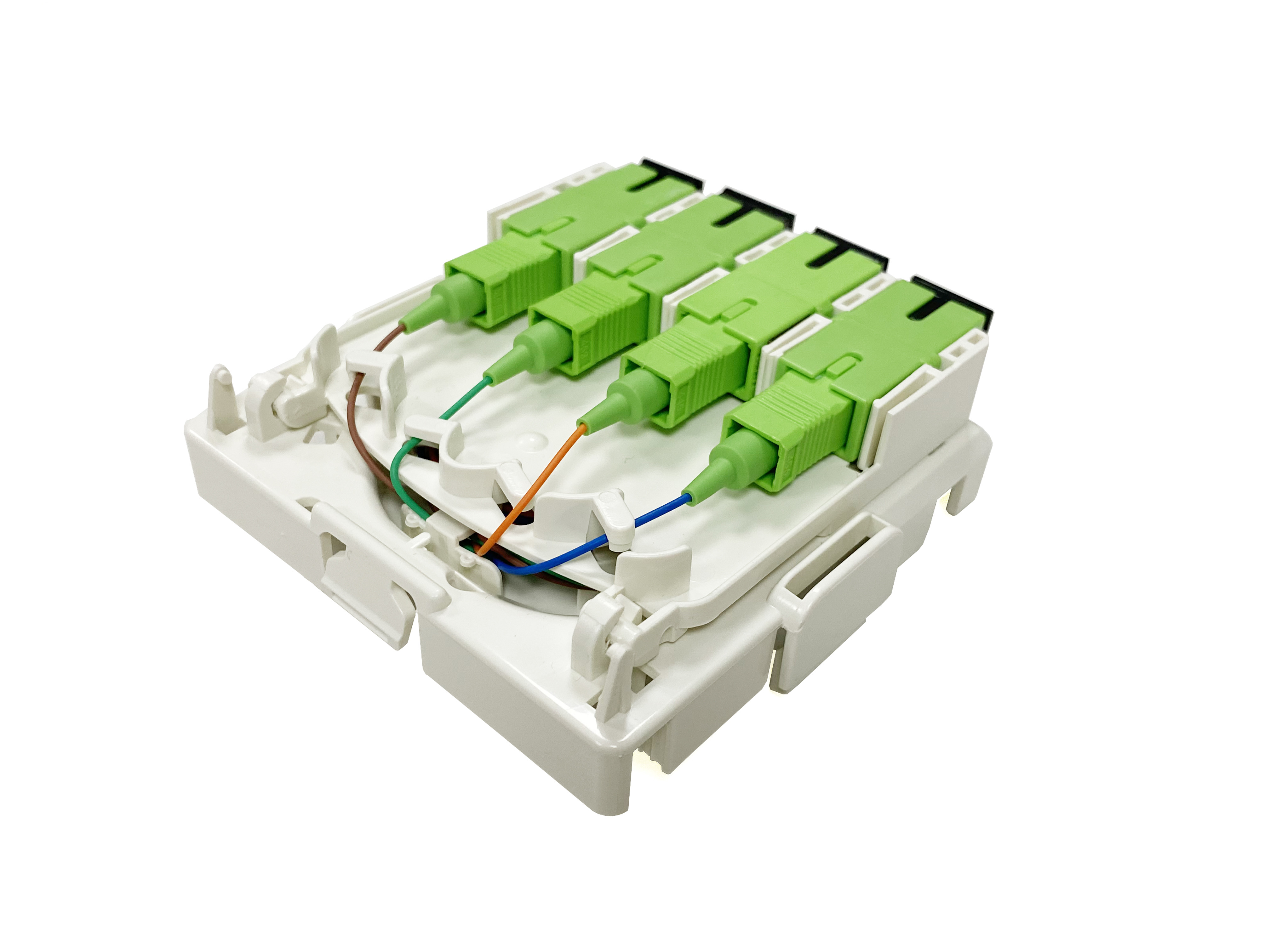

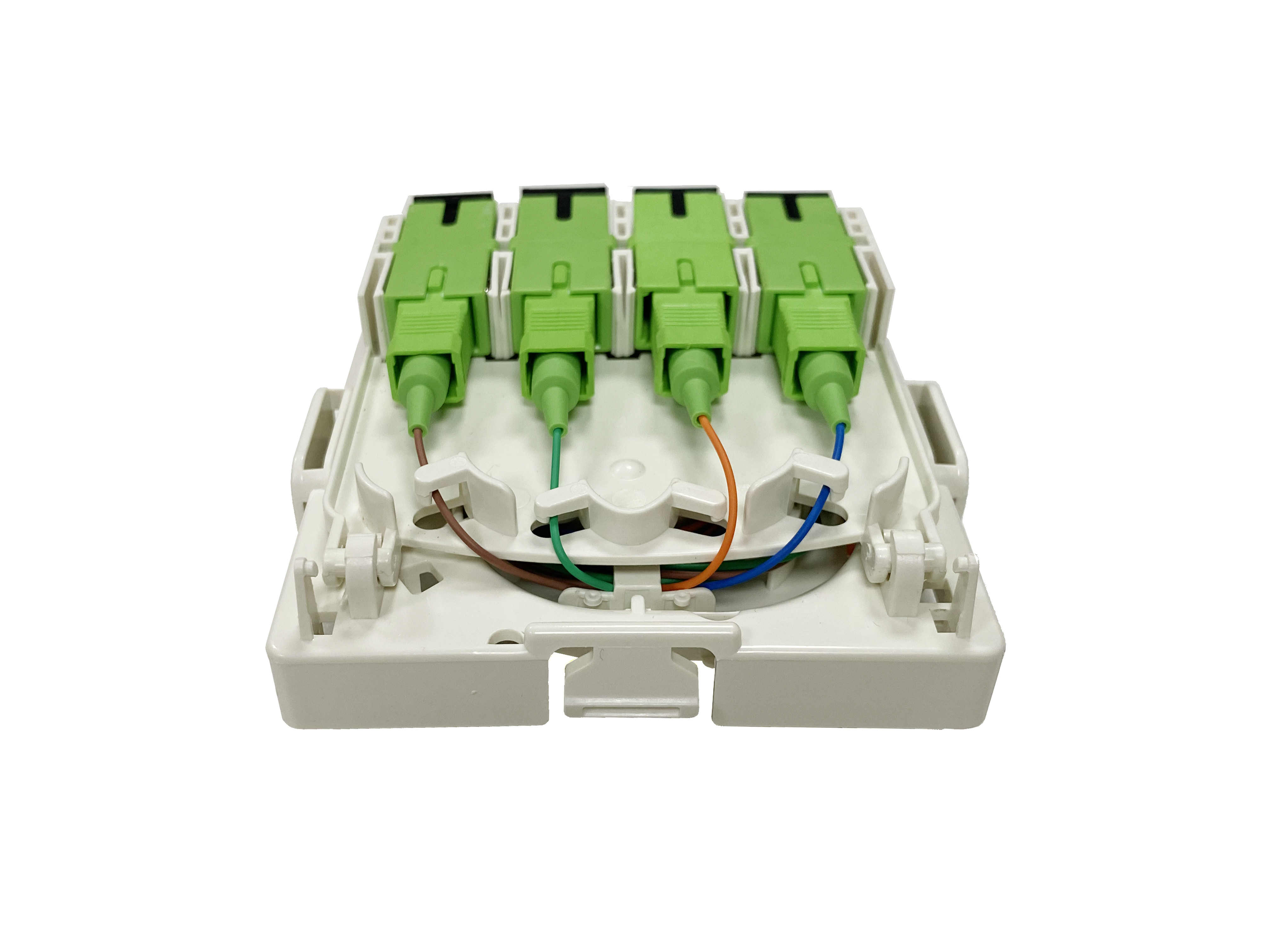

- Routing (Pic 3):
Pic 3
- Installation(Wall-mounted):
7.1 Wall Mount
Drill 2 holes in the wall according to the installation size,place the expansion bolts,place the socket to match up the holes and use bolts to fasten(Pic 4).
7.2 Rail Mount
Remove the baffles at both ends of the baseboard and fix the socket to DIN rail (TS 35) through the claws on the back(Pic 5).
Pic 4 Pic 5
