FTTX Fiber Optic Termination Box Indoor Panel For Protection And Management

FTTX Fiber Optic Termination Box Indoor Panel For Protection And Management

MOQ:	10pc
Price:	0.18USD-4.29USD
Delivery Time:	5-8days
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO CE

Material:

Metal/Plastic

Port:

SC/LC

Capacity:

4 Ports (4 SC SM,8LC/8SC DX)

Color:

White(default)

Installation:

Wall / DIN-Rail Mounting

Size:

H X W X D = 80 X 80 X 31(mm)

Supply Ability:

100000/month

Highlight:

FTTX Fiber Optic Termination Box

Fiber Optic Termination Box Indoor Panel

Product Description

FRB-4D Fiber Socket

FTTX Fiber Optic Termination Box Indoor Panel For Protection And Management 0

1,Description:

FRB-4D Fiber Socket is specially designed for FTTH (Fiber to The Home) for indoor application. It is with a protective door for dust proof, and meanwhile it provides protection and management for the FTTx network building.

Specification:

1) small size and simple operation

2) Flexible termination methods: splicing + pigtail, FTTH fast connector on site.

Applications:

FTTH Access Network
Telecommunication Network
CATV Networks
Local Area Networks
Wall / DIN-Rail Mounting

4,Configuration Table:

Model	FRB-4D
Material	PC+ABS
Colour	White(default)
Size (Pic 1)	H x W x D = 80 x 80 x 31(mm)
Max. Adaptor Capacity	4 Ports (SC)
Empty Weight	70 G
Loaded Weight	90 G

Table 1 Model and configuration

FTTX Fiber Optic Termination Box Indoor Panel For Protection And Management 1

Pic 1

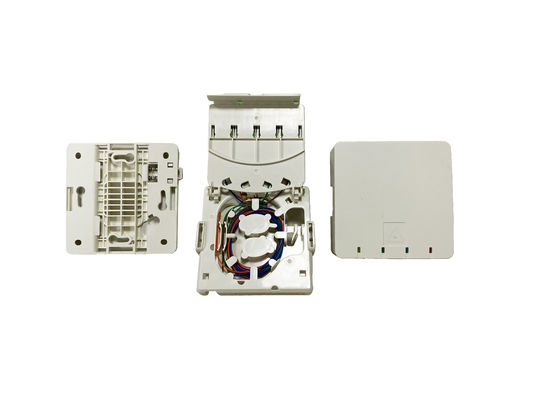

Structure (Pic 2):

FTTX Fiber Optic Termination Box Indoor Panel For Protection And Management 2

Pic 2

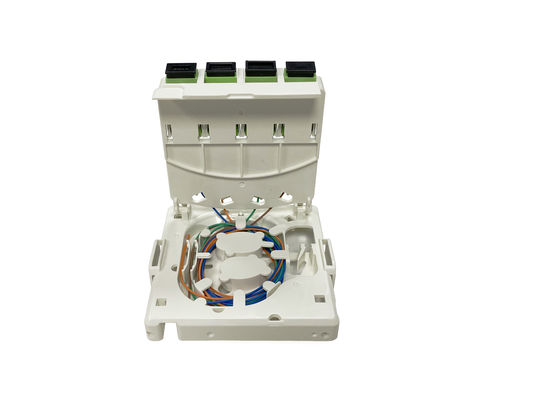

Routing (Pic 3):

FTTX Fiber Optic Termination Box Indoor Panel For Protection And Management 3

Pic 3

Installation(Wall-mounted):

7.1 Wall Mount

Drill 2 holes in the wall according to the installation size,place the expansion bolts,place the socket to match up the holes and use bolts to fasten(Pic 4).

7.2 Rail Mount

Remove the baffles at both ends of the baseboard and fix the socket to DIN rail (TS 35) through the claws on the back(Pic 5).

FTTX Fiber Optic Termination Box Indoor Panel For Protection And Management 4

Pic 4 Pic 5
