FTTH Patch Cord Drop Cable

MOQ:	200 pcs
Price:	0.36USD-30USD
Standard Packaging:	1 pc/ box, 300pcs / carton box
Delivery Period:	7days after payment
Payment Method:	Western Union, T/T
Supply Capacity:	60,000 pcs per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

china

Brand Name

YINGDA

Certification

ISO SGS ROHS

Model Number

FPC-THSS-A02

Connector:

SC/APC

Fiber Count:

1core

Insertion Loss:

<0.3dB

Cable Diameter:

2*3.0mm

Fiber Type:

Singlemode

Package:

Plastic Bag

Cable Color:

White, Black

Strength Member:

FRP Or Steel

Product Name:

Fiber Cable,fiber Optic Patch Cables,fiber Optics Patch Cords,fiber Optic Jumpers,fiber Optic Jumper Cables,fiber Optik Patch Cord

Highlight:

fiber optic jumper

multimode patch cord

Product Description

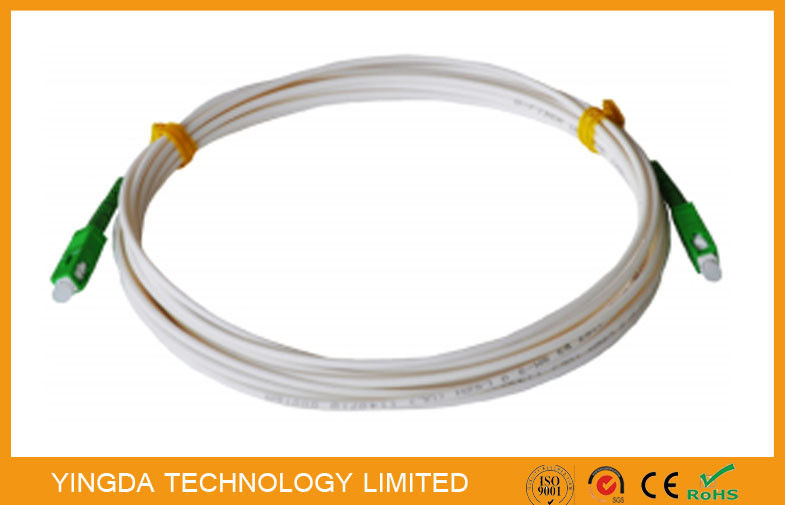

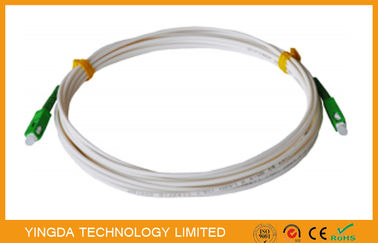

FTTH Patch Cord (Drop Cable) 1 Core SC / APC - SC / APC simplex SM LSZH 1M

Access network fiber optic drop cable (indoor wiring) is to put fiber optic unit in the center,

on both sides is two parallel nonmetallic reinforcing element (FRP) or metallic strength

member,finally extrusion black or color polyvinyl chloride (PVC) or low smoke halogen-free

flame retardant (LSZH) sheath.

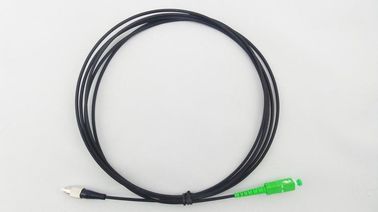

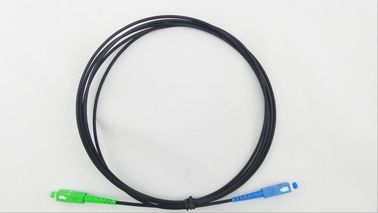

FTTH Patch Cord Drop Cable 0

Features

Low cost
High return loss
Low insertion loss
100% factory test before delivery
Cable material: PVC or LSZH
Designed or FTH drop cable
Better compliant with the installation requirement
Compliance with Telcorid GR-326-CORE,ROHS

Specification

Parameter	Single mode			Multimode
	SPC	UPC	APC	UPC
Cable diameter	Ф3.0*2.0mm drop cable or other specified
Cable capacity	1core, 2core, 4core, 8core, 12core or other specified
Fiber type	G652D, G657A1,G657A2
Insertion los s(dB)	<0.3			<0.5
Return loss (dB)	≥50	≥55	≥60	≥30
Repeatability	≤0.3 ,1000 times
Operating temperature	-40 ~ + 85 °C
Storage temperature	-40 ~ + 85 °C
Connector type	SC/UPC,SC/APC,FC/UPC,FC/APC,LC,LC/APC,ST/UPC
Cable jacket	LSZH,PVC (white, black, yellow optional)

Optical fiber mechanical performance

TEST report	Indicator
Screening level (%)	≥2.0
Minimum bending radius (mm)	10 ( G657A1 )
Coating stripping force (N)	Peak 1.3≤F≤8.9
Coating stripping force (N)	Average 1≤F≤5
Static fatigue index (nd)	≥20
Dynamic tensile strength (Gpa)	≥3.8
Single core secondary coating diameter	250um

Application

FTTH
CATV
Fiber tester
Communication Networks
Telecommunication Networks

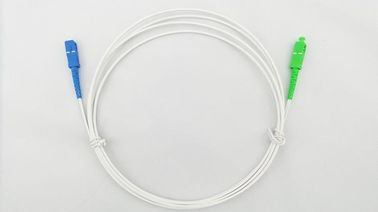

FTTH Patch Cord Drop Cable 1
