12 Ports Fiber Optic Pigtails Cable Terminal Box for FTTH Wall Mounted Mid Span Cables

12 Ports Fiber Optic Pigtails Cable Terminal Box for FTTH Wall Mounted Mid Span Cables

  • High Light

    fiber optic terminal box

    ,

    fiber optic junction box

  • Capacity
    12 Fibers Bunchy
  • Cable Inelt
    2pcs With Diameter 16mm
  • Dimension
    198*112*45 Mm
  • Material
    High Strength Engineer Plastic PC
  • Color
    Grey
  • Application
    FTTH FTTB Indoor Use
  • Splice Tray
    2pcs, Each 6 Single Fibers
  • Special
    Un-cut Cable Go Through The Box
  • Output Diameter
    12 Small Ports For Pigtails
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS CE ROHS
  • Model Number
    FTB002
  • Minimum Order Quantity
    100PCS
  • Price
    NEGOTIABLE
  • Packaging Details
    1 pc per box, 48 pcs per carton shipping box
  • Delivery Time
    5-8 working days
  • Payment Terms
    Western Union, T/T, L/C

12 Ports Fiber Optic Pigtails Cable Terminal Box for FTTH Wall Mounted Mid Span Cables

12 Ports Fiber Optic Pigtails Cable Terminal Box for FTTH Wall Mounted Mid Span Cables​



FTB002 Fiber Optic Termination Box is suitable for jointing fiber cable and pigtails to protects fiber optic splices and helps to distribute.

The termination box is either a wall-Mounting type or a desktop type, which is mainly used in telecommunication equipment room and network

equipment room.



Specification

Model

No of entry/

exit ports

Splice

trays

Max. capacity

Dimension

(LxWxH)mm

FTB002

2 cable ports + 12 small ports for pigtails

1*12F/

2*6F

12

198*112*45

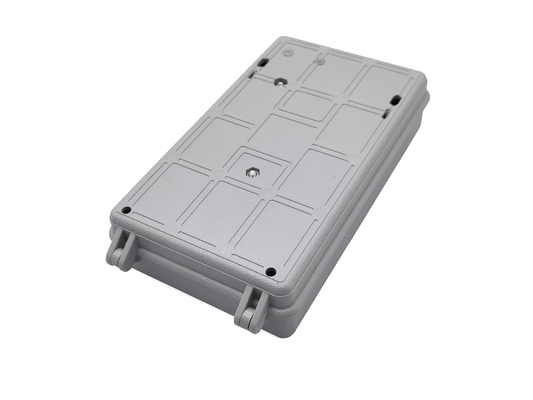

12 Ports Fiber Optic Pigtails Cable Terminal Box for FTTH Wall Mounted Mid Span Cables 0

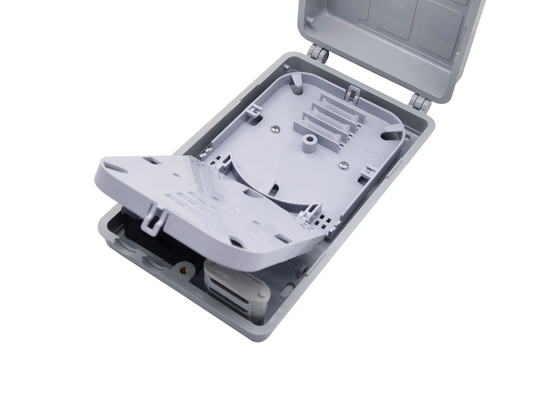

12 Ports Fiber Optic Pigtails Cable Terminal Box for FTTH Wall Mounted Mid Span Cables 1

Features

Made of engineering plastic material PC, which has good mechanical strength, reliable and long lasting for more than 20years.

Light weight, small size, large capacity, simple and easy for installation.

Provide splice connection protection of fiber cable and pigtails.

Slide-N-Lock fiber optic splice tray with its opening angle above 90 degree, it is easy for installation and maintenance.

It support uncut feeder cable go through the box without cutting off, fast and good for ftth on site construction.

indoor wall mounted with screws, no need special tools.

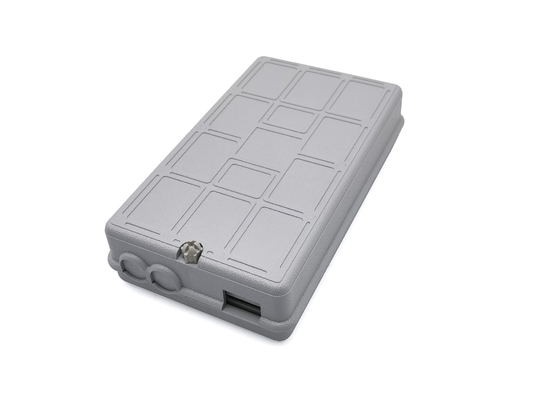

12 Ports Fiber Optic Pigtails Cable Terminal Box for FTTH Wall Mounted Mid Span Cables 2

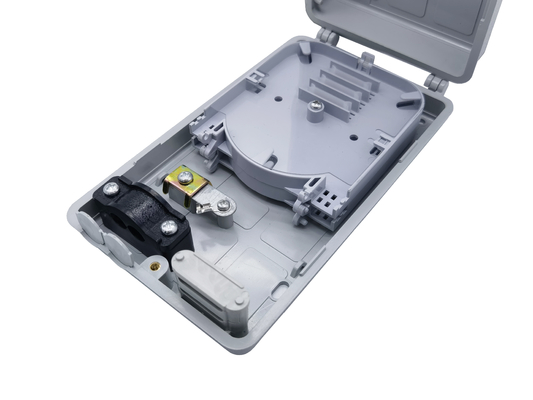

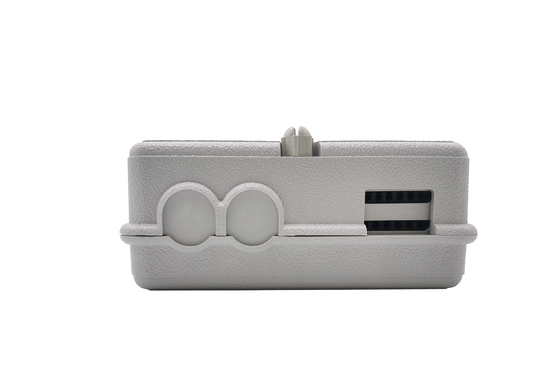

12 Ports Fiber Optic Pigtails Cable Terminal Box for FTTH Wall Mounted Mid Span Cables 312 Ports Fiber Optic Pigtails Cable Terminal Box for FTTH Wall Mounted Mid Span Cables 4


Standard accessory:

Cover, Base, splice tray, Heat shrink protective sleeves, Strength member fixtures, Cable Clamps,Strain relief combs,

PVC tape, Cable ties, Labeling paper, Wall mounting kits



Optional accessory:

fiber optic adapters, fiber pigtails, indoor cable, outdoor cables, etc.



12 Ports Fiber Optic Pigtails Cable Terminal Box for FTTH Wall Mounted Mid Span Cables 5

Model quantity / carton box CTN size / cm G. W. / kg
FTB002 50 pcs 50*37*44

23
