Fiber Optic Termination Box
Created with Pixso. High Strength Integrated Welding Modular Fiber Optic Splice Tray Cassette Plate Plastic

High Strength Integrated Welding Modular Fiber Optic Splice Tray Cassette Plate Plastic

Brand Name: YINGDA
Model Number: FTB-T01
MOQ: 100PCS
Price: Negotiable
Delivery Time: 3-5 days
Payment Terms: T/T or western Union
Detail Information
Place of Origin:
china
Certification:
ISO
Material:
Plastic
Width:
30cm
Capacity:
12 Fibers
Adapter:
SC FC LC ST E2000
Working Temperature::
-40~+85 (℃)
Fiber Optic Type:
Single-mode, Multimode
Packaging Details:
1 pc / box
Supply Ability:
50,000pcs per month
Highlight:

fiber optic terminal box

,

fiber optic junction box

Product Description

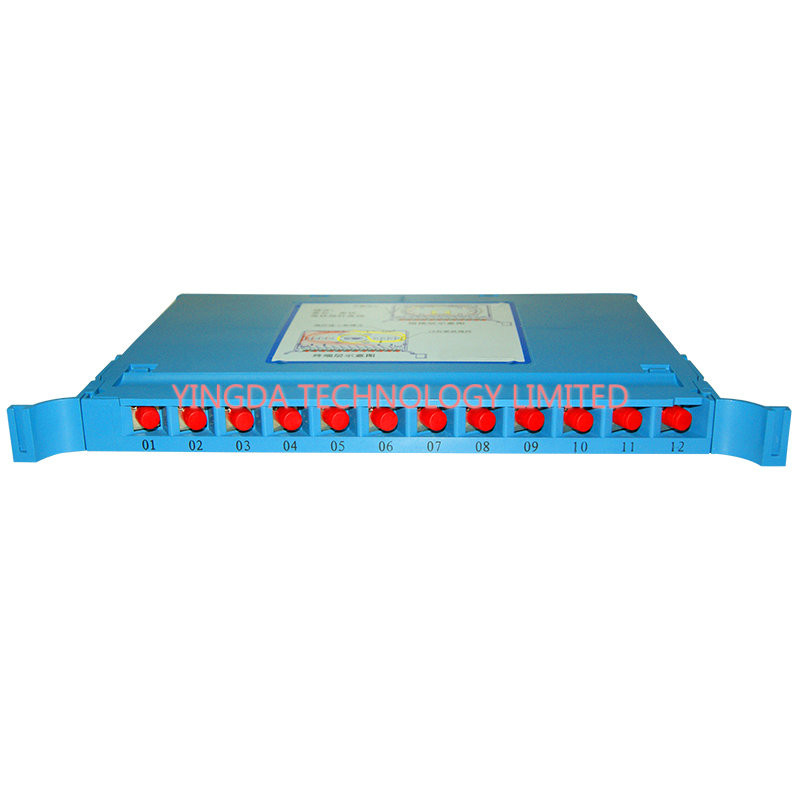

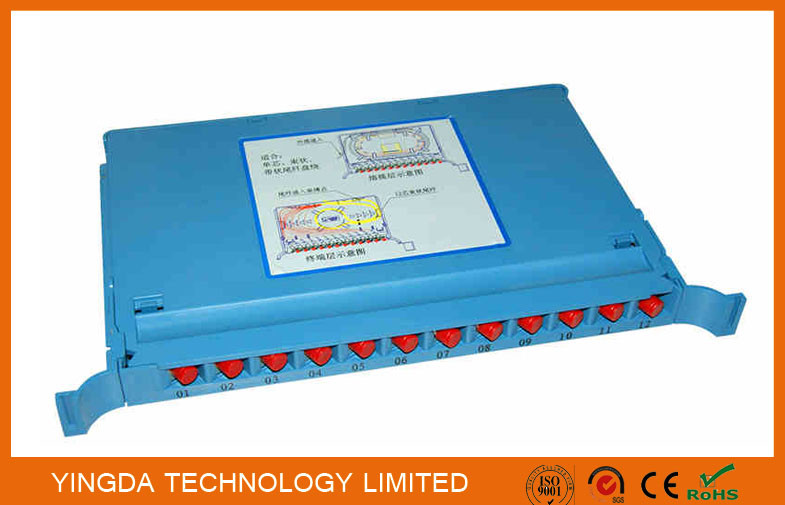

12 Cores Fiber Optic Integrated Welding Modular Tray Cassette Plate Plastic





Fiber optic welding splice tray is placed in all kinds of communication and electric power industries

boxes.Some part cable will fusion splice with fiber optic pigtails for scheduling, another part weld

directly with cable. Each single fiber can connect or use arbitratily.It is made of ABS material injection

molding, with flame retardant, high strength, anti-aging characteristics.



12 core as a unit/tray, the pigtail and cable buffer tube have separately plate space, hierarchical

management effectively protect the fiber not be damaged;

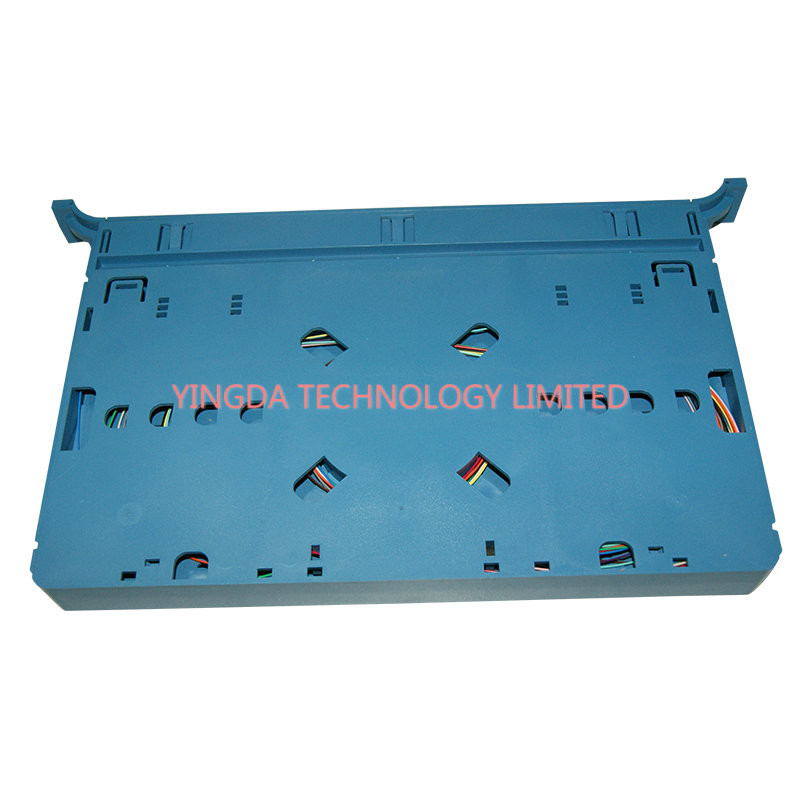

three layer structure, the lower layer is wiring plate, the middle is a fused plate, top plate is the tray

cover, welding and wiring integration, convenient operation



Application

  • Fiber welding(fusion splice) or branch
  • Cover can flip, overlay, expand capacity, easy and convenient to install and use.
  • Dimension: 180*213*25mm
  • Weight: 0.075 KG



Accessory:



1. 12Cores Bundle fiber optic Pigtails 1.5meters,0.9mm

2. SC FC fiber optic adapters



High Strength Integrated Welding Modular Fiber Optic Splice Tray Cassette Plate Plastic 0High Strength Integrated Welding Modular Fiber Optic Splice Tray Cassette Plate Plastic 1High Strength Integrated Welding Modular Fiber Optic Splice Tray Cassette Plate Plastic 2High Strength Integrated Welding Modular Fiber Optic Splice Tray Cassette Plate Plastic 3High Strength Integrated Welding Modular Fiber Optic Splice Tray Cassette Plate Plastic 4High Strength Integrated Welding Modular Fiber Optic Splice Tray Cassette Plate Plastic 5
