Fiber Optic Termination Box
Created with Pixso. 48 Core 72 Port Fiber Optic Termination Box, 48 Port Wall Mount Termianl Box

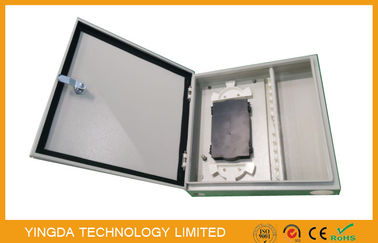

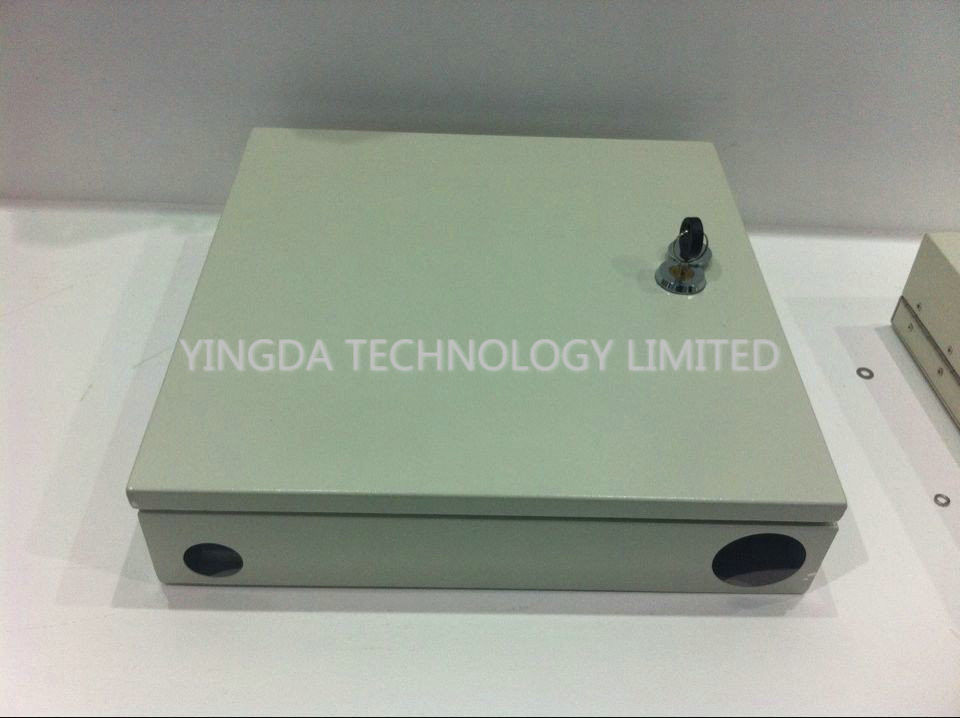

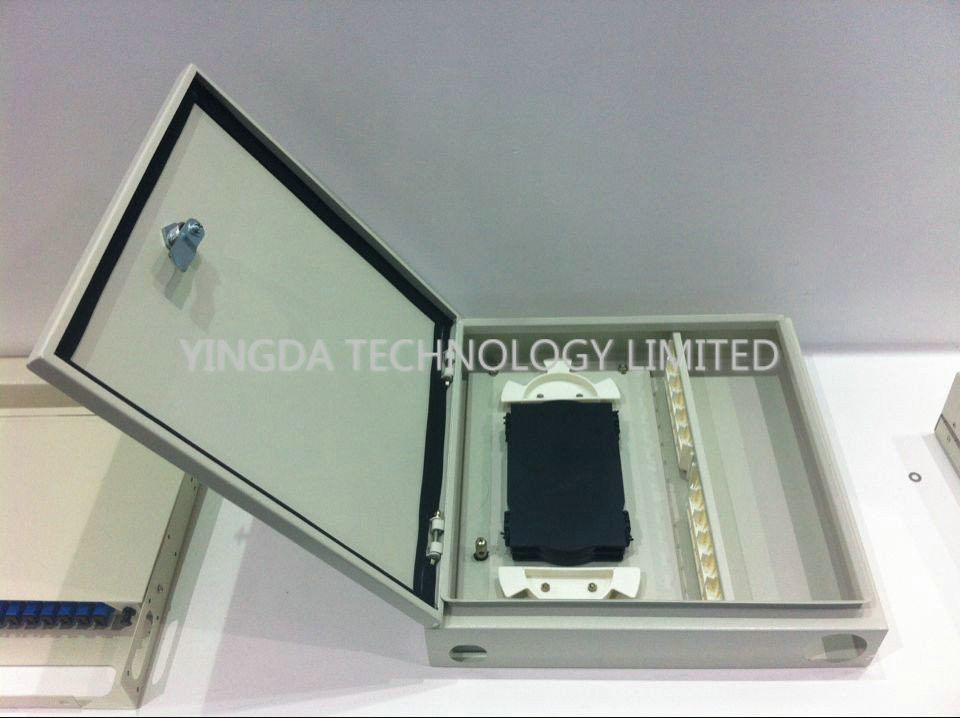

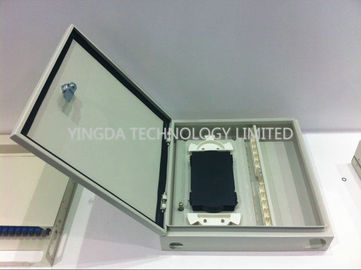

48 Core 72 Port Fiber Optic Termination Box, 48 Port Wall Mount Termianl Box

Brand Name: YINGDA
Model Number: GP(05)B-48/72
MOQ: 100 pcs
Price: negotiable
Delivery Time: 8 days after payment
Detail Information
Place of Origin:
china
Certification:
ISO SGS ROHS
Material:
Cold Rolled Steel
Color:
White
Max Capacity:
72 Fibers
Adapter:
FC SC ST LC
Cable Ports:
2 Pcs
Application:
FTTH FTTX FTTB ODN PON Network
48cores Dimension:
455*405*120mm
Thickness:
1.0mm
Fiber Type:
Singlemode, Mulitmode
Packaging Details:
1pc / box, 3 pcs / carton box
Supply Ability:
500,000 pcs per month
Highlight:

fiber optic terminal box

,

fiber optic distribution box

Product Description

48 Core 72 Port Fiber Optic Termination Box, 48 Port Wall Mount Termianl Box





Sell point:

  1. can install 48 pcs / 72 pcs SC fiber adapter
  2. can install 48pcs or 72pcs SC pigtails or 12 cores bunchy fiber pigtails as well
  3. outdoor wall mounting, mounting full screws provide.
  4. whole body waterproof, long term life
  5. sample or customer logo label ok
  6. MOQ: 50 PCS
  7. by sea or by air shipment available
  8. FOB EXW CNF CIF trade term ok
  9. can use our forwarder or your own carrier



Fiber Optic Wall Mount Distribution Box GP(05)B series is distribution equipment to connect,protect

and management the fiber and cable in fiber optic communication network. It consist of termination

access module and rack. The device can realize the optical fiber fixed, ground protection, optical

fiber connection, rational distribution, redundant fiber coiling, distribution scheduling,etc.



 Features

  1. Available for small capacity communication system,wall mounting,compact structure,harmonized
  2. with machine room
  3. The cabinet is composed of two parts,one links with optical cables for fusion
  4. connection between optical cable and fiber pigtail and another links with patch cord.
  5. Provide fusion and storage for optical cables
  6. Reliable protection appliance of fixing,stripping and earthing for optical cables.
  7. Whole range protected design for fiber lay to ensure the bending radius=40mm
  8. Provide various accessories to avoid any unexpected damage to the fiber



Specification



Type

Dimension

(mm)

Max capacity

(core)

Carton size

(mm)

GW.

(kg)

Qty/carton

(pc)

GP(05)B-48

455*405*120

48



500*450*490

  27.0

3

GP(05)B-72

455*405*150

72

500*450*390

20.5

2





Electrical and Envrionment properties



Connector attenuation

 (insertion, exchange, repeat)

≤ 0.3dB

Return loss:

APC≥60dB,UPC≥50dB,PC≥40dB

Insulation resistance

≥1000MΩ/500V (DC)

High voltage

3000V (DC) /1min, no breakdown, no arc.

Grounding wire cross-sectional area

 >6mm2, obvious grounding symbol

working temperature

-40 degrees ~+70 degrees

storage temperature

-40 degrees ~+70 degrees

Humidity

<90% 3: (+30 C)

atmospheric pressure

62Kpa ~ 106Kpa

Service life

20years



Note:

  1. Cold rolled steel sheet,electrostatic spraying.
  2. Available for 48-72pcs adapters FC,ST,SC,LC
  3. Wall mount
  4. max capacity: 72cores

Application

  • Cable introduce, fix and strip protection, optical fiber splice and protection, pigtail storage,
  • patch cord storage and management, optical fiber fixed connected and cross connection
  • Ialso can install optical splitters, wave division multiplexer WDM and other value-added module
  • according to the requirements of customers.
  • Terminate, use and manage between wiring room and equipment room.



48 Core 72 Port Fiber Optic Termination Box, 48 Port Wall Mount Termianl Box 048 Core 72 Port Fiber Optic Termination Box, 48 Port Wall Mount Termianl Box 1
