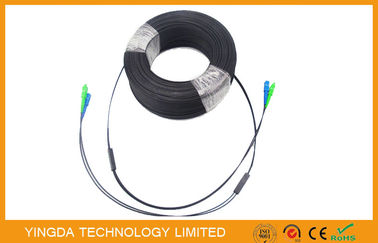

Indoor Fiber Optic Patch Cables SC APC - SC Duplex FTTH Drop Cable Fanout Kits LSZH FRP

Place of Origin china
Brand Name YINGDA
Certification ISO SGS ROHS
Model Number FPC-THSD-AC02
Minimum Order Quantity 200 pcs
Price negotiable
Packaging Details 1 pc/ box, 300pcs / carton box
Delivery Time 7days after payment
Payment Terms Western Union, T/T
Supply Ability 60,000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector SC/APC, SC/PC Fiber Count 2 Cores
Insertion Loss <0.3dB Cable Diameter 2*3.0mm
Fiber Type Singlemode 9/125um Package Plastic Bag
Cable Color Black Strength Member FRP Or Steel
Highlight

fiber optic patch cable

,

fiber optic jumper

Leave a Message
Product Description

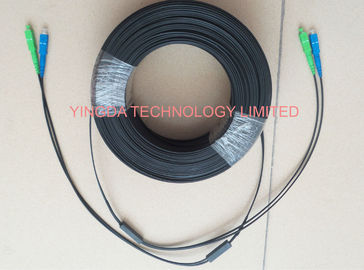

Fiber Optic Patch Cord SC / APC -SC / UPC Duplex FTTH Drop Cable Fanout Kits LSZH FRP





Description



The patch cord which use FTTH drop cable is FTTH drop cable patch cord, the FTTH patch cord

length is generally 3-300meters. The FTTH drop cable patch cord length can be customized,

no need weld, direct installation,save labor cost, now it is widely used by worldwide major operators,

and also gradually been widely used in optical fiber video monitoring installation.



Drop cable can be made into single core, dual core, or 4cores structure, etc. The cross section

is figure-8, reinforcement is located in the center of the two circles, can be made of metal or

non-metal structure,optical fiber in the geometric center.YINGDA technology limited drop cable

use small bending radius G.657 fiber, can laying within 20mm bending radius, suitable for pipeline

or open wiring mode in buildings.

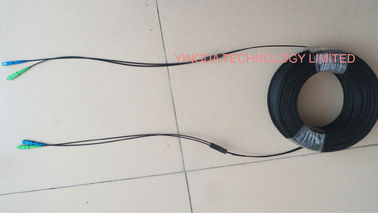

Indoor Fiber Optic Patch Cables SC APC - SC Duplex FTTH Drop Cable Fanout Kits LSZH FRP 0



Features

  • Special high bending radius optical fiber, provides wider bandwidth, enhance the
  • network transmission performance;
  • Two parallel FRP or metallic strength member so that the cable has good compression
  • performance, protect the fiber;
  • Simple structure, light weight, strong practicability;
  • The unique groove design, easy to peel, convenient connection, simple installation and
  • maintenance;
  • Low smoke halogen-free flame retardant polyethylene sheath or flame retardant PVC sheath, environmental
  • protection.
  • Can be matched with a plurality of field connector, can be terminated at site.
  • Due to its soft and light, it is widely used in access network; so it is also called indoor
  • access network butterfly cable, and due to its shape called butterfly optical cable,
  • figure 8 cable.



Application

  1. For indoor wiring, terminal user directly use cable;
  2. Building introducing (drop) cable;
  3. FTTH indoor wiring;



Implementation standards

  1. YD/T1997-2009 access network butterfly optical drop cable
  2. Delivery length: 2km/ reel



Specification



Parameter

Single mode

Multimode

SPC

UPC

APC

UPC

Insertion los s(dB)

<0.3

<0.5

Return loss (dB)

≥50

≥55

≥60

≥30

Repeatability

≤0.2 ,100 times

Operating temperature

-40 ~ + 85 °C

Storage temperature

-40 ~ + 85 °C

Connector type

SC,SC/APC,FC,FC/APC,LC



Order information



1. Cable type: Figure-8 or self-supporting

2. Strength member: FRP or metal

3. Sheath material: LSZH, PVC

4. Fiber count: 1core, 2core, 4core...

5. Fiber type:G652D, G657A1,G657A2

6. Cable color: white, black, yellow
