| Brand Name: | YINGDA |
| Model Number: | FPC-THSS-A02 |
| MOQ: | 200 pcs |
| Price: | negotiable |
| Delivery Time: | 7days after payment |
| Payment Terms: | Western Union, T/T |

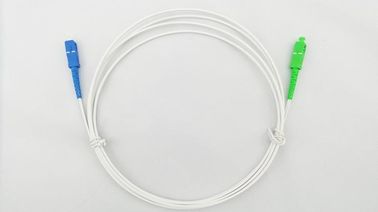

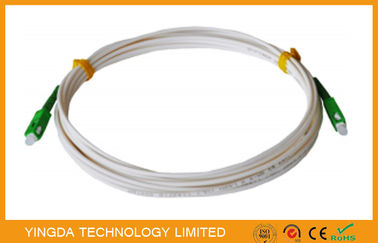

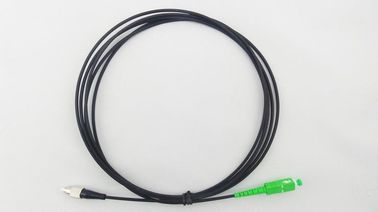

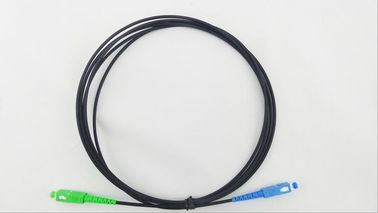

FTTH Patch Cord (Drop Cable) SC / APC - SC / APC simplex SM LSZH
1M Jumper Indoor 1Core
Access network fiber optic drop cable (indoor wiring) is to put fiber optic unit in the center,
on both sides is two parallel nonmetallic reinforcing element (FRP) or metallic strength
member,finally extrusion black or color polyvinyl chloride (PVC) or low smoke halogen-free
flame retardant (LSZH) sheath.
Features
Specification
|
Parameter |
Single mode |
Multimode |
||||
|
SPC |
UPC |
APC |
UPC |
|||
|
Cable diameter |
Ф3.0*2.0mm drop cable or other specified |
|||||
|
Cable capacity |
1core, 2core, 4core, 8core, 12core or other specified |
|||||
|
Fiber type |
G652D, G657A1,G657A2 |
|
|
|||
|
Insertion los s(dB) |
<0.3 |
<0.5 |
|
|||
|
Return loss (dB) |
≥50 |
≥55 |
≥60 |
≥30 |
|
|
|
Repeatability |
≤0.3 ,1000 times |
|||||
|
Operating temperature |
-40 ~ + 85 °C |
|||||
|
Storage temperature |
-40 ~ + 85 °C |
|||||
|
Connector type |
SC/UPC,SC/APC,FC/UPC,FC/APC,LC,LC/APC,ST/UPC |
|||||
|
Cable jacket |
LSZH,PVC (white, black, yellow optional) |
|||||
Optical fiber mechanical performance
|
TEST report |
Indicator |
|
Screening level (%) |
≥2.0 |
|
Minimum bending radius (mm) |
10 ( G657A1 ) |
|
Coating stripping force (N) |
Peak 1.3≤F≤8.9 |
|
Average 1≤F≤5 |
|
|
Static fatigue index (nd) |
≥20 |
|
Dynamic tensile strength (Gpa) |
≥3.8 |
|
Single core secondary coating diameter |
250um |
Application
|
|
| Brand Name: | YINGDA |
| Model Number: | FPC-THSS-A02 |
| MOQ: | 200 pcs |
| Price: | negotiable |
| Packaging Details: | 1 pc/ box, 300pcs / carton box |
| Payment Terms: | Western Union, T/T |
FTTH Patch Cord (Drop Cable) SC / APC - SC / APC simplex SM LSZH
1M Jumper Indoor 1Core
Access network fiber optic drop cable (indoor wiring) is to put fiber optic unit in the center,
on both sides is two parallel nonmetallic reinforcing element (FRP) or metallic strength
member,finally extrusion black or color polyvinyl chloride (PVC) or low smoke halogen-free
flame retardant (LSZH) sheath.
Features
Specification
|
Parameter |
Single mode |
Multimode |
||||
|
SPC |
UPC |
APC |
UPC |
|||
|
Cable diameter |
Ф3.0*2.0mm drop cable or other specified |
|||||
|
Cable capacity |
1core, 2core, 4core, 8core, 12core or other specified |
|||||
|
Fiber type |
G652D, G657A1,G657A2 |
|
|
|||
|
Insertion los s(dB) |
<0.3 |
<0.5 |
|
|||
|
Return loss (dB) |
≥50 |
≥55 |
≥60 |
≥30 |
|
|
|
Repeatability |
≤0.3 ,1000 times |
|||||
|
Operating temperature |
-40 ~ + 85 °C |
|||||
|
Storage temperature |
-40 ~ + 85 °C |
|||||
|
Connector type |
SC/UPC,SC/APC,FC/UPC,FC/APC,LC,LC/APC,ST/UPC |
|||||
|
Cable jacket |
LSZH,PVC (white, black, yellow optional) |
|||||
Optical fiber mechanical performance
|
TEST report |
Indicator |
|
Screening level (%) |
≥2.0 |
|
Minimum bending radius (mm) |
10 ( G657A1 ) |
|
Coating stripping force (N) |
Peak 1.3≤F≤8.9 |
|
Average 1≤F≤5 |
|
|
Static fatigue index (nd) |
≥20 |
|
Dynamic tensile strength (Gpa) |
≥3.8 |
|
Single core secondary coating diameter |
250um |
Application
