E2000 / APC - FC / UPC SM SX 3.0mm 3M Fiber Optic Patch Cord Yellow LSZH

E2000 / APC - FC / UPC SM SX 3.0mm 3M Fiber Optic Patch Cord Yellow LSZH

  • High Light

    fiber optic jumper

    ,

    multimode patch cord

  • Connector
    E2000/APC, FC/UPC
  • Fiber Count
    Simplex 1 Core
  • Insertion Loss
    <0.2dB
  • Cable Length
    Customized
  • Cable Diameter
    1.8mm
  • Fiber Type
    OS2 Singlemode
  • Package
    1pc/ Plastic Bag
  • Cable Color
    Yellow
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS ROHS
  • Model Number
    FPC-EKFC-1002-03
  • Minimum Order Quantity
    500 pcs
  • Price
    negotiable
  • Packaging Details
    1 pc/ box,230pcs / carton box
  • Delivery Time
    7days after payment
  • Payment Terms
    Western Union, T/T
  • Supply Ability
    60,000 pcs per month

E2000 / APC - FC / UPC SM SX 3.0mm 3M Fiber Optic Patch Cord Yellow LSZH

E2000/APC - FC/UPC SM SX 3.0mm 3M Fiber Optic Patch Cord Yellow LSZH



Fiber jumper (also called optical fiber connector) have connectors on both ends, used to achieve

the optical path movable connected; If only one end with connectors called pigtail. Optical fiber

jumper (Optical Fiber Patch Cord/Cable) and similar to coaxial cable, but no have net shielding

layer. The center is the light transmission glass core(ferrule). Multimode fibers diameter is 50 um

~65 um, roughly equal to the human hair thickness. While the single mode fiber core diameter is

8um~10um. The core is surrounded by a layer of glass coating whose refractive index is lower

than the core to hold the fiber in the core. Outside is a thin plastic jacket.



Technical Parameters

Connector

Polish

Insertion loss

Return loss

IL typical

RL typical

IEC

Enterprise

IEC

Enterprise





FC-SM

APC

≤0.5dB

≤0.3dB

≥ dB

≥ 30dB

≤0.2dB

≥ dB

UPC

≤0.5dB

≤0.3dB

≥ dB

≥ 30dB

≤0.2dB

≥ dB

PC

≤0.5dB

≤0.3dB

≥ dB

≥ 30dB

≤0.2dB

≥ dB

E2000-SM

APC

≤0.5dB

≤0.3dB

≥ dB

≥ 30dB

≤0.2dB

≥ dB

UPC

≤0.5dB

≤0.3dB

≥ dB

≥ 30dB

≤0.2dB

≥ dB

PC

≤0.5dB

≤0.3dB

≥ dB

≥ 30dB

≤0.2dB

≥ dB



Features

  • 1000matings, change ≤0.18dB
  • Temperature: -40~+80 °C
  • Tensile Strength: 45kgs(diameter 0.9 SM fiber except)
  • Vibration test: <0.1dB (5-50HZ, 1.5 SM Amplitude)

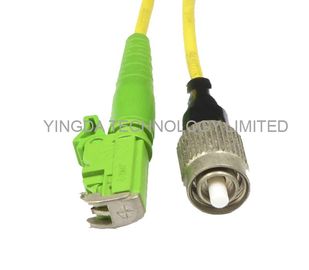

E2000 / APC - FC / UPC SM SX 3.0mm 3M Fiber Optic Patch Cord Yellow LSZH 0

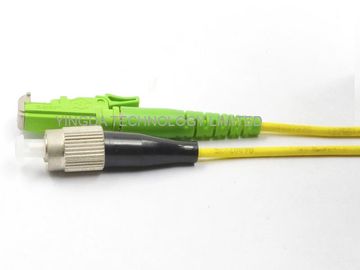

E2000 / APC - FC / UPC SM SX 3.0mm 3M Fiber Optic Patch Cord Yellow LSZH 1
