| Brand Name: | YINGDA |
| Model Number: | FPCLC-MMDX-20-15 |
| MOQ: | 500 pcs |
| Price: | negotiable |
| Delivery Time: | 7days after payment |
| Payment Terms: | Western Union, T/T |

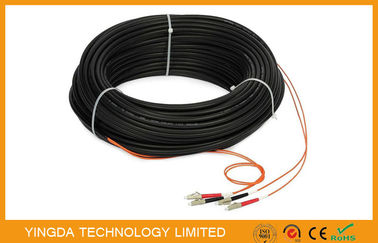

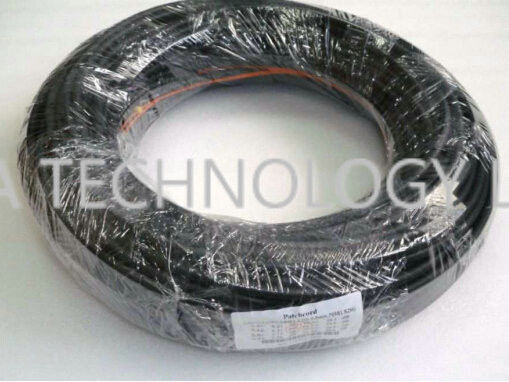

Outdoor DLC / PC 2 Fibers MM 7.0mm Non-armored BBU Base Station
Patch Cord Waterproof Cable
Duplex Base Station Far Transmission Fiber Optic Patch Cable is kind of Indoor/Outdoor
patch cord, built on LSZH cables with 7.0mm or 4.8mm diameter, with water blocking
aramid yarns and UV resistant black out jacket.
Features
Fiber Connector Performance
|
Test item |
A |
B |
||
|
Operating wavelength//nm |
1310/550nm |
|||
|
Connector |
LC |
LC |
FC |
SC |
|
IL |
≤0.3dB |
≤0.2dB |
≤0.2dB |
≤0.2dB |
|
Durability |
≤0.2dB |
|||
|
RL |
≥40dB |
|||
|
Operating temperature |
-40 ~+80°C |
|||
|
Tensile strength |
≥300N |
|||
Base Sation outdoor cable specification
|
Fiber count |
Cable diameter (mm) |
Cable weight (kg/km) |
Tensile(N) |
Crush (N/100mm) |
Mini Bend radius(mm) |
Temperature range(°C) |
|||
|
Long term |
Short term |
Long term |
Short term |
Dynamic |
Static |
|
|||
|
2 |
7.0 |
42.3 |
200 |
400 |
1100 |
2200 |
20D |
10D |
-40 ~+80°C |
Note:
1. All the values in the table,which are for reference only,are subject to charge without notice.
2. D is the outer diameter of the round cable
3. The tensile and crush values in the table are minimum.
4. Outer cable jacket and inner cable jacket are all LSZH material
Application
Withe the development of optical communication technology,optical connector is used from
indoor to outdoor. Especially in 3G/4G communication network,base-station is applied
more and more, building Base Band Unit (BBU) connects Radio Remote Unit (RRU)
is used for duplex outdoor cable. Our outdoor cable connector is the leading solution
for harsh environment.
Order information
Common type no armoured for BBU
Optical Cable Assembly, DLC/PC,DLC/PC,Single mode 9/125um (multimode 62.5/125 50/125um),
GYFJH 2A1a(LSZH),7.0mm, 2 Cores, 0.03m/0.34m,2mm, Outdoor protected branch cable
(armored type) Length= 10m, 20m xxx Meters
|
|
