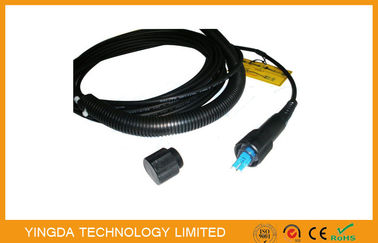

Outdoor Waterproof PDLC Duplex Single Mode 7.0mm Base Station Patch Cord BBU / RRU

Place of Origin china
Brand Name YINGDA
Certification ISO SGS ROHS
Model Number FPCLC-SDXPDL-20-03
Minimum Order Quantity 500 pcs
Price negotiable
Packaging Details 1 pc/ box, 200pcs / carton box
Delivery Time 7days after payment
Payment Terms Western Union, T/T
Supply Ability 60,000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector LC/UPC Fiber Count Duplex
Insertion Loss <0.3dB Cable Length Customized
Cable Diameter 7.0 Mm Fiber Type Singlemode SM 9/125um
Package Wooden Drum Cable Color Black
Appliatoin Base Station
High Light

fiber optic patch cable

,

multimode patch cord

Leave a Message
Product Description

Outdoor LC Duplex Single Mode 7.0mm Base Station Patch Cord BBU / RRU





Sell point:

Type: PDLC fiber patch cord

Mode: Single mode and Multimode

Cable Fan-out: 0.5M, 1M

Cable type: outdoor waterproof cable

Ferrule End-face: PC, UPC, APC

Cable core: 2core, 4core, 6core...customized



Description

The PDLC connectors, together with the support optical cable, are becoming the

standard interface specified in 3G, 4G and WiMax Base Station remote radios and

Fiber-to-the Antenna (FTTA) applications.





Application

Withe the development of optical communication technology,optical connector is used

from indoor to outdoor. Especially in 3G/4G communication network,base-station

is applied more and more, building Base Band Unit (BBU) connects Radio Remote

Unit (RRU) is used for duplex outdoor cable. Our outdoor cable connector is the

leading solution for harsh environment.

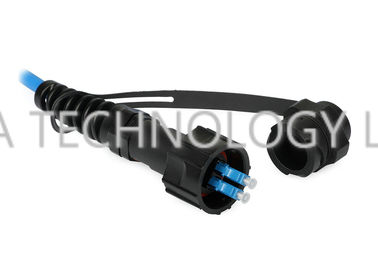

Outdoor Waterproof PDLC Duplex Single Mode 7.0mm Base Station Patch Cord BBU / RRU 0



Features

  1. IP65 protection,salt-mist proof
  2. Easy,reliable and cost-effective installation
  3. The connectors of Slide-A is Duplex LC and Side B can be LC, SC or FC
  4. Thread structure guarantees the trusted connection



Performance



Test item

A

B

Operating wavelength

/nm

1310/550nm

Connector

LC

LC

FC

SC

IL

≤0.3dB

≤0.2dB

≤0.2dB

≤0.2dB

Durability

≤0.2dB

RL

≥40dB

Operating temperature

-40 ~+80°C

Tensile strength

≥300N



Cable structure

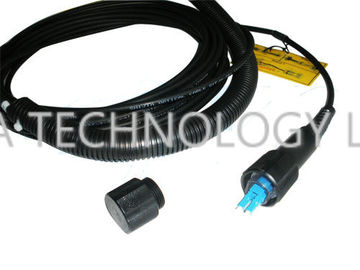

Outdoor Waterproof PDLC Duplex Single Mode 7.0mm Base Station Patch Cord BBU / RRU 1



Fiber

 count

Cable

diameter

(mm)

Cable

weight

(kg/km)

Tensile(N)

Crush (N/100mm)

Mini Bend

 radius(mm)

Temperature

 range(°C)

Long

term

Short

 term

Long

 term

Short

 term

Dynamic

Static



2

7.0

42.3

200

400

1100

2200

20D

10D

-40 ~+80°C



Note:

  • All the values in the table,which are for reference only,are subject to charge without notice.
  • D is the outer diameter of the round cable
  • The tensile and crush values in the table are minimum.
  • Outer cable jacket and inner cable jacket are all LSZH material



Order information



ZTE BBU/RRU:

(ZTE) Optical Cable Assembly, DLC/PC,DLC/PC,Single mode 9/125um (multimode 62.5/125 50/125um),

GYFJH 2A1a(LSZH),7.0mm, 2 Cores, 0.03m/0.34m,2mm, Outdoor protected branch cable(armored type)

Length= 10m, 20m xxx Meters, A end (RRU) with PDL cover.

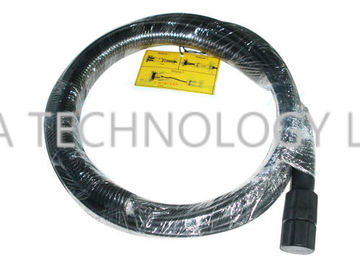

Outdoor Waterproof PDLC Duplex Single Mode 7.0mm Base Station Patch Cord BBU / RRU 2
