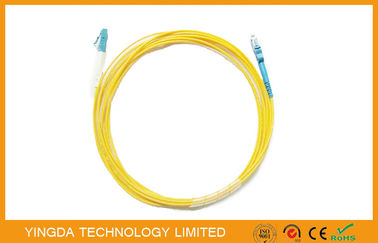

Lx.5 - LC Fiber Optic Patch Cord Cable Simplex Single Mode 2.0mm High RL , Low IL

Lx.5 - LC Fiber Optic Patch Cord Cable Simplex Single Mode 2.0mm High RL , Low IL

  • High Light

    fiber optic patch cable

    ,

    fiber optic jumper

  • Connector
    LX.5, LC
  • Fiber Count
    SIMPLEX
  • Insertion Loss
    <0.3dB
  • Cable Length
    2meter
  • Cable Diameter
    2.0mm
  • Fiber Type
    Singlemode SM 9/125um
  • Package
    1pc / Plastic Bag
  • Cable Color
    Yellow
  • Return Loss
    >65dB UPC
  • Connector House Color
    Blue
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS ROHS
  • Model Number
    FPC-LXLC-SSX-20-02
  • Minimum Order Quantity
    500 pcs
  • Price
    negotiable
  • Packaging Details
    1 pc/ box, 200pcs / carton box
  • Delivery Time
    7days after payment
  • Payment Terms
    Western Union, T/T
  • Supply Ability
    60,000 pcs per month

Lx.5 - LC Fiber Optic Patch Cord Cable Simplex Single Mode 2.0mm High RL , Low IL

Lx.5 - LC Fiber Optic Patch Cord Cable Simplex Single Mode 2.0mm LSZH 3D Test Report





Features

  • PC/UPC/APC end face
  • High RL,Low IL
  • High stability and reliability
  • 0.9,2.0,3.0mm cable diameter optional



Technical parameters

  1. Conforms to IEC-61754-20 standard
  2. Conforms to Telcordia-GR-326-CORE standard
  3. Conforms to ROHS standard
  4. Conforms to EN186270 standard



Specification



Fiber mode

SM

MM

Connector type

Lx.5-LC

diameter

0.9mm,2.0mm,3.0mm

End face

PC

UPC

APC

PC

IL

≤ 0.30

≤ 0.30

≤ 0.30

≤ 0.30

RL

≥ 45

≥ 50

≥ 60

≥ 35

Interchangeability

0.2dB

Repeat-ability

0.2dB

Working temperature

-40~+75℃

Storage temperature

-40~+85℃

Working wavelength

1310/1550nm

850nm



Application

  1. Fiber Optic Communication System
  2. Fiber Optic Test instruments
  3. CATV network
  4. LAN/LOCAL network
