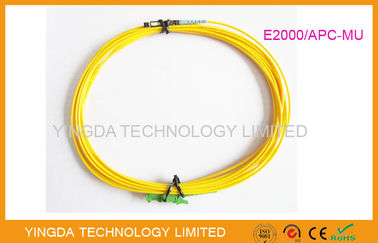

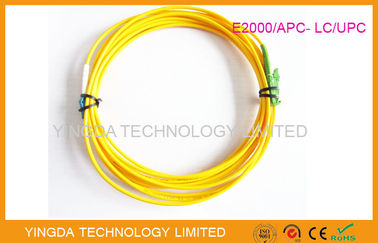

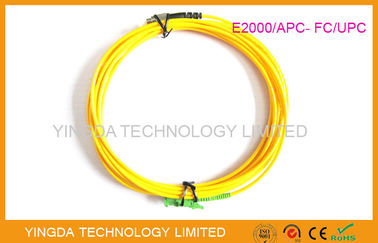

100% Factory Telecom FTTH E2000 / APC - MU FC LC Fiber Optic Patch Cord
  • Name
  • Name
  • Name

100% Factory Telecom FTTH E2000 / APC - MU FC LC Fiber Optic Patch Cord

MOQ: 500 pcs
Price: 0.36USD-30USD
Standard Packaging: 1 pc/ box, 200pcs / carton box
Delivery Period: 7days after payment
Payment Method: Western Union, T/T
Supply Capacity: 60,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
FPC-EEH-SSX-30-01
Connector:
E2000 / APC
Fiber Count:
SIMPLEX
Insertion Loss:
<0.3dB
Cable Length:
1meter
Cable Diameter:
1.8mm
Fiber Type:
Singlemode SM 9/125um
Package:
1pc / Plastic Bag
Cable Color:
Yellow
Return Loss:
>65dB APC
Connector House Color:
Green -E-200 Apc, FC Black, LC Blue,SC Blue
Product Name:
Fiber Cable,fiber Optic Patch Cables,fiber Optics Patch Cords,fiber Optic Jumpers,fiber Optic Jumper Cables,fiber Optik Patch Cord
Highlight:

fiber optic patch cable

,

fiber optic jumper

Product Description

100% Factory Telecom FTTH E2000 / APC - MU FC LC Fiber Optic Patch Cord





Features:

  1. Low insertion loss,
  2. High return loss
  3. Manufactured by our own factory
  4. Good repeatability and exchangeability



Applications:

  1. Communication Workshop
  2. FTTH
  3. Local Area Network
  4. Fiber Sensor
  5. CATV
  6. Fiber Optical Communication System



 Performance Index:



Parameter

Unit

FC, SC, LC,ST fiber

optic patch cord

ST, MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

PC

UPC

PC

PC

UPC

PC

PC

APC

Insertion loss

(typical)

dB

≤ 0.3

≤ 0.2

≤ 0.3

≤ 0.2

≤ 0.3

≤ 0.2

≤ 0.2

≤ 0.3

≤ 0.2

≤ 0.2

≤ 0.3

≤ 0.3

Return loss

dB

≥ 45

≥ 50

≥ 60

≥ 30

≥ 45

≥ 50

≥ 30

≥ 45

≥ 50

≥ 35

≥ 55

≥ 75

Operating

wavelength

nm

1310, 1510

1310, 1510

1310, 1510

1310, 1510

Exchangeability

dB

≤ 0.2

≤ 0.2

≤ 0.2

≤ 0.2

Vibration

dB

≤ 0.2

≤ 0.2

≤ 0.2

≤ 0.2

Operating

temperature



-40~75

-40~75

-40~75

-40~75

Storage

temperature



-45~85

-45~85

-45~85

-45~85

Cable

diameter

mm

3.0, 2.0, 0.9

3.0,  2.0,  0.9

3.0, 2.0, 0.9

 3.0, φ 2.0, φ 0.9



Order information

  1. Full specifications, FC, SC, ST, LC, MTRJ, E2000,  etc.
  2. Simplex and Duplex assemblies available
  3. Singlemode and multimode available
  4. PC, UPC and APC polishing available
  5. PVC and LSZH outer sheath.
  6. 0.9mm, 2.0mm and 3.0mm cable size.
  7. Hybrid patch cords are available upon request
  8. Pigtail available
  9. Loopback available
  10. Customized length

100% Factory Telecom FTTH E2000 / APC - MU FC LC Fiber Optic Patch Cord 0
