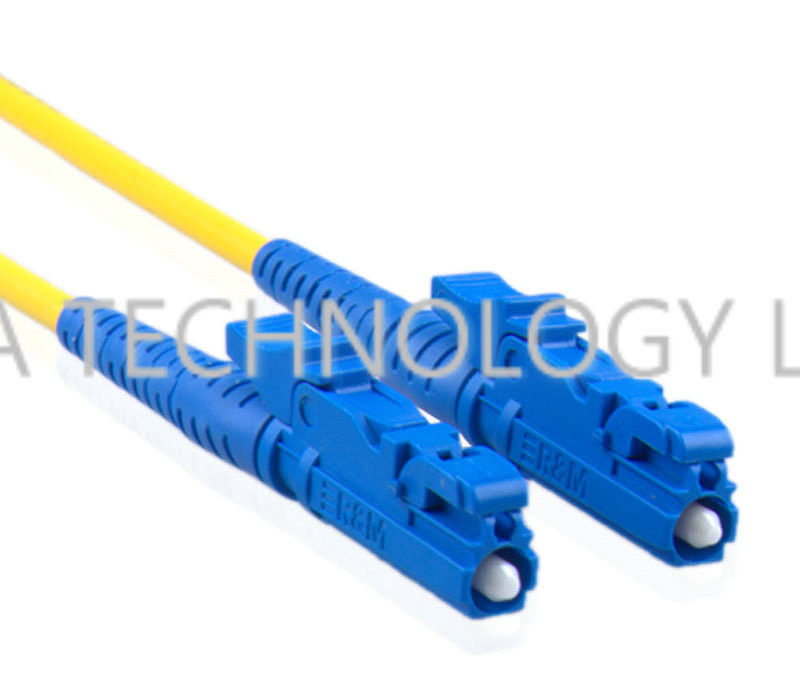

R&M E2000 / UPC Fiber Optic Patch Cord Pigtail Single Mode Duplex 9/125um
Patchcords or pigtails are available in standard and variable lengths of singlemode single fiber
cable, one or both termination assembled with convex angled polishing E-2000 APC connector,
with high return loss.
Each patchcord is identified by a serial number and insertion and return loss measures at 1310nm
are enclosed. The packaging supplied is a blister with dimensions 240 x 190 x 20 mm. Other
packaging available upon request.
Single fiber patch-cord
|
Cable Specifications |
|
|
Singlemode optical fiber with a coating of Ø ext. |
0.25 mm |
|
Tight buffered fiber, Ø ext. |
0.90 mm |
|
Aramid yarns |
|
|
PVC low-smoke flame-retardant OuterSheath, Ø ext. |
3 mm |
|
Jacketing color |
yellow |
|
Minimum bending radius (mm) |
30 |
|
Maximum load (N) |
300 |
|
Operating temperature |
-20 ºC a 70 ºC |
|
Type of fiber |
Singlemode |
|
Core/ Clad diameter (µm) |
10/125 |
|
Attenuation(dB/Km) |
|
|
Wavelength 1.310 nm |
<0.40 |
|
Wavelength 1.550 nm |
<0.25 |
|
Chromatic Dispersion (ps/km x nm) |
|
|
Wavelength 1.310 nm |
<3.5 |
|
Wavelength 1.550 nm |
<20.0 |
|
Other features, according to CCIT |
G.652 |
E2000/APC connector with zirconia ferrule and convex angled polishing at 8º with high return loss.
Besides its optimum optical features, this connector has been designed according to I-ETS 300671
standard with regard to tests of repeatability, impact, traction, etc.. This connector provides
a high connection density in distribution units when compared to standard connectors.
It is used for field interconnection by operator companies all over the world in CATV networks,
data voice networks..., where an excellent optical connection is required. The protective
plug is assembled with the connector body.
Specifications of the E2000/APC patch-cord
|
Feature |
Max. |
Typ. |
|
Wavelength: |
---- |
1.310/1.550 nm |
|
Insertion Loss (I.L.): |
<0.5 dB |
0.15 dB |
|
Return Loss (R.L.): |
>60 dB |
65 dB |
|
Stability of I.L. in the range -20º to +70ºC: |
<0.1 dB |
0.05 dB |
|
Stability of I.L. at 40ºC and 90% RH for 24 hours: |
<0.2 dB |
0.1 dB |
|
Repeatability |
P.I. < 0.1 dB in 1000 connections |
|
|
Minimum operating life |
1000 mating cycles |
|
|
Mechanic strength: fall, impact and vibrations |
<0.10 dB |
----- |
|
Tensile strenght |
----- |
8 kg |
|
|
