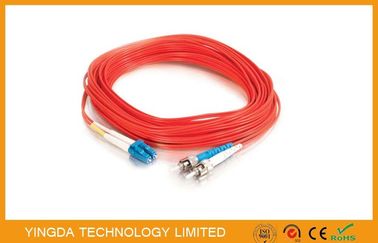

ST / PC - LC / UPC Patch Cord Multimode Fiber MM 50 (125) 3M 3mm LSZH

ST / PC - LC / UPC Patch Cord Multimode Fiber MM 50 (125) 3M 3mm LSZH

  • High Light

    fiber optic patch cable

    ,

    multimode patch cord

  • Connector
    LC/PC - ST/PC
  • Fiber Count
    Duplex
  • Insertion Loss
    <0.2dB
  • Cable Length
    On Customer Request
  • Cable Diameter
    2.0mm
  • Fiber Type
    6.5/125um OM1 Multimode
  • Package
    1pc / Plastic Bag
  • Cable Color
    Orange
  • Return Loss
    >35dB PC
  • Connector House Color
    White/blue (red / Black Or Beige)
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS ROHS
  • Model Number
    FPC-LL-STDX-20-15
  • Minimum Order Quantity
    500 pcs
  • Price
    negotiable
  • Packaging Details
    1 pc/ box, 150pcs / carton box
  • Delivery Time
    7days after payment
  • Payment Terms
    Western Union, T/T
  • Supply Ability
    60,000 pcs per month

ST / PC - LC / UPC Patch Cord Multimode Fiber MM 50 (125) 3M 3mm LSZH

ST /PC - LC /UPC Patch Cord Multimode Fiber MM 50(125) 3M 3mm LSZH





Fiber Optic patch cord is mainly used on patch panel or for the connection between outlets

and terminal equipment. The quality of connectors and fibers is mainly determined by the

insertion loss and return loss.





Feature

  • SM/MM are optional
  • Low insertion loss
  • Ultra low back reflection
  • 900um,2mm 3mm buffer cable
  • Meet Telcordia-GR-326 CORE,TIA/EIA and IEC standard
  • Individual PE bag, blister package
  • OEM customized



Cable structure



ST / PC - LC / UPC Patch Cord Multimode Fiber MM 50 (125) 3M 3mm LSZH 0





Application

  1. High bit rate data transmission
  2. Telecommunication
  3. Test instruments
  4. Active device termination
  5. LAN/WAN
  6. FTTx



Specification



Mode

SM

MM

Polish

UPC/APC

PC

Insertion Loss

Typical ≤0.2dB

Maximum ≤0.3dB

≤0.25dB

Return Loss

≥50DB(PC)

≥60DB(APC)

≥30dB

Interchangeability

≤0.2dB

Repeatability

≤0.1dB

Durability

≤0.2dB typical change, 1000 matings

Tensile Strength

> 10kg

Temperature

≤0.2dB (-40+85 sustain 100 hours)

Humidity

≤0.2dB  (+25+65 93 R.H.100 hours)



Ordering information



Boot (cable size)

Boot Color

Fiber Type

Cable number

Ferrule

Length

0.9mm

2.0mm

3.0mm

Black

Biege

Blue

Gray

White

Yellow

9/125um SM

50/125um MM

62.5/125um MM

OM3

OM4

Simplex

Duplex

Multi-fiber

PC

APC

Customized



ST / PC - LC / UPC Patch Cord Multimode Fiber MM 50 (125) 3M 3mm LSZH 1
