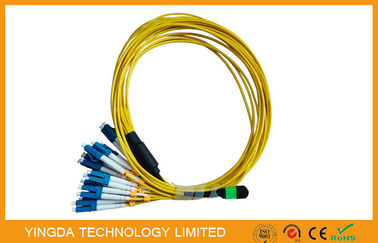

24 Cores Multi-Fiber Patch Cord MTP MPO Cable, MPO - LC Fan Out Patch Cord 2mm
MPO to LC Cable Description
MPO/MTP Fan-out Assemblies are designed for high density applications with require high
performance and speedy installation. MPO/MTP fan-out assemblies are numbered for full
trace-ability. Available in 12 core configuration, these space saving assemblies comes with
either MTP Male or MTP Female Connectors on one end and LC, SC, FC, or MT-RJ Connectors
on the other end. They are available in lengths are 10, 20, 30 meters, custom lengths are
available on request. They are available in 4, 6, 8, or 12 fiber ribbon configurations.
MTP MPO Cable Feature
MTP MPO Cable Specification
|
Parameter |
Polishing Connector (A) |
Polishing Connector (B) |
||
|
Polishing Connector |
MPO (MM) |
MPO APC |
SM (SC, LC, FC, MT-RJ) |
MM (SC, LC, FC, MT-RJ) |
|
Insertion Loss (IL) |
< 0.50 dB |
< 0.50 dB |
< 0.50 dB |
< 0.50 dB |
|
Return Loss (RL) |
> 30dB |
> 60dB |
> 50dB |
> 35dB |
|
Mating Cycles Delta IL |
< 0.2 dB after 500 mating cycles |
|||
|
Fiber Cable Type |
Single mode: G652D or G657A; Multi mode: OM1, OM2, OM3; |
|||
|
Cable Color |
Yellow for SM G652 and G657A fiber; Orange for MM OM1 and OM2 fiber; Aqua for MM OM3 fiber; |
|||
|
Cable Jacket |
Ribbon / Fan-out (LSZH / PVC) |
|||
|
Patch Cord Pull-out Force |
5N |
|||
|
Operating Temperature |
-20°C~+70°C |
|||
|
Storage Temperature |
-40°C~+80°C |
|||
Bare Fiber Colors
|
No |
8 Ribbon fiber |
No |
12 Ribbon fiber |
No |
24 Ribbon fiber |
|
1 |
Blue |
1 |
Blue |
1x13 |
Blue |
|
2 |
Orange |
2 |
Orange |
2x14 |
Orange |
|
3 |
Green |
3 |
Green |
3x15 |
Green |
|
4 |
Brown |
4 |
Brown |
4x16 |
Brown |
|
5 |
Gray |
5 |
Gray |
5x17 |
Gray |
|
6 |
White |
6 |
White |
6x18 |
White |
|
7 |
Red |
7 |
Red |
7x19 |
Red |
|
8 |
Black |
8 |
Black |
8x20 |
Black |
|
9 |
Yellow |
9 |
Yellow |
9x21 |
Yellow |
|
10 |
Violet |
10 |
Violet |
10x22 |
Violet |
|
11 |
Pink |
11 |
Pink |
11x23 |
Pink |
|
12 |
Aqua |
12 |
Aqua |
12x24 |
Aqua |
Order Information
|
P/N |
Description |
|
MPOmA-12LC-S62 |
MPO Fan-out patch cord, OS2 (G652D), MPO/APC Male-12xLC UPC 1m Yellow |
|
MPOmA-62LC-S62 |
MPO Fan-out patch cord, OS2 (G652D), MPO/APC Male-6xDuplex LC UPC 1m Yellow |
|
MPOmA-12LC-S67 |
MPO Fan-out patch cord, SM (G655A), MPO/APC Male-12xLC UPC 1m Yellow |
|
MPOmA-62LC-S67 |
MPO Fan-out patch cord, SM (G655A), MPO/APC Male-6xDuplex LC UPC 1m Yellow |
|
MPOm-12LC-OM1 |
MPO Fan-out patch cord, OM1 (62.5/125um), MPO Male-12xLC UPC 1m Orange |
|
MPOm-62LC-OM1 |
MPO Fan-out patch cord, OM1 (62.5/125um), MPO Male-6xDuplex LC UPC 1m Orange |
|
MPOm-12LC-OM2 |
MPO Fan-out patch cord, OM2 (50/125um), MPO Male-12xLC UPC 1m Orange |
|
MPOm-62LC-OM2 |
MPO Fan-out patch cord, OM2 (50/125um), MPO Male-6xDuplex LC UPC 1m Orange |
|
MPOm-12LC-OM3 |
MPO Fan-out patch cord, OM3 (50/125um), MPO Male-12x LC UPC 1m Orange |
|
MPOm-62LC-OM3 |
MPO Fan-out patch cord, OM3 (50/125um), MPO Male-6xDuplex LC UPC 1m Orange |
|
MPOm-12LC-OM4 |
MPO Fan-out patch cord, OM4, MPO Male-12x LC UPC 1m Orange |
|
MPOm-62LC-OM4 |
MPO Fan-out patch cord, OM4, MPO Male-6xDuplex LC UPC 1m Orange |
|
MPOm-62LC-S62-U |
MPO Fan-out patch cord, OS2 (G652D), MPO/APC Male-6xDuplex LC UPC 1m Yellow uni-boot |
|
MPOm-62LC-S67U |
MPO Fan-out patch cord, SM (G655A), MPO/APC Male-6xDuplex LC UPC 1m Yellow uni-boot |
|
MPOm-62LC-OM1-U |
MPO Fan-out patch cord, OM2 (50/125um), MPO Male-6xDuplex LC UPC 1m Orange uni-boot |
|
MPOm-62LC-OM2-U |
MPO Fan-out patch cord, OM1 (62.5/125um), MPO Male-6xDuplex LC UPC 1m Orange uni-boot |
|
MPOm-62LC-OM3-U |
MPO Fan-out patch cord, OM3 (50/125um), MPO Male-6xDuplex LC UPC 1m Orange uni-boot |
|
MPOm-62LC-OM4-U |
MPO Fan-out patch cord, OM4 MPO Male-6xDuplex LC UPC 1m Orange uni-boot |
Connector type: MTP MPO LC or Customized
Cable Number: 4-fiber,8-fiber,12-fiber,16-fiber,24-fiber or more
MPO to LC Connector Jumper Application
