16 Core CTO NAP Optical Fiber Splitter Distribution Box Enclosure PP IP65 PP+GF Drop Cable Ports
-
High Light
fiber optic closure
,optical distribution box
-
Capacity16 Fiber Single Core
-
Cable InletMid Span: 2x 8-15mm; 2 Derivation Cable 6-8mm
-
Dimension295*245*130mm
-
MaterialPP + Glass Fiber
-
ColorBlack
-
ApplicationFTTH FTTX ODN PON Network
-
Adapter18pcs SC Adaptors
-
Cable Exit16 FTTH Flat Drop Cable 2*3mm Rubber Seal
-
PLC Splitter1x8 1x16 Mini Splitter
-
Waterproof GradeIP65
-
Place of Originchina
-
Brand NameYINGDA
-
CertificationISO SGS CE ROHS
-
Model NumberFDB0216B
-
Minimum Order Quantity100 PCS
-
PriceNEGOTIABLE
-
Packaging Details1 pc/box, 10 pcs /carton box
-
Delivery Time5-8 working days
-
Payment TermsWestern Union, T/T, L/C
16 Core CTO NAP Optical Fiber Splitter Distribution Box Enclosure PP IP65 PP+GF Drop Cable Ports
16 Core CTO NAP Optical Fiber Splitter Distribution Box Enclosure PP IP65 PP+GF Drop Cable Ports

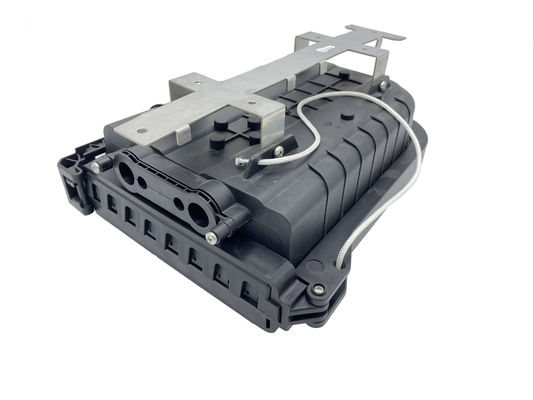

FDB0216B Fiber Optic Joint Box / splitter distribution box combines the functionality of a local convergence cabinet with UDM terminal. It can house the splitter and allows for pigtail splicing of distribution/drop cables as needed, this box specially design for FTTH
drop cable and indoor and outdoor cable un-cut to go through the box.
Features
- Box totally closed with rubber seal and bracket, dust proof waterproof protection class IP65
- Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance
- FTTH outdoor wall mount or pole mount
- High quality engineering plastic, all metal parts stainless steel, life span>20years
- 2layer splice tray set, 1 for adapter and splitter tube fix, the other for fusion, storage and management
- Good cable clamp and fixture for entry and exit, and large redundant fiber routing area with reasonable bend radius
Specification
| Model | FDB0216B |
| Dimension (A*B*C) | 295*245*130mm |
| Max.Capacity | 16 cores (single fiber) |
| Cable ports | 2mid span, 16 out |
| Cable diameter |
2 uncut ports: Φ8-Φ15mm, or Φ6-Φ8mm; 16 drop cable ports: 2*3mm or 4.5*5.3mm |
| Splitter quantity | 1x16 or 2pc 1x8 steel tube |
| Material | PP+GF |
Standard Accessory
Expansion screws, waterproof bracket, nylon tie, sleeve, buffer tube, wall mount metal sheet, etc.
Key word: ODB box, Optical distribution box, CTO
