FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box

FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box
FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box
FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box

Large Image :  FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box

Product Details:
Place of Origin: china
Brand Name: YINGDA
Certification: ISO SGS CE ROHS
Model Number: FTB002
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: NEGOTIABLE
Packaging Details: 1 pc per box, 48 pcs per carton shipping box
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram

FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box

Description
Capacity: 12 Fibers Bunchy Cable Inport: 2 PCS
Dimension: 198*112*45 Mm Input Cable Diameter: 16 Mm
Material: High Strength Engineer Plastic PC Color: Gray
Application: FTTH FTTB Indoor Use Splice Tray: Maximum 2 Pcs, Each 6 Fibers
Special: Un-cut Cable Go Through The Box Output Diameter: 12 Small Ports For Pigtails
High Light:

fiber optic junction box

,

fiber optic distribution box

FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box





MODEL: FTB002





Description

This Fiber Optic Termination Box is suitable for jointing fiber cable and pigtail, and it protects

fiber optic splices and helps to distribute. The termination box is either a wall-Mounting type

or a desktop type, which is mainly used in telecommunication equipment room and network

equipment room.





Features

1. Light weight, small size, easy installation.

2. Provide splice connection protection of fiber cable and pigtail.

3. Made of engineering plastic material PC, which has mechanical strength, therefore it is

    reliable and long lasting.

4. Slide-N-Lock fiber optic splice tray with its opening angle above 90. Therefore it is easy for

     installation and maintenance.

5. Can be used for un-cut cable go through the box.



Specification



Model

No of entry/

exit ports

Splice

trays

Max. capacity

Dimension

(LxWxH)mm

FTB-002

2 cable ports + 12 small ports for pigtails

1*12F/

2*6F

12

198*112*45



Applicable fiber cables



FTB002 is applicable for splicing 2 pieces of fiber cable with max. Diameter φ16mm.





Package information



Model

CTN qty

CTN size/cm

GW.W./kg

FTB-002

48 pcs

50*37*44

23



Standard Accessory:



Cover, Base, splice tray, Heat shrink protective sleeves, Strength member fixtures,

Cable Clamps,Strain relief combs, PVC tape, Cable ties, Labeling paper,

Wall mounting kits

FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box 0



More product show:

FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box 1FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box 2

                          1 piece / box                                                  box with user manual (english)

FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box 3FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box 4

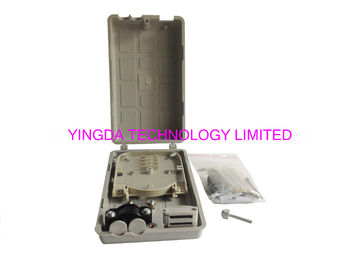

 label --  box model:FTB002, max capacity:12fibers               termination box overiview



FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box 5FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box 6

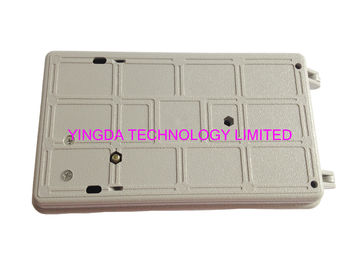

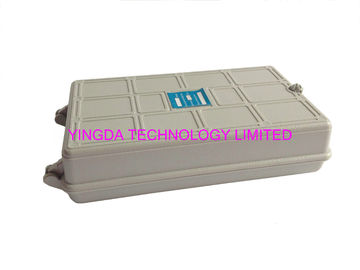

                      front side view                                                             back side view

FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box 7FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box 8

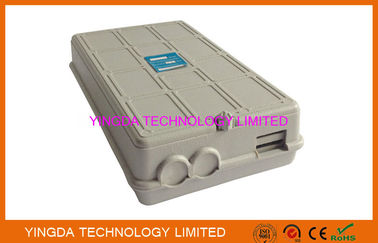

front cable ports: 2 ports: diameter 16mm, 12 ports: pigtails       pigtails ourports with rubber sealing
