FTTH EPON Network Fiber Optic Distribution Boxes, Plastic 24 Ports Fiber Optic Splice Box
  • name
  • name
  • name
  • name
  • name

FTTH EPON Network Fiber Optic Distribution Boxes, Plastic 24 Ports Fiber Optic Splice Box

MOQ: 100PCS
Price: 0.18USD-4.29USD
Standard Packaging: 1 pc per box, 32 pcs per carton shipping box
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union, MoneyGram
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO,CE, ROHS
Model Number
FTB001
Capacity:
2splice Tray, Max. 24cores
Cable Inport:
2 PCS With Blocks
Dimension:
264x154x56mm
Cable Entry:
16mm Or 11mm Diameter
Material:
High Strength Plastic PC
Color:
Grey
Application:
FTTH Indoor Wall Mount
Adapter:
8pcs SC Coupler, If Need
Special:
Un-cut Cable Go Through The Box
Output Diameter:
24 Small Ports For Pigtails 2mm 0.9mm
Highlight:

fiber optic terminal box

,

fiber optic distribution box

Product Description

FTTH EPON Network Fiber Optic Distribution Boxes, Plastic 24 Ports Fiber Optic Splice Box





FTB001 Fiber Optic Termination Box is suitable for jointing fiber cable and pigtail, and it protects fiber optic splices and helps to distribute.

The termination box is either a wall-Mounting type or a desktop type,  which is mainly used in telecommunication equipment room and network equipment room.



Specification:

Model

Q'ty. of entry/exit ports

Splice

 trays

Max capacity

SC adapter

Dimension

(LxWxH)

FTB-001-8SC

2 cable ports + 24

small ports for pigtails

1

12

8

264x154x56mm

FTB-001

2

24

no

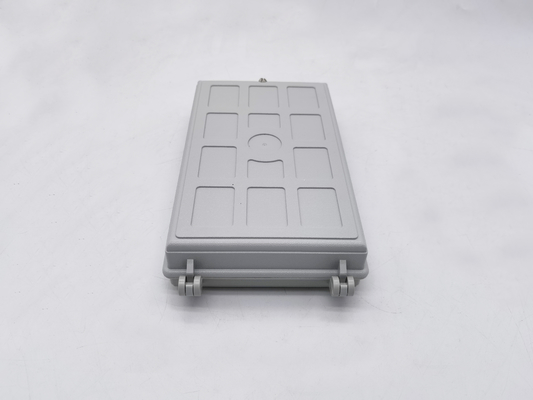

FTTH EPON Network Fiber Optic Distribution Boxes, Plastic 24 Ports Fiber Optic Splice Box  0

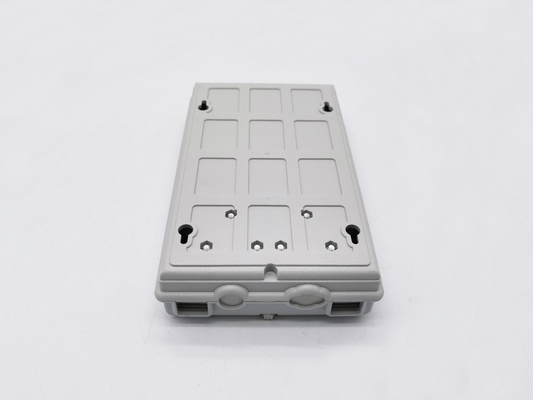

FTTH EPON Network Fiber Optic Distribution Boxes, Plastic 24 Ports Fiber Optic Splice Box  1



Features

Light weight, small size, large capacity to 24 cores

Provide splice connection protection of fiber cable and pigtail.

Made of PC high strength engineering plastic material, good mechanical strength, reliable and long lasting.

Slide N Lock fiber optic splice tray with its opening angle above 90 degree, easy for installation and maintenance.

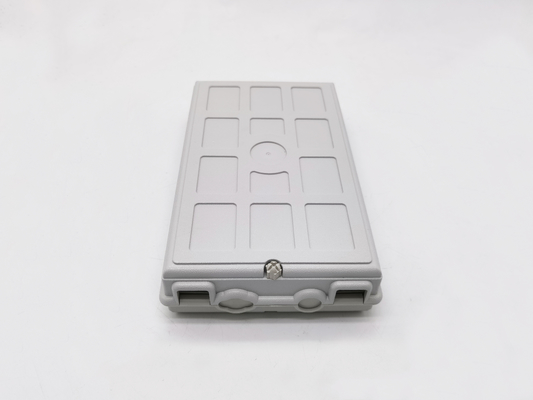

FTTH EPON Network Fiber Optic Distribution Boxes, Plastic 24 Ports Fiber Optic Splice Box  2

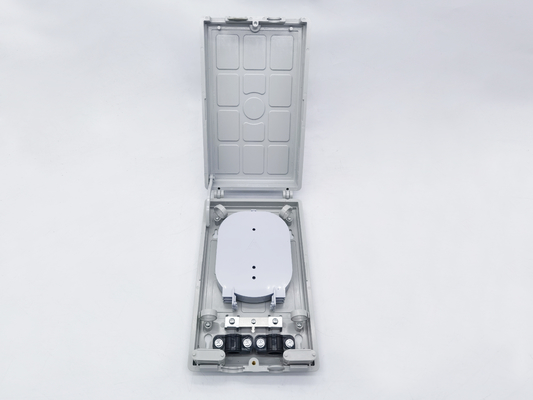

FTTH EPON Network Fiber Optic Distribution Boxes, Plastic 24 Ports Fiber Optic Splice Box  3FTTH EPON Network Fiber Optic Distribution Boxes, Plastic 24 Ports Fiber Optic Splice Box  4



Application

Suitable to connect the drop (or pigtails) to the raiser fibers splices.

Indoor wall Mount IP54

FTTx, FTTH, FTTB, FTTO, Telecom network, CATV.



FTTH EPON Network Fiber Optic Distribution Boxes, Plastic 24 Ports Fiber Optic Splice Box  5



Model CTN qty CTN size/cm GW.W./kg
FTB-001-8SC 32 65*30*56.5 24
FTB-001 32 65*30*56.5 24

Empty closure box including:

Cover, Base, splice tray, Heat shrink protective sleeves, Strength member fixtures, Cable Clamps, Strain relief combs, PVC tape, Cable ties, Labeling paper, Wall mounting kits, Tray cover

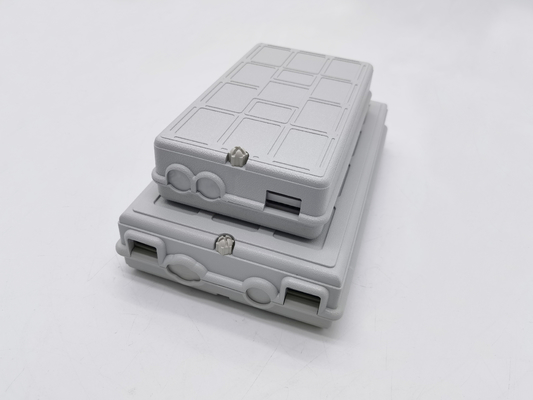

If you need smaller box, suggest FTB002 as below:

https://www.fibreopticbox.com/buy-FTB002.html?keyword=FTB002
