Indoor Drop Cable Fiber Optic Termination Box Rack Mount 2 Cores ISO SGS CE ROHS

Indoor Drop Cable Fiber Optic Termination Box Rack Mount 2 Cores ISO SGS CE ROHS

  • High Light

    fiber optic junction box

    ,

    fiber optic distribution box

  • Capacity
    2 Cores Single Fiber
  • Cable Port
    1in,1out
  • Dimension
    205*115*35mm
  • Cable Diameter
    7-10mm
  • Material
    ABS PC Plastic
  • Color
    White
  • Application
    Indoor Wall Mount
  • Adapter
    SC Simplex Adapter, LC Duplex Adapter
  • Net Weight
    0.26kgs
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS CE ROHS
  • Model Number
    FTB0102
  • Minimum Order Quantity
    100PCS
  • Price
    NEGOTIABLE
  • Packaging Details
    1 pc per box, 50pcs per carton shipping box
  • Delivery Time
    5-8 working days
  • Payment Terms
    Western Union, T/T, L/C

Indoor Drop Cable Fiber Optic Termination Box Rack Mount 2 Cores ISO SGS CE ROHS

Indoor Drop Cable Fiber Optic Termination Box, Sc 2 Port Rack Mount Box

MODEL: FTB0102



Sell point:

1. this box can use for indoor cable 0.9mm,2.0mm 3.0mm

2. this box can use mechnical splicer

3.  this box can use fast connector (also called field installable connector mechanical connector)

4. this box can install 60mm sleeve

4. wall mount with screws and nylon tie





Description

This type customer terminal box is widely used in the end termination of residential buildings

and villas in FTTH network to fix and splice with pigtails; it can be installed on the wall;it may

adapt variety of optical connection styles; Optical fiber can be managed effectively.





Features

  • Small size, light weight, pleasing in appearance
  • Can be installed on the wall with mechanical protective function
  • May adapt variety of optical connection styles.
  • Optical fiber can be managed effectively
  • Set strengthen device and fiber optic cable mounting seat
  • SC 2 cores,LC 4 cores
  • Max capacity for SC 2 cores or LC 4 cores
  • Suitable for indoor wall mount



Specifications

Item FTB0102
Dimension(mm) H205×W115×D35
Weight(Kg) 0.25
Cable diameter (mm) Φ7~Φ14
Cable port 2 holes
Max capacity of splice tray 2-4 (single fiber)
Max No of splice tray 1
Max capacity of cable 4 (single fiber)



More pictures

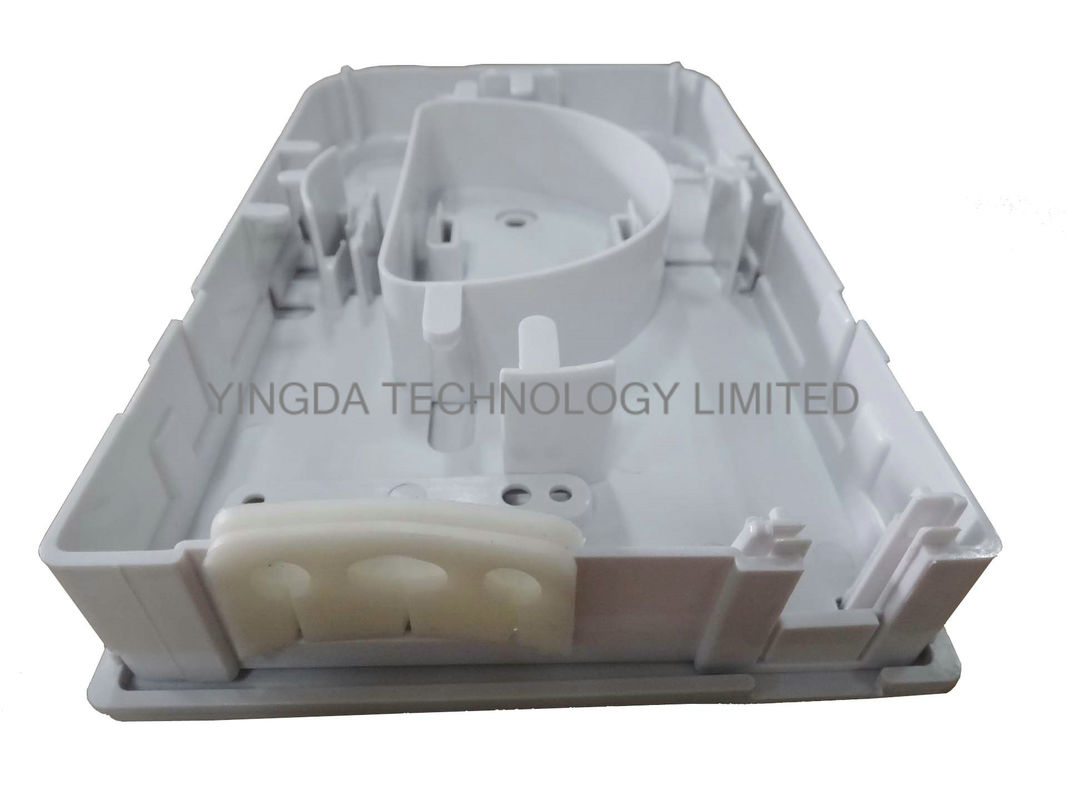

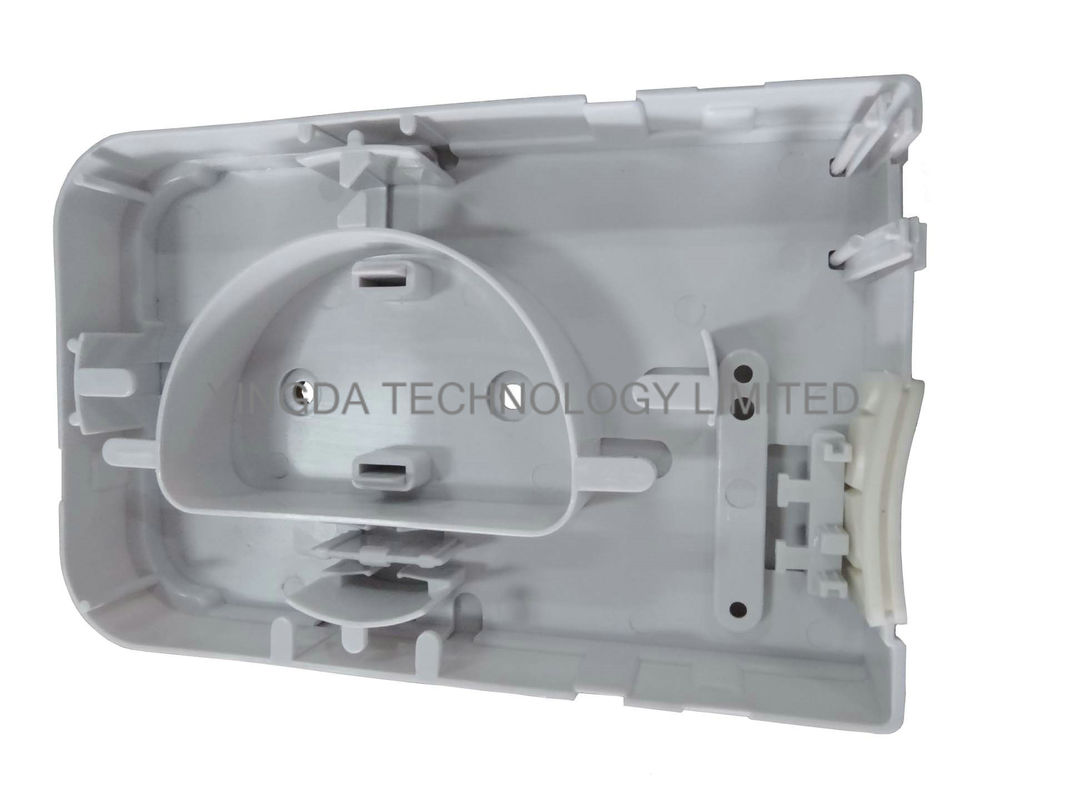

Empty box:

Indoor Drop Cable Fiber Optic Termination Box Rack Mount 2 Cores ISO SGS CE ROHS 0Indoor Drop Cable Fiber Optic Termination Box Rack Mount 2 Cores ISO SGS CE ROHS 1Indoor Drop Cable Fiber Optic Termination Box Rack Mount 2 Cores ISO SGS CE ROHS 2

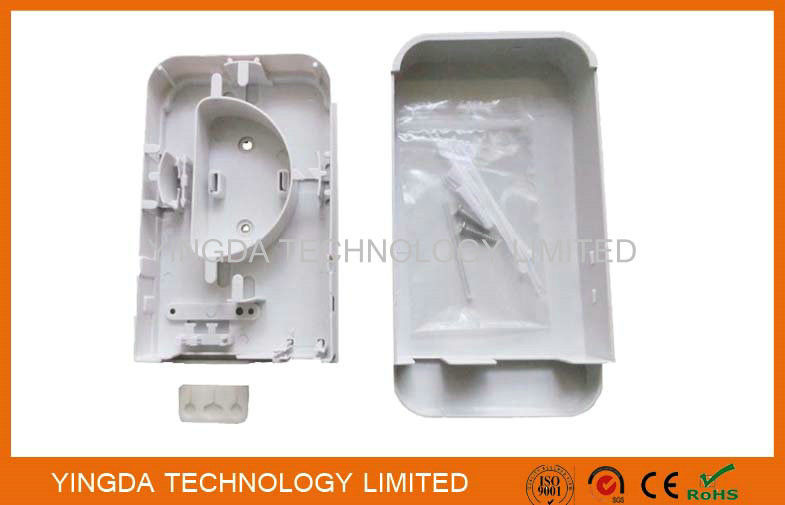

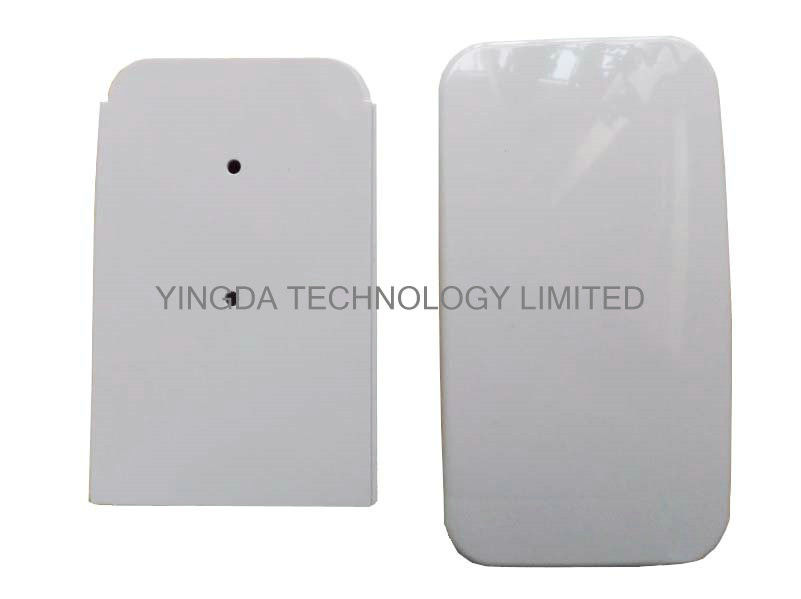

                 cover 1                                   cover 2                                 cover and body





FTB0102 fully load with 1 piece of SC/upc pigtail 1mtr 0.9mm, 1 piece SC fiber adpater



Indoor Drop Cable Fiber Optic Termination Box Rack Mount 2 Cores ISO SGS CE ROHS 3Indoor Drop Cable Fiber Optic Termination Box Rack Mount 2 Cores ISO SGS CE ROHS 4

                                  overview                                                        inside view





Kit content



Item Type Quantity
Fiber protective sleeves 60mm According to cores
Cable tie 60mm 10×splice tray
Nails of installation Nail (exapansion screws) 2 pcs





Packing information



Model Inner carton dimension (mm) Inner carton weight(kg) Outer carton dimension (mm) Outer carton weight(kg) No of units per carton(pcs)
FTB-0102 225×125×40 0.25 540×350×370 15.5 50






Installation tool

2.1 Knife

2.2 Screwdriver

2.3 Plier
