Small White Fiber Optic Enclosures Wall Mount With FC , SC , ST , LC Adapters

Small White Fiber Optic Enclosures Wall Mount With FC , SC , ST , LC Adapters

  • High Light

    fiber optic terminal box

    ,

    fiber optic distribution box

  • Material
    Metal
  • Color
    White
  • Capacity
    4 Fibers
  • Adapter
    FC,SC,ST,LC adapters
  • Output Port
    Adapter Port
  • Size
    140*105*27 Mm
  • Cable Diameter
    0.9MM 2mm 3mm Indoor Cable
  • Cable Port
    2 Pcs
  • Cable Type
    Single Mode, Multi Mode, OM3 10G, OM4
  • Fiber Type
    G652D G657A G655
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS ROHS
  • Model Number
    FTB104
  • Minimum Order Quantity
    100 pcs
  • Price
    negotiable
  • Packaging Details
    1pc per plastic bag, 50 pcs per carton box
  • Delivery Time
    5-8days after payment
  • Supply Ability
    500,000 pcs per month

Small White Fiber Optic Enclosures Wall Mount With FC , SC , ST , LC Adapters

4 Port Adapter Metal SC Fiber Optic Termination Box, Wall Mount Terminal Box

Model: FTB104





Description

FTB104 metal material white color customer terminal box is used in the end termination of

residential buildings and villas, it is used to fix and splice with pigtails SC/upc or SC/APC,

LC fiber optic connector can be used according to customer request. It contain 2pcs cable

port input, 4output for adapters with cable gland.



Features

  • small size,light weight, pleasing in appearance
  • wall mounted with mechanical protection function
  • max fiber capacity 4 fibers,4 adapter output square standard SC
  • available for FC,SC,ST,LC adapters
  • hinge and convenient press-pull button lock design
  • OEM,customer logo or customer package label or shipping box can be made.



 Specifications



Model

Size(H*W*D)mm

Cable ports

Max capacity of splice

FTB104

140*105*27

2 holes

4 cores



Packing information

Model

CTN qty/pc

CTN size/cm

G.w./kg

FTB104

50

73*31.5*27.5

22.80





Product show:

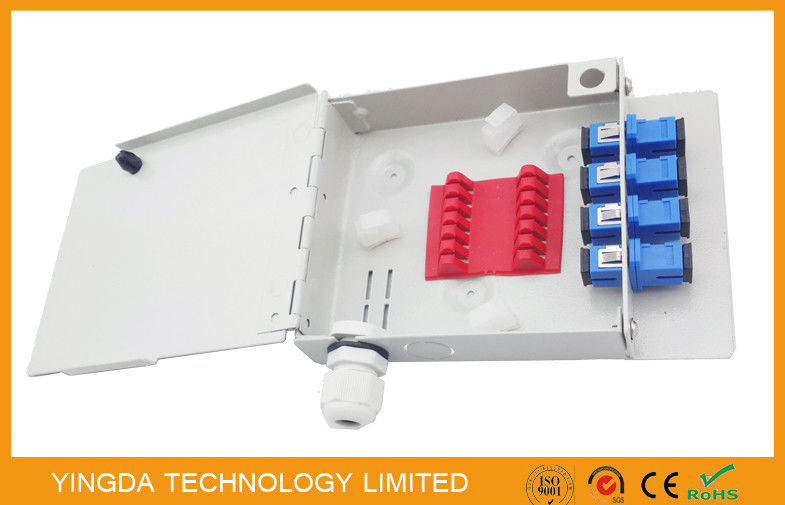

1. pre-assemly inside box with 4pcs SC pigtails 0.9mm single mode, 4 pcs SC / UPC fiber optic adapters, and with cable sealing rubber at the back 2 pcs cable ports. Adapters installed with screws, safe and stable.



Small White Fiber Optic Enclosures Wall Mount With FC , SC , ST , LC Adapters 0

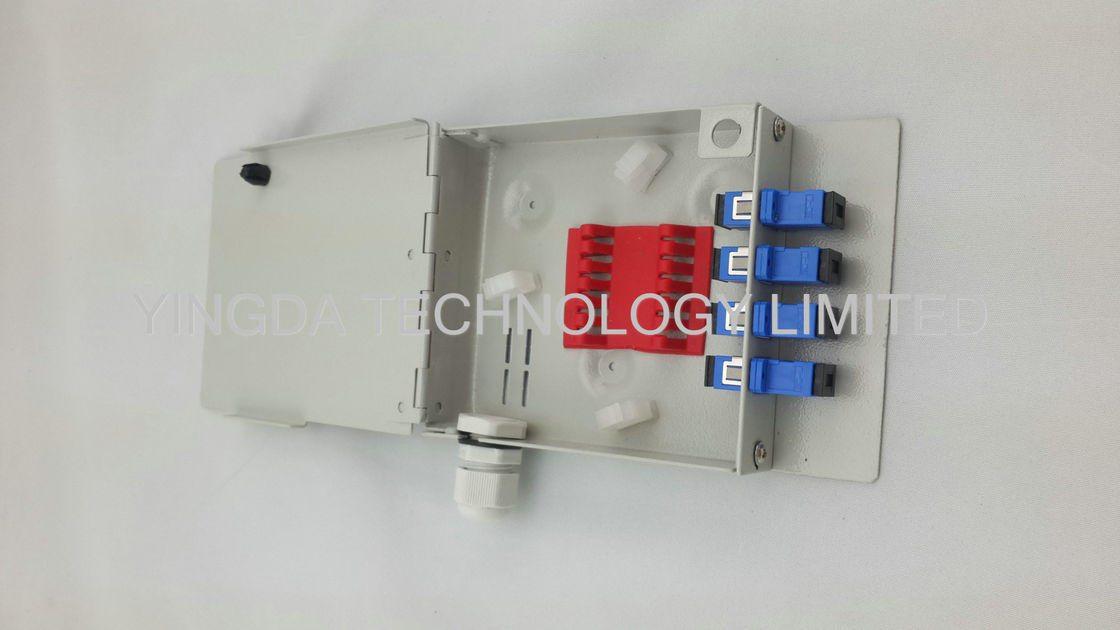

2. empty product outer apearance, SC port 4 pcs, click on



Small White Fiber Optic Enclosures Wall Mount With FC , SC , ST , LC Adapters 1



3. empty product details with accessories:

  • cable fix circle plastic
  • heat shrinkable fixture,
  • sleeve 60mm ( heat shrinkable tube )
  • wall mount expansion screws
  • nylon tie
  • adapter mounting screws
  • cable gland
  • cable port sealing fixture
