FTTH 1 Port Slide In Lock Socket Panel SC Fiber Optic Termination Box White Wall Mount

FTTH 1 Port Slide In Lock Socket Panel SC Fiber Optic Termination Box White Wall Mount

  • High Light

    fiber optic terminal box

    ,

    fiber optic junction box

  • Material
    ABS + PC
  • Color
    White
  • Capacity
    2 Core
  • Adapter
    1pcs SC Simplex, 1 Pcs LC Duplex Coupler
  • Output Port
    Adapter Or Indoor Cable, Ftth Drop Cable
  • Size
    90*120*25 Mm
  • Cable Diameter
    <6mm
  • Application
    Wall Mount
  • Cable Port
    1in 1 Out
  • Feature
    Flame Retardant
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS ROHS
  • Model Number
    FTB86D
  • Minimum Order Quantity
    100 pcs
  • Price
    negotiable
  • Packaging Details
    1pc per plastic bag, 260pcs per carton box
  • Delivery Time
    5-8days after payment
  • Supply Ability
    500,000 pcs per month

FTTH 1 Port Slide In Lock Socket Panel SC Fiber Optic Termination Box White Wall Mount

FTTH 1 Port Slide In Lock Socket Panel SC Fiber Optic Termination Box ABS White Wall Mount Box





Plastic ABS material socket panel FTB86D is a compact size fiber terminal for use at the final fiber

termination point in the customer premises. It provide mechanical protection and managed fiber

control in an attractive format. A variety of possible fiber termination techniques are accommodated.

FTTH 1 Port Slide In Lock Socket Panel SC Fiber Optic Termination Box White Wall Mount 0

Features

  1. Splicing to factory terminated pigtails
  2. Positive fiber management
  3. Direct termination with field installation connectors
  4. Attractive design for indoor use
  5. Can hold up to 4 mechanical splicer, fusion splice protectors or mechanical SC connectors
  6. Splice cable to cable
  7. Compatible with 2 SC simplex adapters/LC duplex adapters
  8. Multiple cable entry points(cable diameter ≤6mm
  9. Can be wall mounted and mounted on wall boxes with fixation points of 60mm

FTTH 1 Port Slide In Lock Socket Panel SC Fiber Optic Termination Box White Wall Mount 1

Specification



Model

Socket panel FTB86D

Dimension/mm

90*120*25

Cable diameter/mm

Φ3

Cable ports

2

Max capacity of splice

1 single fiber





Pack information



Model

Carton size/cm

Carton qty/pc

G.W./kg

FTB86D

53*39*53.5

260

23

FTTH 1 Port Slide In Lock Socket Panel SC Fiber Optic Termination Box White Wall Mount 2

Kit content



Item Type Quantity
Fiber protective sleeves 60mm According to cores
Cable tie 60mm 10×splice tray
Nails of installation Nail 2pcs

FTTH 1 Port Slide In Lock Socket Panel SC Fiber Optic Termination Box White Wall Mount 3

More product show:



1. ABS empty box white color



FTTH 1 Port Slide In Lock Socket Panel SC Fiber Optic Termination Box White Wall Mount 4FTTH 1 Port Slide In Lock Socket Panel SC Fiber Optic Termination Box White Wall Mount 5

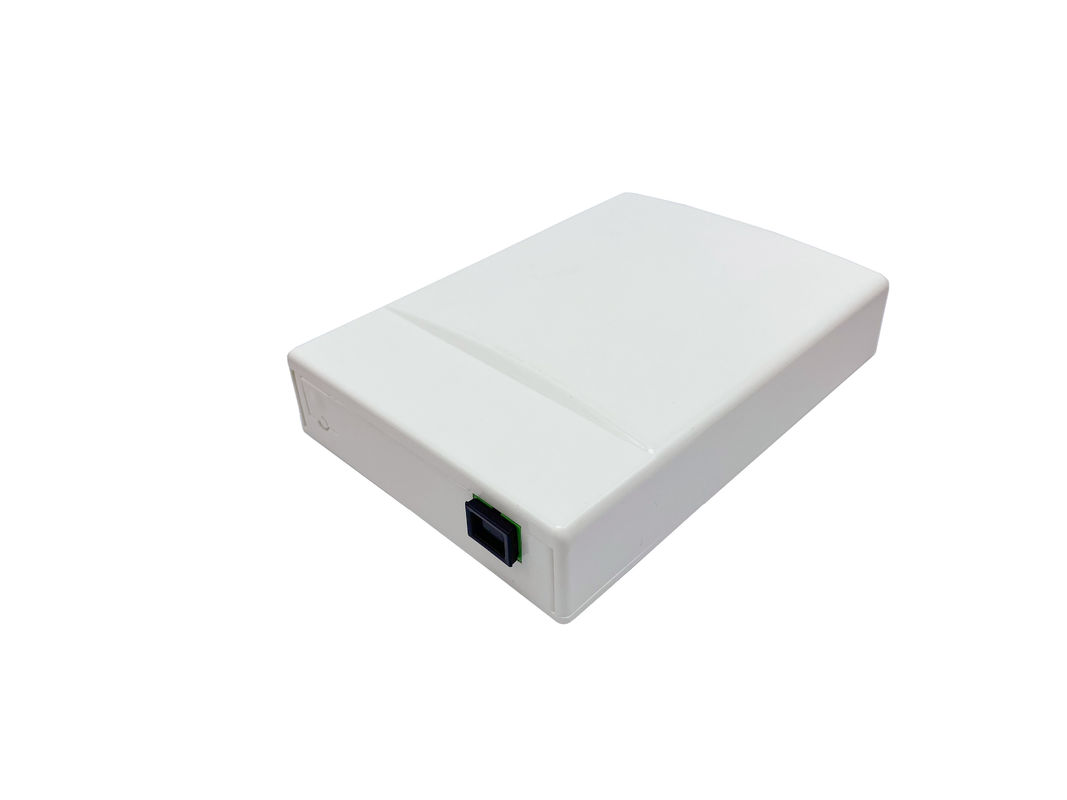

FTB86D socket panel front: 1port for cable entry, 1 port for SC adapter

FTTH 1 Port Slide In Lock Socket Panel SC Fiber Optic Termination Box White Wall Mount 6FTTH 1 Port Slide In Lock Socket Panel SC Fiber Optic Termination Box White Wall Mount 7

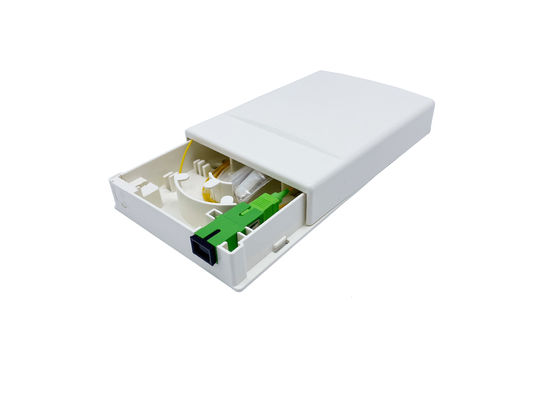

the whole box is slide in clock, with self-clip design, no need keys or wrench, easy to open and close. totally closed.

FTTH 1 Port Slide In Lock Socket Panel SC Fiber Optic Termination Box White Wall Mount 8FTTH 1 Port Slide In Lock Socket Panel SC Fiber Optic Termination Box White Wall Mount 9

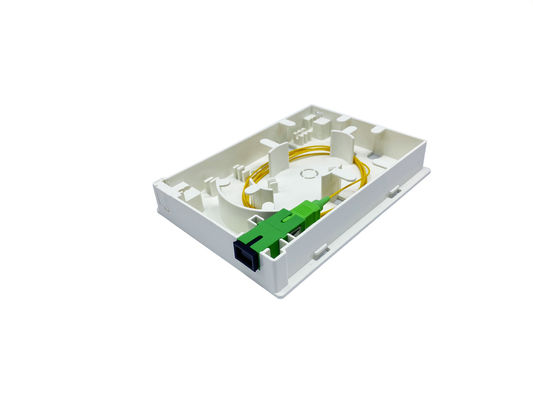

this fiber optic termination box body have fiber cable routing place and enough space for fiber storage;

it is long enough to put a sleeve 60mm or mechanical splicer, it is longer than the normal desktop 86*86mm faceplate;

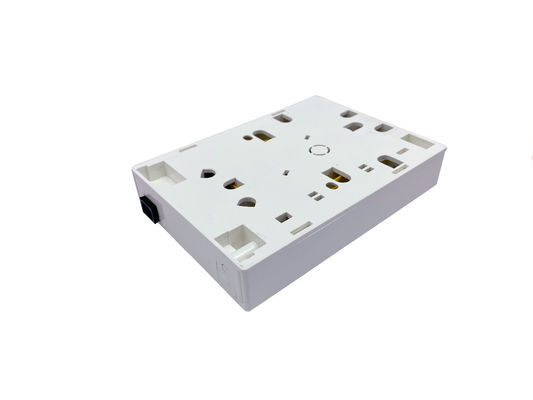

it has 2 pieces of round wall mount holes for expansion screws.



FTTH 1 Port Slide In Lock Socket Panel SC Fiber Optic Termination Box White Wall Mount 10

cable prots with block, and all box is equipped compliant screws for installation.





2. The width of the customer terminal box



FTTH 1 Port Slide In Lock Socket Panel SC Fiber Optic Termination Box White Wall Mount 11



3. end user terminal box inner size



FTTH 1 Port Slide In Lock Socket Panel SC Fiber Optic Termination Box White Wall Mount 12
