2 Port FTTH Indoor Fiber Optic Termination Box Unibody Wall Outlet 86*86*23mm

2 Port FTTH Indoor Fiber Optic Termination Box Unibody Wall Outlet 86*86*23mm

  • High Light

    fiber optic junction box

    ,

    fiber optic distribution box

  • Material
    ABS+PC
  • Color
    White
  • Capacity
    2 Core
  • Adapter
    2 SC Simplex, 2 LC Duplex
  • Size
    86*86*23mm
  • Cable Diameter
    5mm
  • Application
    FTTH FTTX FTTB ODN LAN WAN Network
  • Cable Port
    1in,1out
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS ROHS
  • Model Number
    FTB86B
  • Minimum Order Quantity
    500 pcs
  • Price
    $0.2/pc
  • Packaging Details
    1pc per plastic bag, 400pcs per carton box
  • Delivery Time
    5-8days after payment
  • Supply Ability
    500,000 pcs per month

2 Port FTTH Indoor Fiber Optic Termination Box Unibody Wall Outlet 86*86*23mm

2 Port FTTH Indoor Fiber Optic Termination Box Unibody Wall Outlet 86*86*23mm

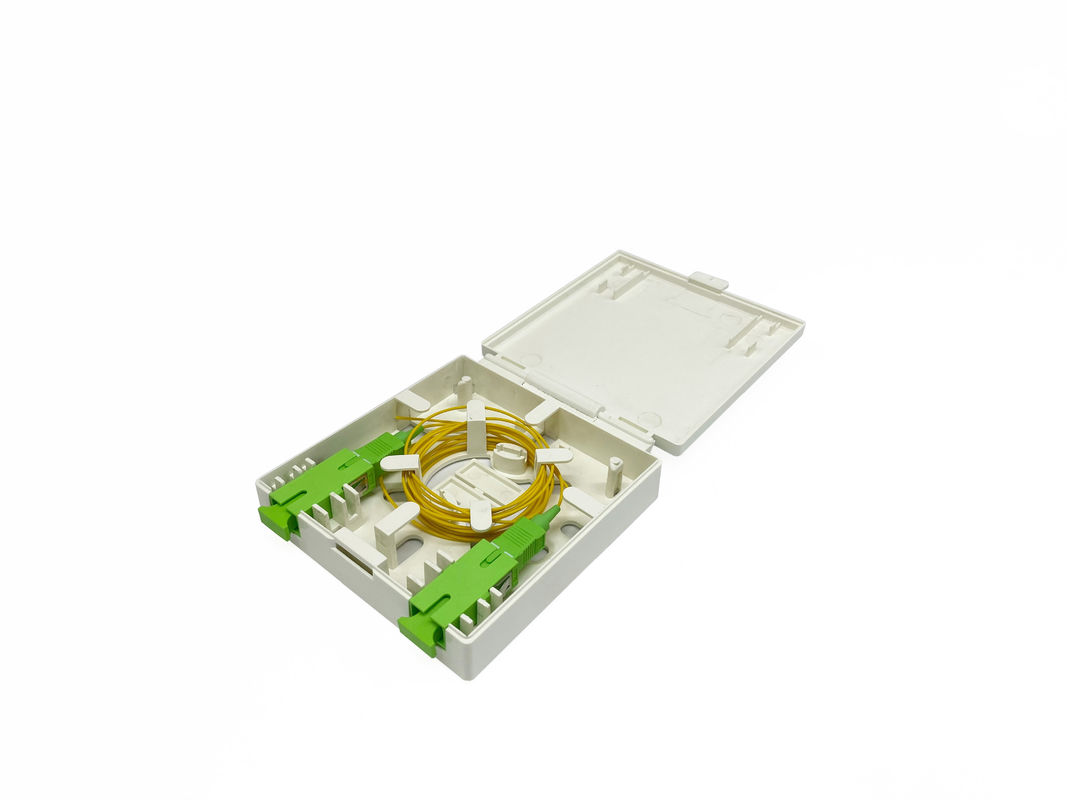

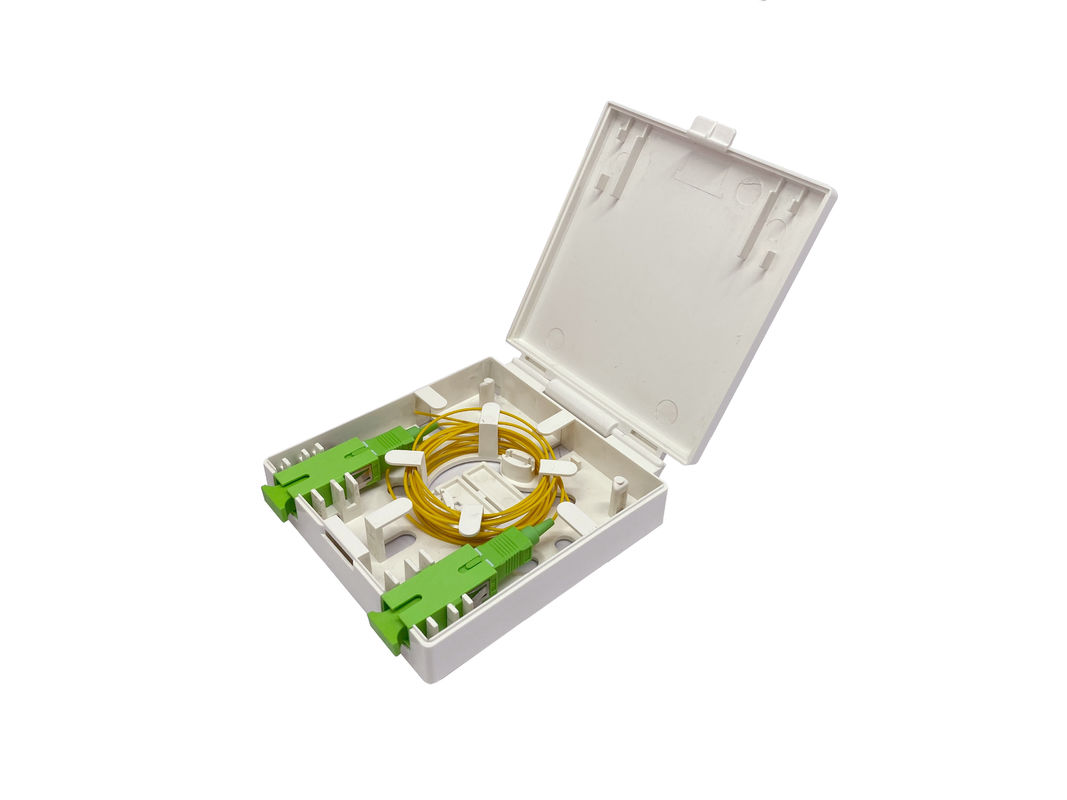

The FTB86 customer terminal box socket panel are used in the end termination of residential buildings

 and villas or business applications;It can fix and splice with pigtails,max hold 2 pcs SC adapters, it may

adaptvariety of optical connection styles and the optical fiber can be managed effectively and quickly

installed within an office,house or communication room environment.

2 Port FTTH Indoor Fiber Optic Termination Box Unibody Wall Outlet 86*86*23mm 02 Port FTTH Indoor Fiber Optic Termination Box Unibody Wall Outlet 86*86*23mm 1

Advantage:

  • Economic design
  • Ability to allow cables to enter from both sides of the unit
  • Removable cover for easy access
  • compact,low profile, wall mounted unit used for small and large business premise



Technical Data:

  1. Number of input cable ports:1
  2. Maximum input cable diameter(mm):5mm
  3. Maximum Capacity: 2 fibres
  4. Maximum no. of customer feeds: 2 patch cords
  5. Dimension: 86 x 86 x 23mm
  6. Material:ABS or PC
  7. FTTH drop cable or indoor cable can be used.



Features

Used in FTTH indoor application,home or work area

Provide users with optical access or data access

Suitable for 2pcs SC adapters

Store surplus fiber inside,easy for operation



Application

1. FTTH / FTTX system

2. LAN WAN MAN network

3. GPON ODN network

4. Telecommunication



Specifications



Model

Dimension

(H*W*D)

Cable diameter

Cable ports

Max capacity

FTB86

86*86*23mm

2.0*3.0mm drop cable

or indoor cable 0.9mm,2.0mm,3.0mm

2ports: 1in,1out

2core (single fiber)



Pack information



Model

Carton size/cm

Carton qty/pc

G.W./kg

FTB86

56*36*62

400

23.5



More product show:

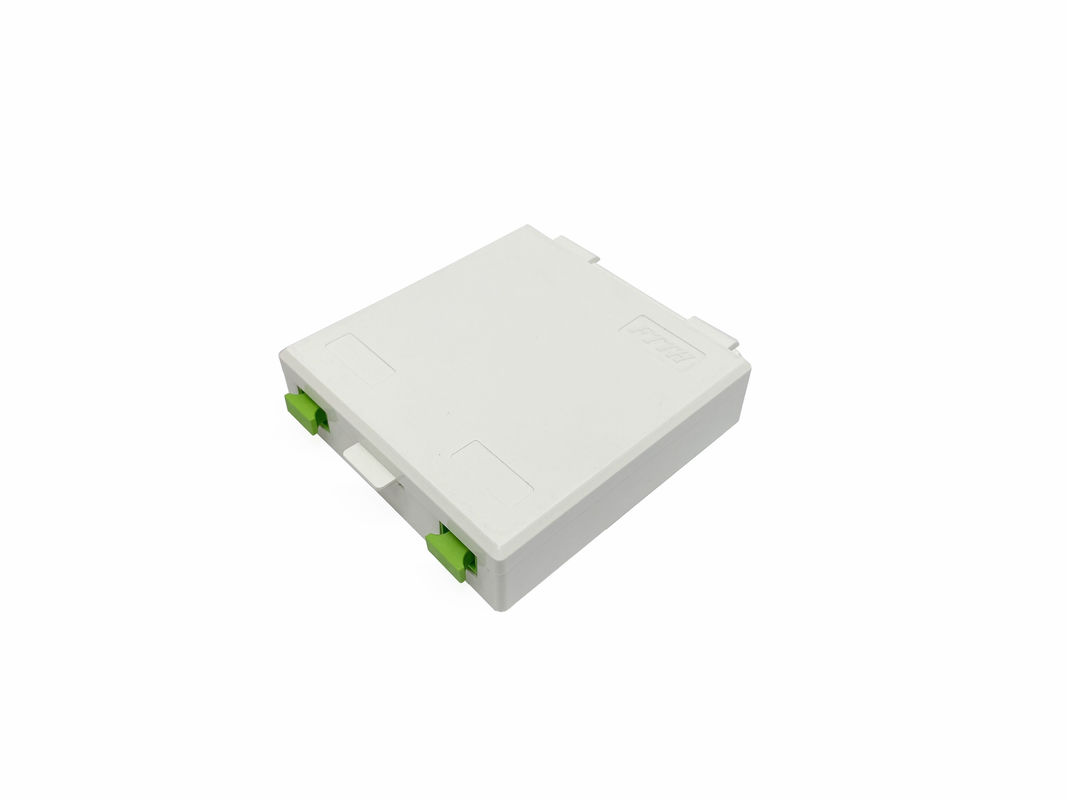

1. 1 pc package with plastic bag



2 Port FTTH Indoor Fiber Optic Termination Box Unibody Wall Outlet 86*86*23mm 2

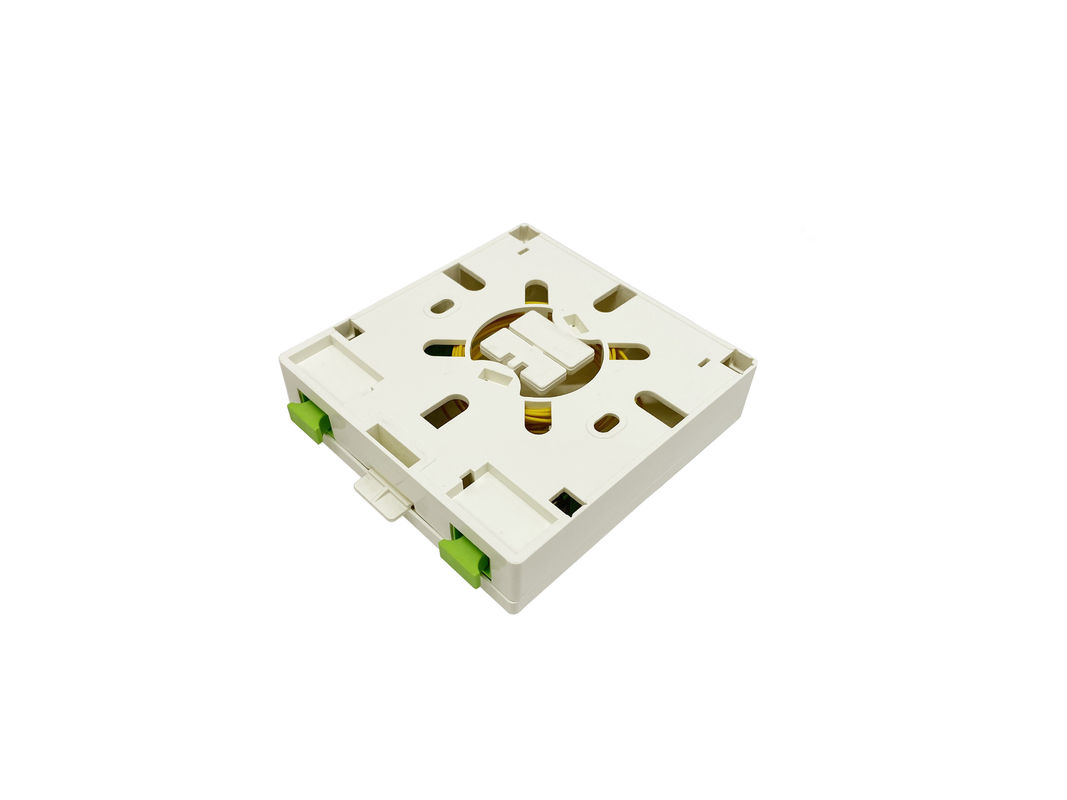

2. socket panel back side



2 Port FTTH Indoor Fiber Optic Termination Box Unibody Wall Outlet 86*86*23mm 3



3. package with strong shipping carton box, good to environment and transportation



2 Port FTTH Indoor Fiber Optic Termination Box Unibody Wall Outlet 86*86*23mm 4
