2ports SC LC Fiber Optic Termination Box For Indoor Wall Mounted With Cassette White ABS Material

FTTH Fiber Socket is specially designed for FTTH (Fiber to The Home) for indoor application.

It is an indoor terminal applied in the FTTX network to connect the drop cable and ONU devices

through fiber port. Socket Panel FTB86L covers the capacity of 1core, 2cores and 4 cores and

supports splicing, mechanical connection and FMC, wall mounted installation.

FTB86L Fiber Optic Termination box FTB86L Features:

1. Simple operation
2. Flexible termination methods: splicing + pigtail, FTTH fast connector on site.
3. Use 2pcs SC simplex or LC duplex adapter, flangeless ( no ears )
4. Max capacity: 4fiber single fusion splice
5. Clip design, easy to open and repair
6. Compact size, light weight
7. FTTH drop cable suitable
8. Support OEM Logo

With 2pcs SC SX adapter, and large area for splice, support 4fiber single fusion splice

Connecting with any fast connector for flat drop cable

Large store area for surplus fiber inside, with separate fusion fibre tray. the splice try is removeable when operation.

Mounting accessories : 2 * Expansion screw

Applications:

• Widely used in FTTH access network.
• Telecommunication Networks
• CATV Networks
• Data Communication Network

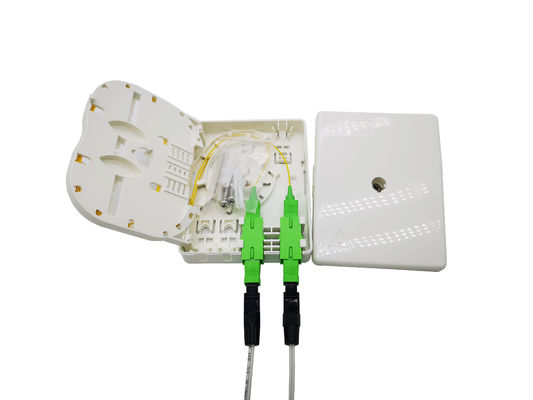

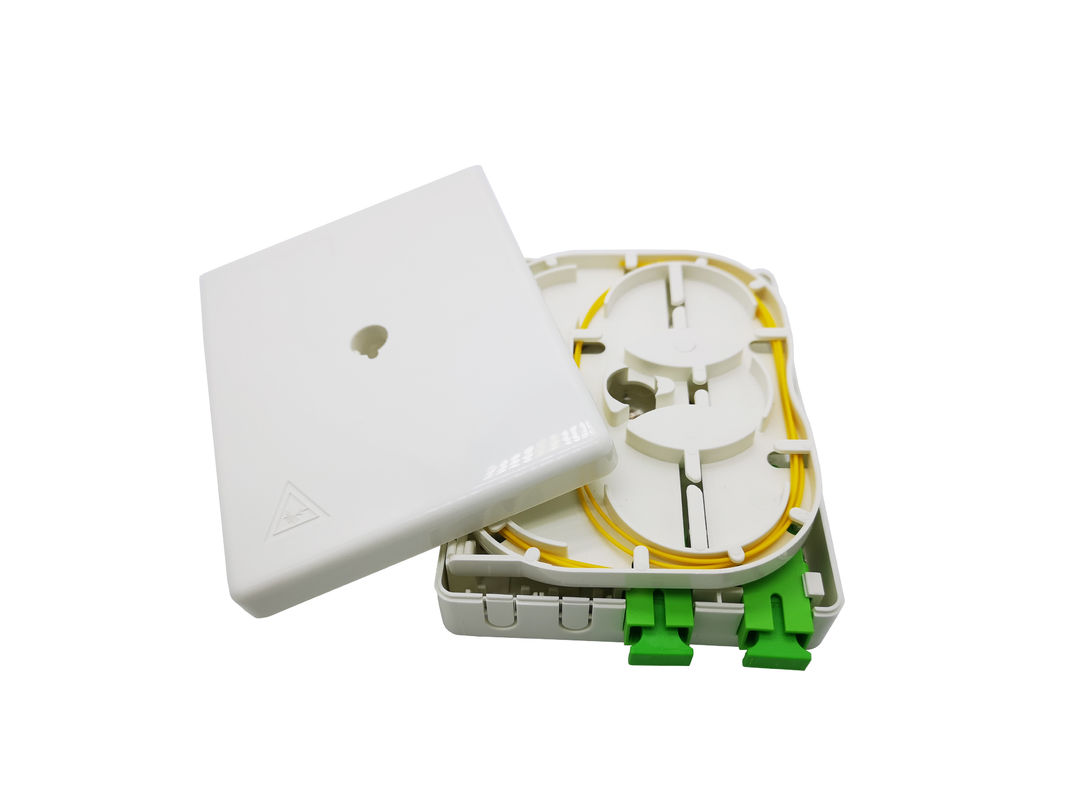

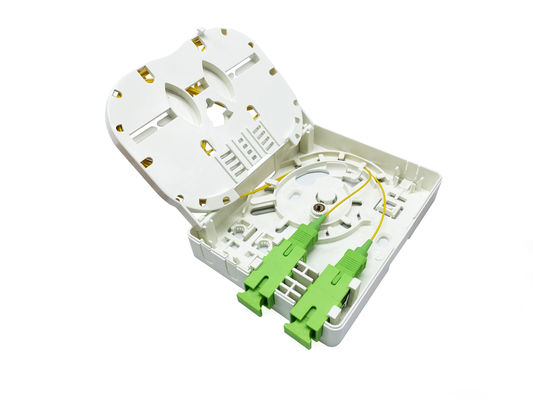

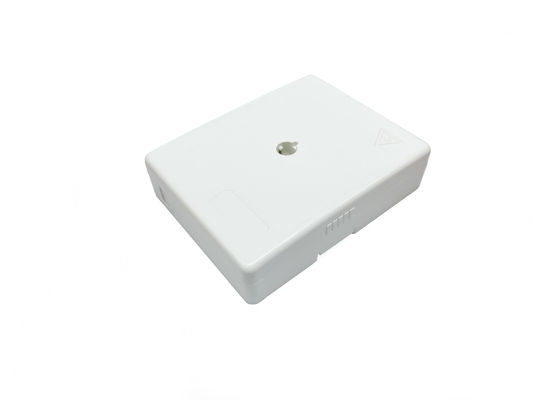

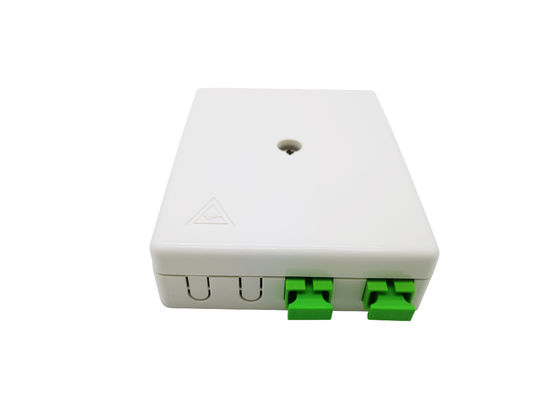

More photos showing

Configuration:

Packaging information

Order information

Other Fiber to Home Fiber Optic Wall Socket can be offered:

YINGDA TECHNOLOGY LIMITED Main products: Fiber Optic Termination Box, Wall Outlet,

 MPO MTP Cable assembly, FTTH terminal box, Splitter,Coupler, Adaptor, Fiber Optic Patch cord,

Optical Fiber Pigtails, Fiber Optic Connectors, Fiber Optic patch panel, Wall mount box, FTTH

drop cable, and other optical device accessories.
