3D Passed optical patch cord SC / UPC - SC / UPC single mode fiber jumpers

3D Passed optical patch cord SC / UPC - SC / UPC single mode fiber jumpers

  • High Light

    fiber optic jumper

    ,

    multimode patch cord

  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Minimum Order Quantity
    500PCS
  • Price
    Negotiable
  • Packaging Details

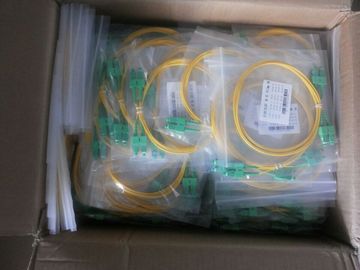

    Packed in plastic bag, in a shipping outer carton box.
  • Delivery Time
    3-5working days after received your payment
  • Payment Terms
    T/T or western Union
  • Supply Ability
    100,000pcs per month

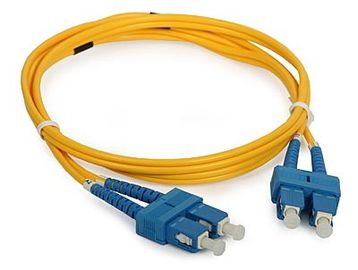

3D Passed optical patch cord SC / UPC - SC / UPC single mode fiber jumpers

3D Passed optical patch cord SC/UPC-SC/UPC fiber optic patch cord simplex single mode SM 9/125um OS1,fiber optic patch cable duplex

Feature

  • Connector with MT-RJ, SC, ST, FC, LC,MU,MPO/MTP,LX5,DIN,D4,ESCON ok
  • Before delivery,will test each patch cord insertion loss
  • Comply with Telcordia GR-326-CORE specification and RoHS Standard
  • Single mode & Multi mode PC/UPC Polish
  • Simplex, duplex, and multiply fiber assemblies used for standard and customized shape configuration.
  • OEM, ODM, customer label, package ok



Unique Service:

  1. FREE SAMPLES for quality testing are available
  2. 3-5 days leading time if order quantity < 10000pcs
  3. Drawing, Specification, Test Report  can be sent at any time if request
  4. Quality complaint will handle in 24 hours by our After-sales Service Dept





Specifications

Item

Single mode(nomomodo)

Multimode(Multimodo)

Wavelength

1310&1550nm

850&1300nm

Fiber type

9/125um

62.5/125um,50/125um,50/125um

OM3,50/125um OM4

Connector type

SC ST FC LC MU MTRJ E2000 DIN D4 ESCON

Insertion loss on average

≤0.3dB

≤0.3dB

Max. insertion loss

≤0.5dB

≤0.5dB

Return loss

UPC≥55dB;APC≥65dB

≥20dB

Operating temperature

-40~+75℃

Storage temperature

-40~+85℃



Order information

Connector A

Connector B

Fiber type

Cable diameter

Cable jacket

Length

LC/UPC

LC/UPC

9/125um

0.9mm simplex

PVC

0.5m

LC/APC

LC/APC

50/125um

1.8mm simplex

LSZH

1m

FC/UPC

FC/UPC

62.5/125um

2.0simplex



3m

FC/APC

FC/APC

50/125um OM3

3.0mm simplex



5m

SC/UPC

SC/UPC

50/125um OM4

1.8mm duplex



...

SC/APC

SC/APC



2.0mm duplex





ST/UPC

ST/UPC



3.0mm duplex





MTRJ/female

MTRJ/female



3.0mm round





MTRJ/male

MTRJ/male



...





MU/UPC

MU/UPC









MU/APC

MU/APC









E2000

E2000









...

...













More product show:
