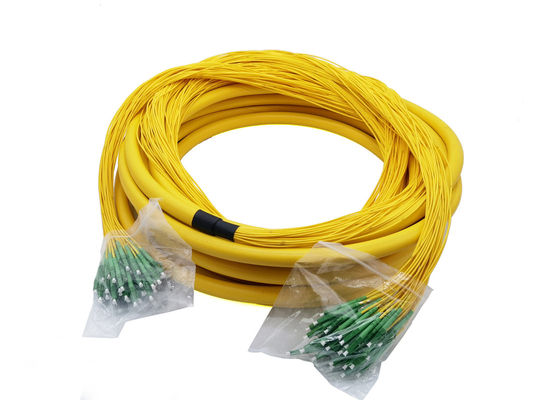

48 Cores G657A1 Fiber Optic Jumper Distribution Patch Cord Single Mode
48 Cores Fiber Optic Distribution Patch Cord Fanout with LC/APC Single mode 2.0mm Breakout Jumper
Pre-terminated Patch cable is called Bunch/Distribution patch cable or Mini breakout patch cable. It’s suitable for laying in buildings, primarily in cable conduits and cable trays for direct connector assembly with no need for splice connectors.
Connector’s Standards:
Telcordia GR-326, IEC61300, IEC61300-2, IEC61754-20, ROHS and UL94 V0, etc.
Optical Specification
| Connector | LC/APC | Jacket OD(mm) | 22mm |
| Fiber mode | 9/125um | Jacket color | yellow |
| Polish method | APC | Wavelength | 1310/1550nm |
| Cable type | Multi-fibers breakout 2.0mm unit cable | Jacket material | PVC |
| Insertion loss | ≤0.3dB (IEC grade C) | Insertion loss | ≤0.12dB (IEC grade B) |
| Return loss | SM APC≥65dB(min) | Interchangeability &vibration | ≤0.2dB |
| Operating temperature | -40~+75°C | Storage temperature | -40~+85°C |
End-face quality (Single mode)
| Zone | Range (um) | Scratches | Defects | Reference |
| A:core | 0-25 | none | none | IEC61300-3-35:2015 |
| B:cladding | 25-115 | none | none | |
| C: adhesive | 115-135 | none | none | |
| D:contact | 135-250 | none | none | |
| E: rest of ferrule | none | none |
Order information -YDPC-A-B-FCFT-CLS
| YDPC | - | Connector A | - | Connector B | - | FC=Fiber count | FT=Fiber type | - | CL=cable length | S=Cable sheath |
|
YD=yingda PC=patch cord PG=pigtail |
LCA=LC/APC LCU=LC/UPC SCA=SC/APC SCU=SC/UPC E2A=E2000/APC E2U=E2000/UPC ... XXX=null |
LCA=LC/APC LCU=LC/UPC SCA=SC/APC SCU=SC/UPC E2A=E2000/APC E2U=E2000/UPC ... XXX=null |
01=simplex 02=duplex 04=4core 06=6core 12=12core 24=24core ... |
2D=G.652D A1=G.657A1 A2=G.65A2 B3=G.657B3 M1=OM1 M2=OM2 M3=M3 M4=OM4 M5=OM5 ... |
001=1meter 002=2meter ... 015=15meter ... 120=120meter ... |
P=PVC L=LSZH O=OFNR |
For example:
48core breakout patch cord 15meters PVC with LC/APC 2mm connectors YELLOW
Part no.: YDPC-LCA-LCA-48A1-015P
|
|
