12 Cores Fiber Optic Termination Box Optical Distribution Box FTTH Wall Mounted

12 Cores Fiber Optic Termination Box Optical Distribution Box FTTH Wall Mounted

  • High Light

    12 Cores Fiber Optic Termination Box

    ,

    FTTB Fiber Optic Termination Box

    ,

    FTTH Optical Distribution Box

  • Capacity
    12 Fibers Bunchy
  • Cable Inelt
    2pcs With Diameter 16mm
  • Dimension
    198*112*45 Mm
  • Material
    High Strength Engineer Plastic PC
  • Color
    Grey
  • Application
    FTTH FTTB Indoor Use
  • Splice Tray
    2pcs, Each 6 Single Fibers
  • Special
    Un-cut Cable Go Through The Box
  • Output Diameter
    12 Small Ports For Pigtails
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS CE ROHS
  • Model Number
    FTB002
  • Minimum Order Quantity
    100PCS
  • Price
    NEGOTIABLE
  • Packaging Details
    1 pc per box, 48 pcs per carton shipping box
  • Delivery Time
    5-8 working days
  • Payment Terms
    Western Union, T/T, L/C

12 Cores Fiber Optic Termination Box Optical Distribution Box FTTH Wall Mounted

12 Cores Fiber Optic Termination Box Optical Distribution Box FTTH Wall Mounted



FTB002 Fiber Optic Termination Box is suitable for jointing fiber cable and pigtails to protects fiber optic splices and helps to distribute.

The termination box is either a wall-Mounting type or a desktop type, which is mainly used in telecommunication equipment room and network

equipment room.



YDTC-002 (FTB002) Fiber Terminal Box Specification

Model FTB002
Dimension (W*D*H) 198*112*45mm
Max.Capacity 12 core (dual fiber)
Cable ports 2 in, 12out
Cable diameter In:Φ16mm; out 2mm
Splice tray quantity

2pcs, each 6single fiber

Material ABS+PC
Color Gray



12Core Optical Terminal Box Features

  • Made of engineering plastic material PC, which has good mechanical strength, reliable and long lasting for more than 20years.
  • Light weight, small size, large capacity, simple and easy for installation.
  • Provide splice connection protection of fiber cable and pigtails.
  • Slide-N-Lock fiber optic splice tray with its opening angle above 90 degree, it is easy for installation and maintenance.
  • It support uncut feeder cable go through the box without cutting off, fast and good for ftth on site construction.
  • indoor wall mounted with screws, no need special tools.

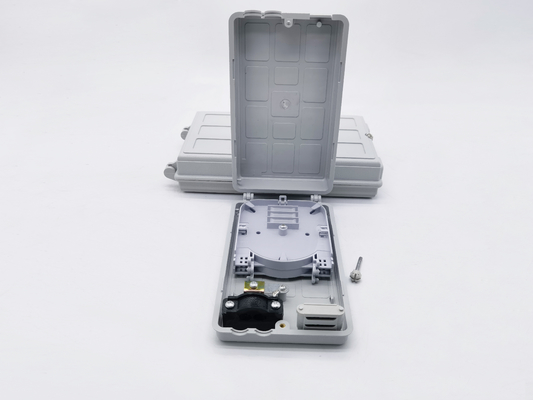

12 Cores Fiber Optic Termination Box Optical Distribution Box FTTH Wall Mounted 0

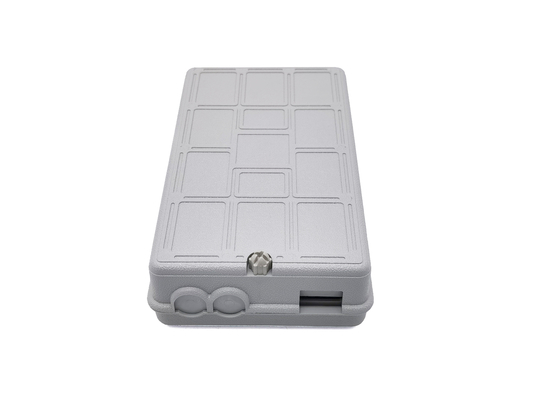

12 Cores Fiber Optic Termination Box Optical Distribution Box FTTH Wall Mounted 1

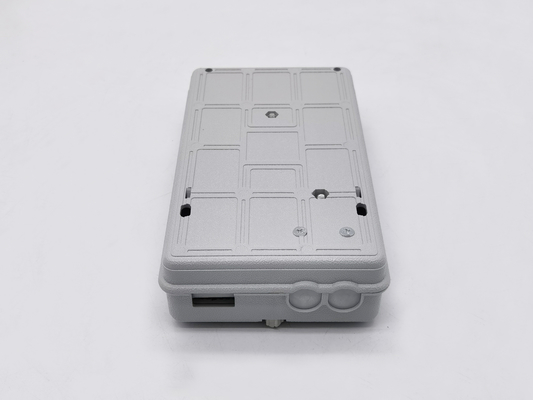

12 Cores Fiber Optic Termination Box Optical Distribution Box FTTH Wall Mounted 212 Cores Fiber Optic Termination Box Optical Distribution Box FTTH Wall Mounted 3

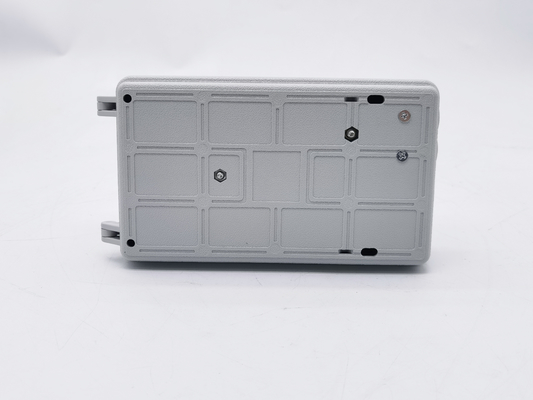

12 Cores Fiber Optic Termination Box Optical Distribution Box FTTH Wall Mounted 4
