16 Ports FTTH Fiber Splitter Distribution Box Walll Mount Outdoor IP65 Black

16 Ports FTTH Wall Mount Fiber Optic Cable Termination Box Express Outdoor IP65 Black

Optical distribution box Specification

Cable Termination Box Features:

• Total enclosed structure with key and buckles
• High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging
• Outdoor wall mount, pole mount or aerial mount, protection level up to IP65
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
• Cable, pigtails, and patch cords are running through their own paths without disturbing each other, easy maintenance.
• Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
• Adapter plate and Splitter LGX module are available.

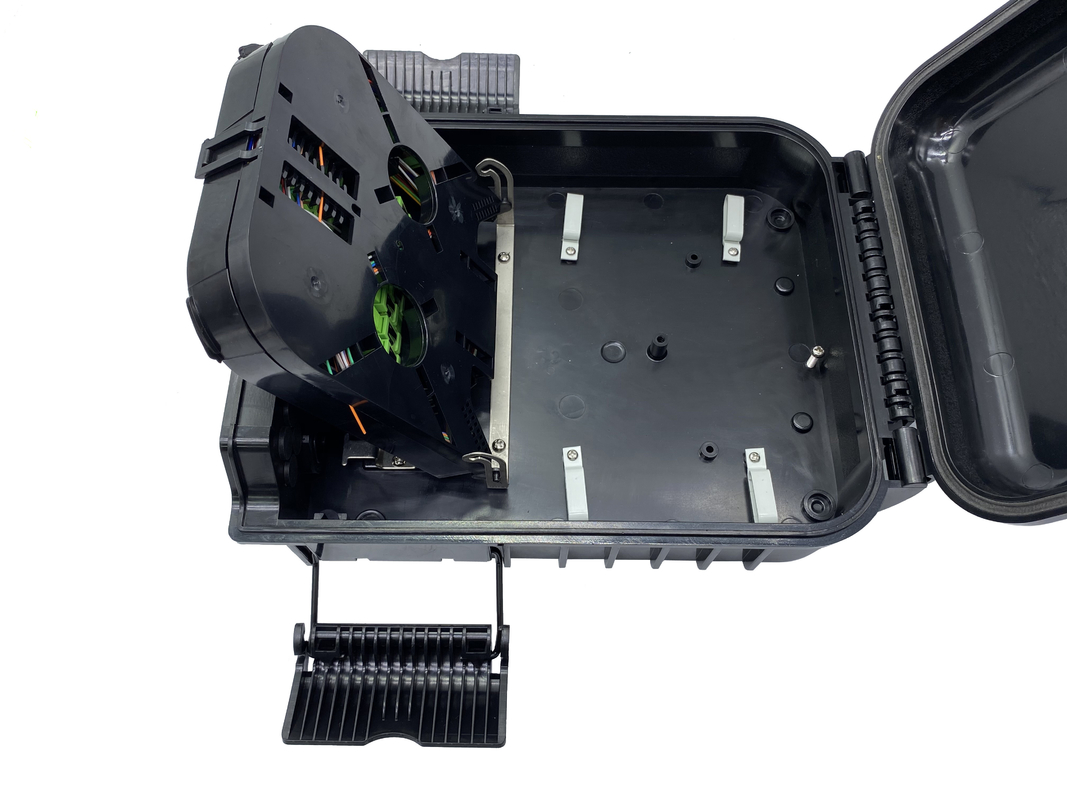

Internal Design:

The fiber nap box is 3layer design, the whole set is fixed on the bottom with screws.

1st layer is for distribution with 16pcs adapter, black is for splitting;

2nd layer is for fusion and fiber management;

Bottom is cable entry and rounting area.

 For Cable Ports:

Cable enter and exit from front, easy to operate and maintainence, support uncut cable go through box.

Cable entey: 2cable glands, suitable for dia. 13.5mm, 1uncut port, dia.13.5mm*2

Cale exit: 16 round ports with rubber seal, 2.0*3.0mm /3mm round available

Round seal: each exit port with rubber seal, can be pushed out from the outside to the inside with fingers

Installation method:

Wall mount: 4screws +2 stainess steel sheets standard configuration

Pole mount: 4screws +2 stianess steel sheets, 2pole mount rings-optional

Accessory: nylon tie, buffer tube,clamps, sleeve, expansion screw

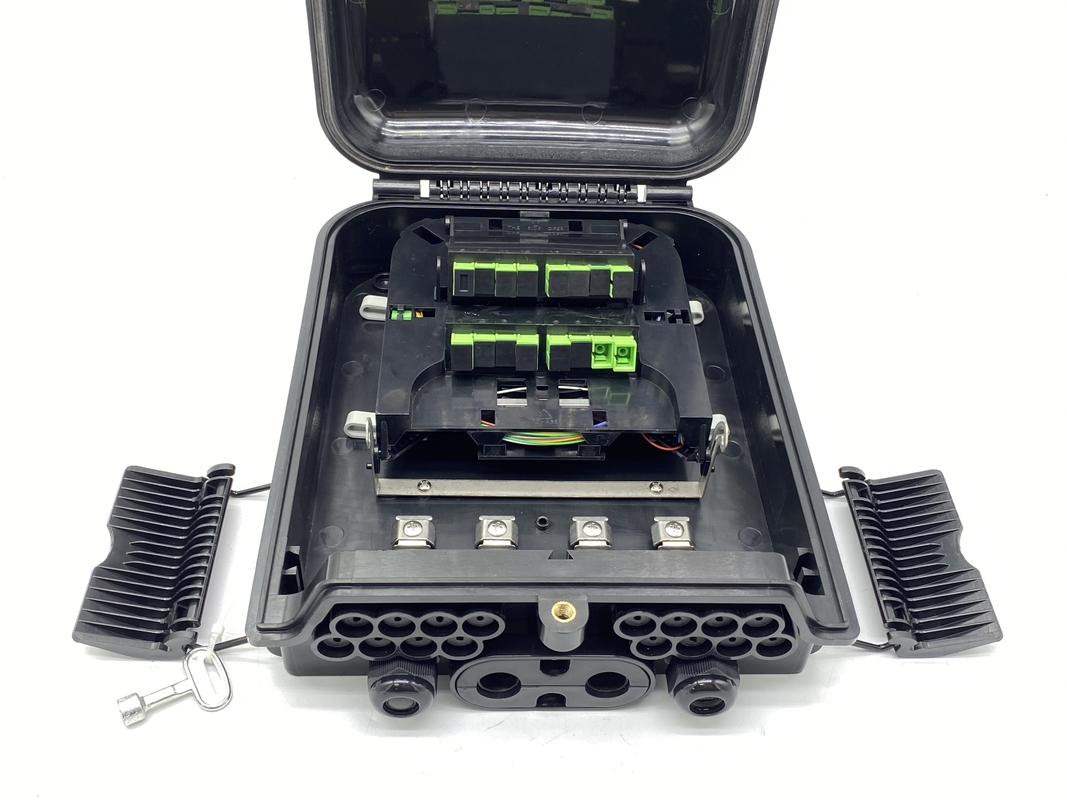

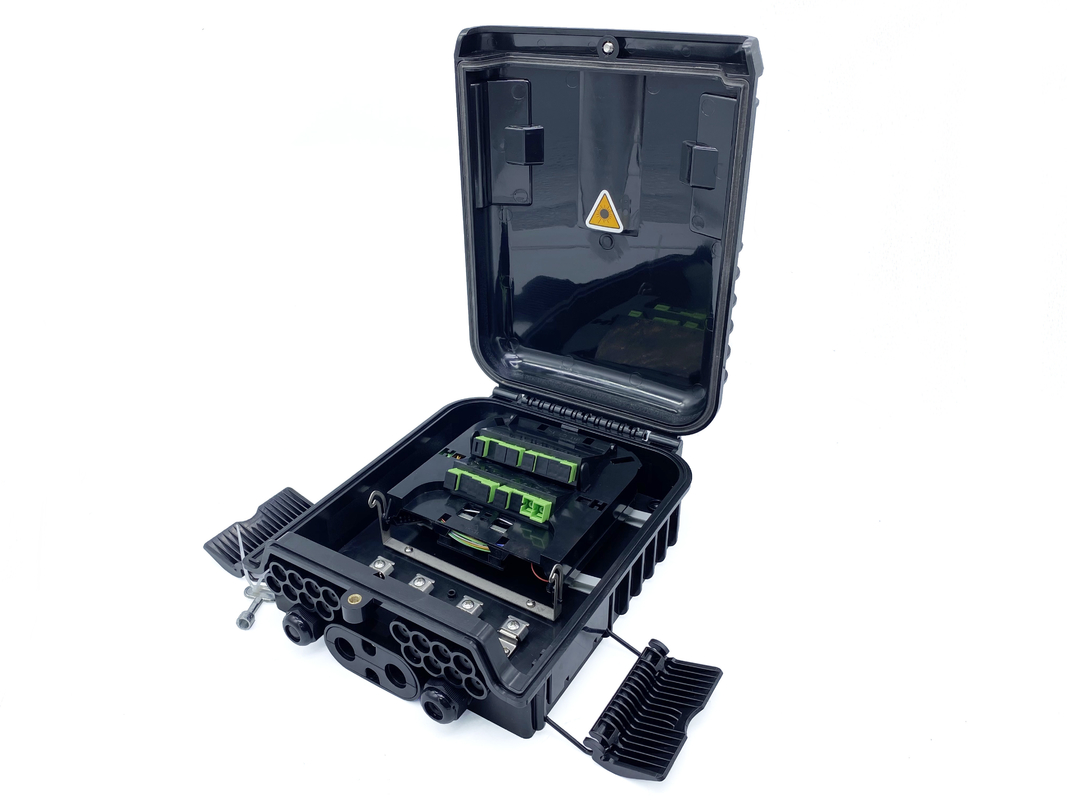

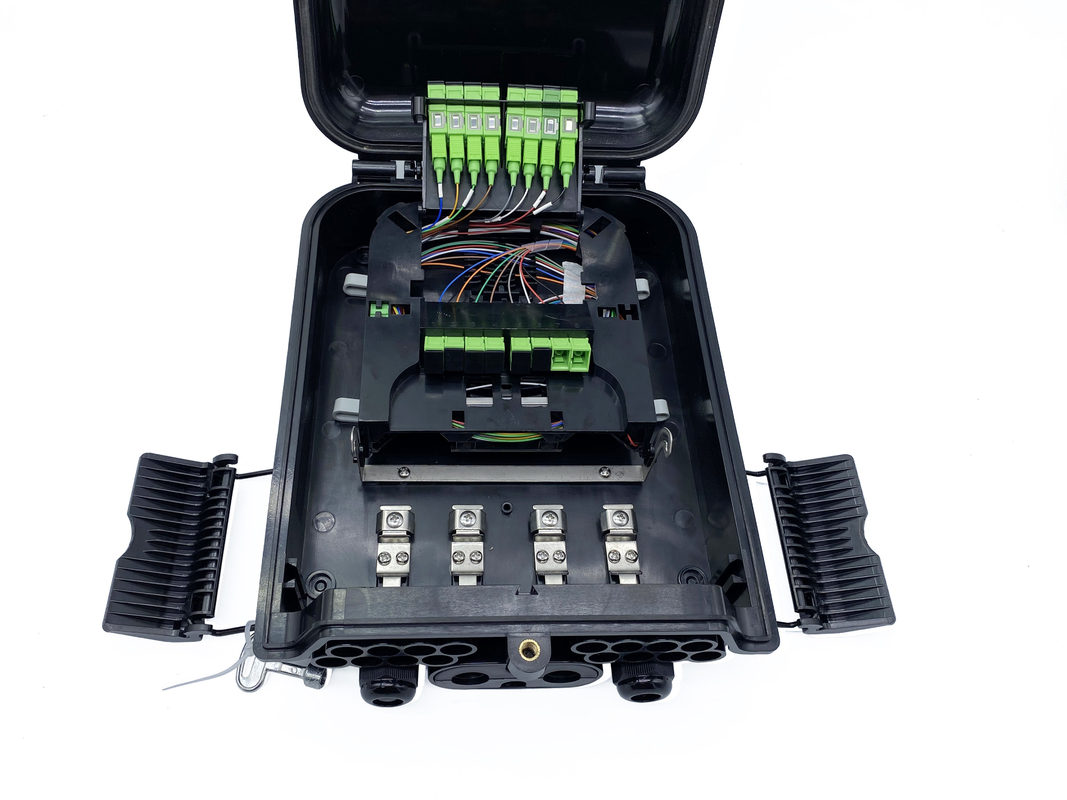

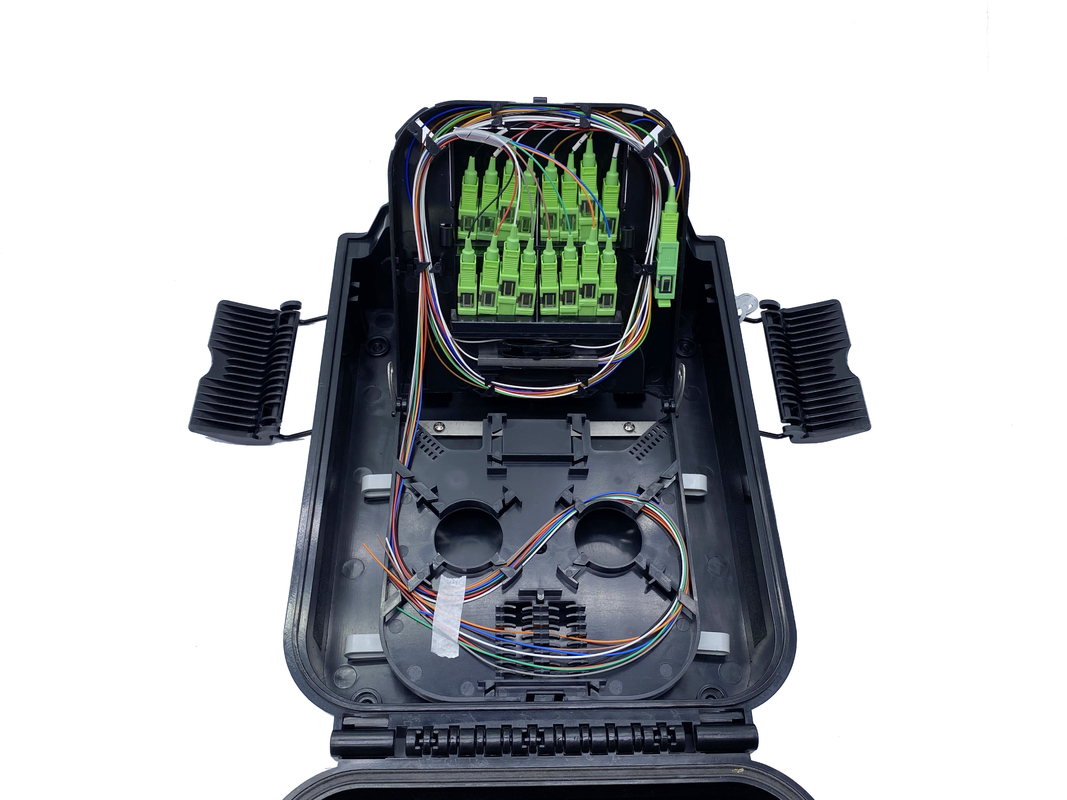

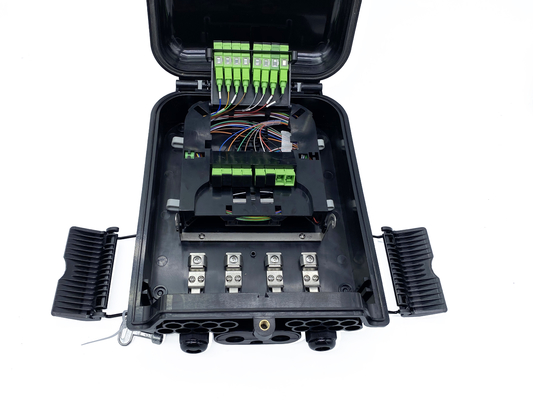

More Real Pictures:
