8 Ports Plastic ABS Fiber Optic Termination Box Uncut Optical Fiber Splitter 1x8

8 Ports Plastic ABS Fiber Optic Termination Box Uncut Optical Fiber Splitter 1x8

  • High Light

    ABS Fiber Optic Termination Box

    ,

    Plastic Fiber Optic Termination Box

    ,

    Optical Fiber Splitter 1x8

  • Material
    ABS+PC
  • Color
    White
  • Dimension
    235*125*45 Mm
  • Application
    Ftth Indoor
  • Installation Method
    Wall Mount
  • Drop Cable Size
    2*5mm Drop Cable
  • Adapter Qty
    8SC Without Flange
  • Splitter Qty
    1:8 Mini Splitter
  • Max Capacity
    24 Cores
  • Proof Grade
    IP54
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO, ROHS, SGS
  • Model Number
    FTB008A-108SA
  • Minimum Order Quantity
    100pcs
  • Price
    negotiable
  • Packaging Details
    1 pc / carton box, 20 pcs / master box
  • Payment Terms
    T/T, Western Union

8 Ports Plastic ABS Fiber Optic Termination Box Uncut Optical Fiber Splitter 1x8

8 Ports Plastic ABS Fiber Optic Termination Box Uncut Optical Fiber Splitter 1x8



8 Ports Plastic ABS Uncut Optical Fiber Splitter 1x8 Cable Termination Box 2x3mm SC Loaded



FTB008A plastic terminal box is indoor use only, mainly for distribution vertical cable from patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.



The entry 2 ports can use multi-fiber cable maximum diameter 12mm, the feeder cable go throught the box without cutting off.

8 pcs outputs for ftth drop cable, maximum 2x5mm.



Meanwhile, unique design of separate covers for the adapter and cable entry/exit ports makes it more safe, nice and humanity.



Specification:

Model FTB008A
Dimension 235*125*45 mm (H*W*D)
Cable ports 2in 2out, 8pcs for drop cable
Cable dimeter In:12 mm, out: 2x5mm
Installation Wall mounted
Max. Fusion 24 single fibers
Splice tray 1 pc splice tray, 1 pc splitter tray, 1 pc tray for fiber management
Material ABS+PC
Color Gray/ white
PLC Splitter 1x2,1x4,1x8 mini module plc splitter 0.9mm 1meter
Max. Adapter 8 pcs SC simplex,without flange, shutter type ok.

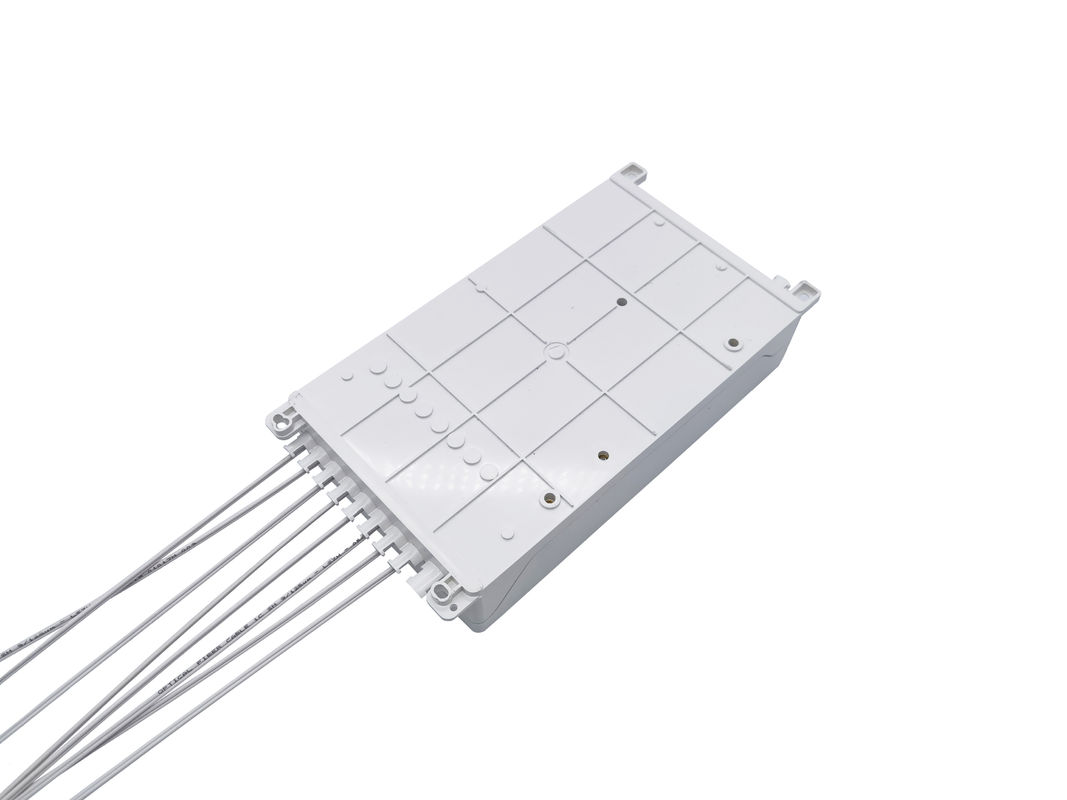

8 Ports Plastic ABS Fiber Optic Termination Box Uncut Optical Fiber Splitter 1x8 0

Features

  • The lid of the box have round edges, and closed by screws. Opening of the lid will not affect the movement of the other parts of the box. Both cover is removable.
  • All the metal parts is steel stainless AISI-303 and resistant to the corrosion in normal
  • temperature.
  • All the materials used is non toxic and dermatologically safe.
  • The materials used for manufacturing these boxes can use for a minimum period of 20 years.
  • Unique design of 3 layers stray: splitter tray, splice tray, fiber management tray.
  • Adapter panel on the bottom is rotate by a metal rod, convenient and fast to installation
  • The feeder cable can go through the box no need cuttting, better choice for ftth on-site construction.

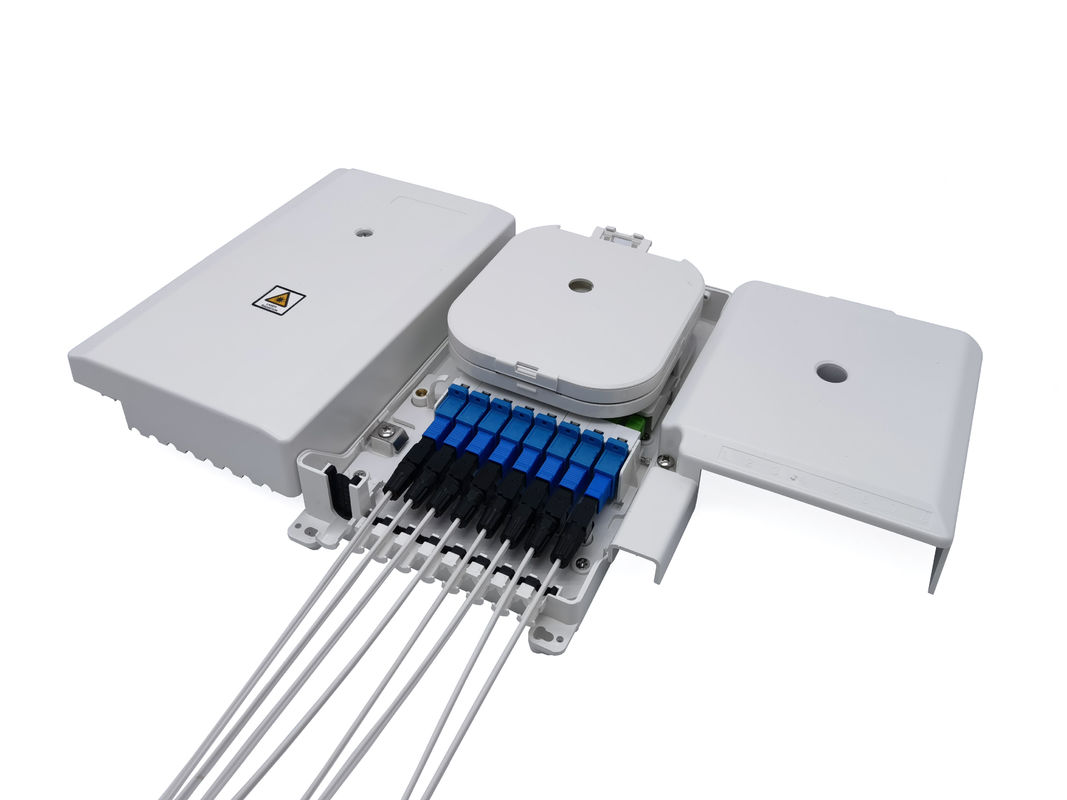

8 Ports Plastic ABS Fiber Optic Termination Box Uncut Optical Fiber Splitter 1x8 1

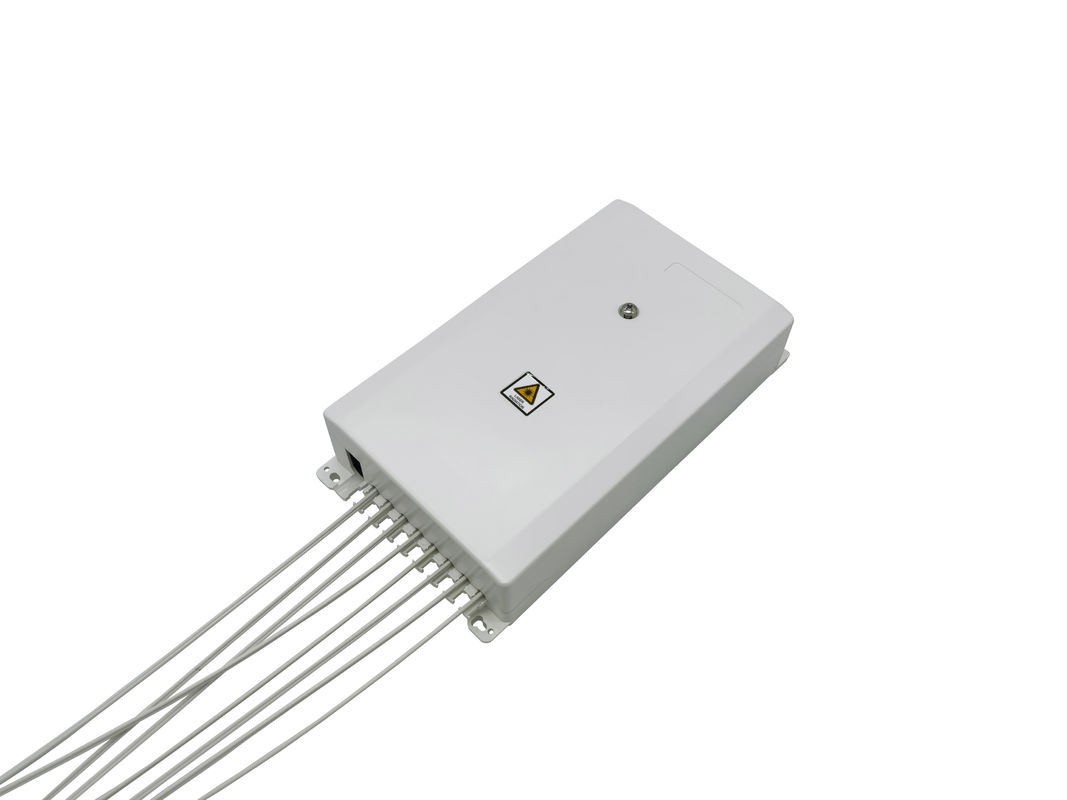

8 Ports Plastic ABS Fiber Optic Termination Box Uncut Optical Fiber Splitter 1x8 2

Standard accessory:

heatshrink protection sleeve, Cable nylon ties, wall mount expansion screws, spiral tube, etc



Optional accessory:

plc splitter, fast connector, adapter, drop cable, etc.

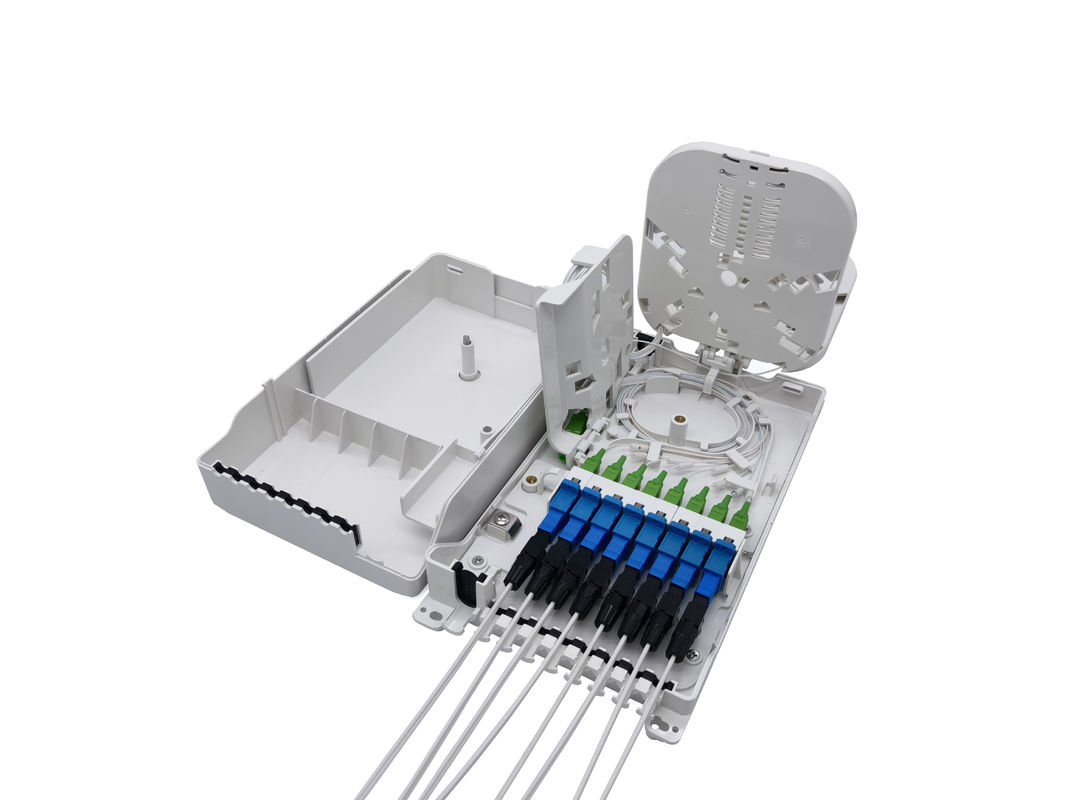

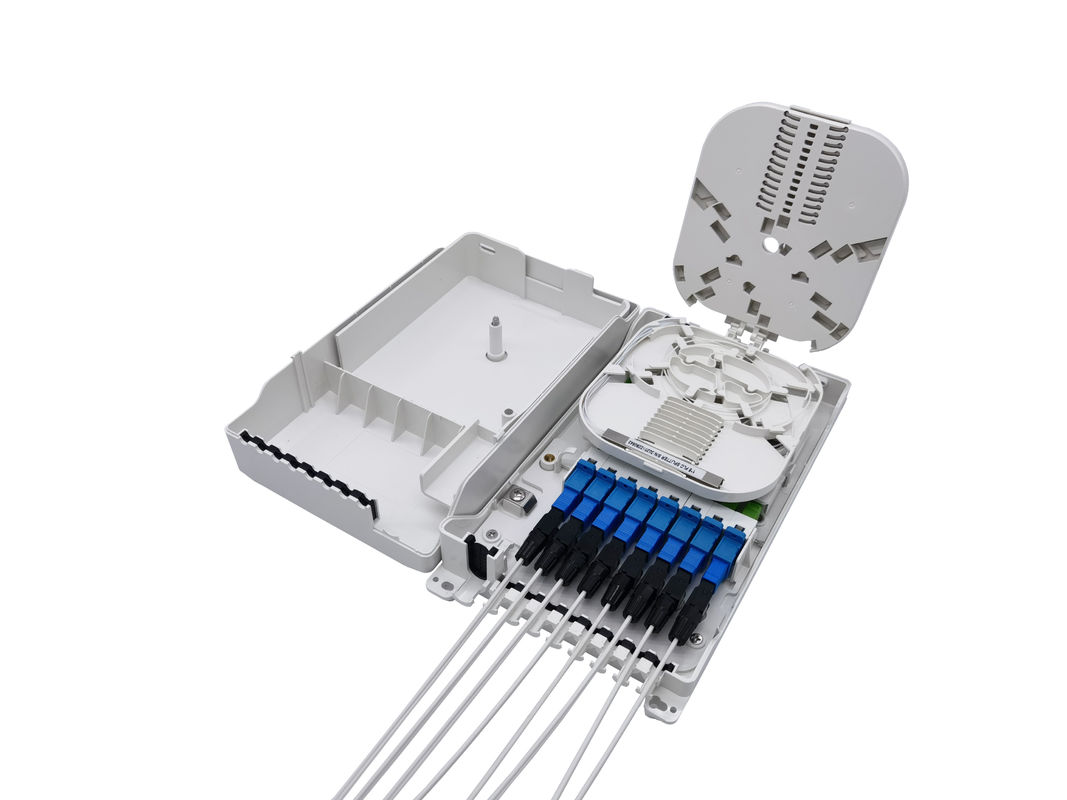

8 Ports Plastic ABS Fiber Optic Termination Box Uncut Optical Fiber Splitter 1x8 38 Ports Plastic ABS Fiber Optic Termination Box Uncut Optical Fiber Splitter 1x8 4
