IP67 Fiber Patch Cord Connectors Mini IP SC FTTH Outdoor Installation
Product Details
| Application | FTTH Outdoor Wiring | Connector | SC / APC |
|---|---|---|---|
| Fiber Count | 1 Core | Fiber Type | G.657A2 |
| Cable Sheath | LSZH | Cable Length | 5 Meter |
| Cable Color | Black | Insertion Loss | < 0.3dB |
| Cable Strength Member | Aramid Yarn * 2layer | Cable Diameter | 4.8 - 5.0mm FTTA Double Sheath Cable |
| High Light | IP67 Fiber Patch Cord Connectors,FTTH Fiber Patch Cord Connectors,IP67 fiber optic cable connectors |
||
Product Description
IP67 Fiber Patch Cord Connectors Mini IP SC FTTH Outdoor Installation

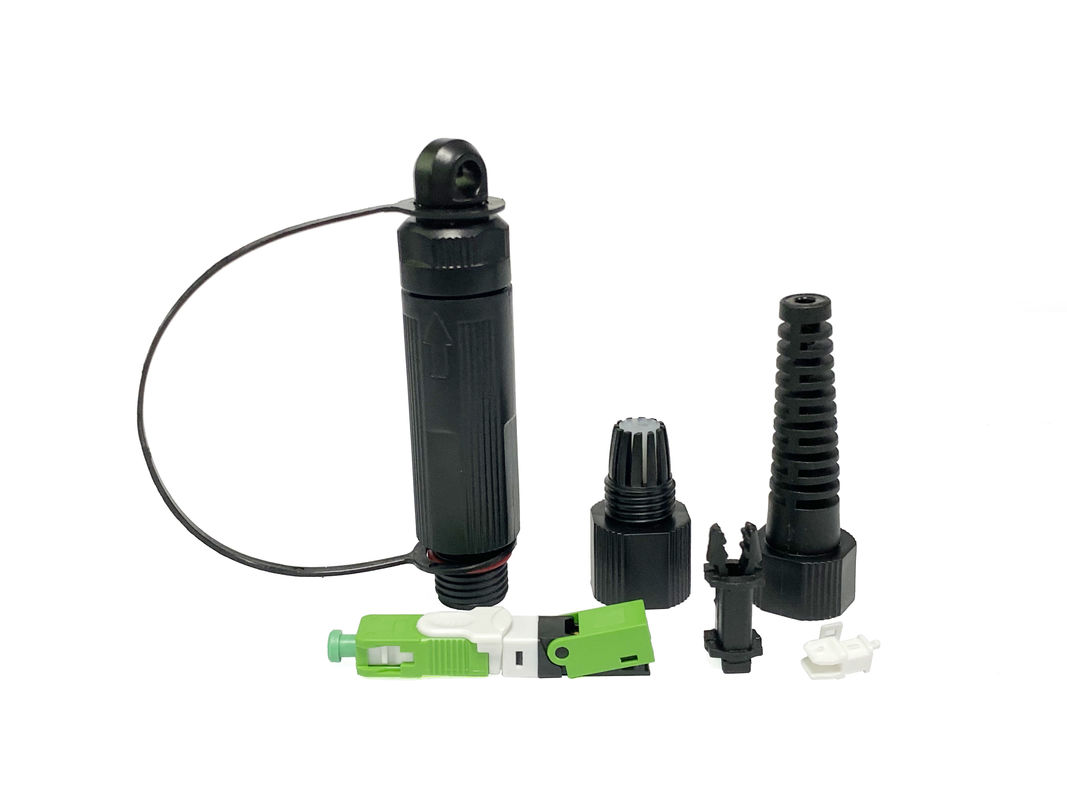

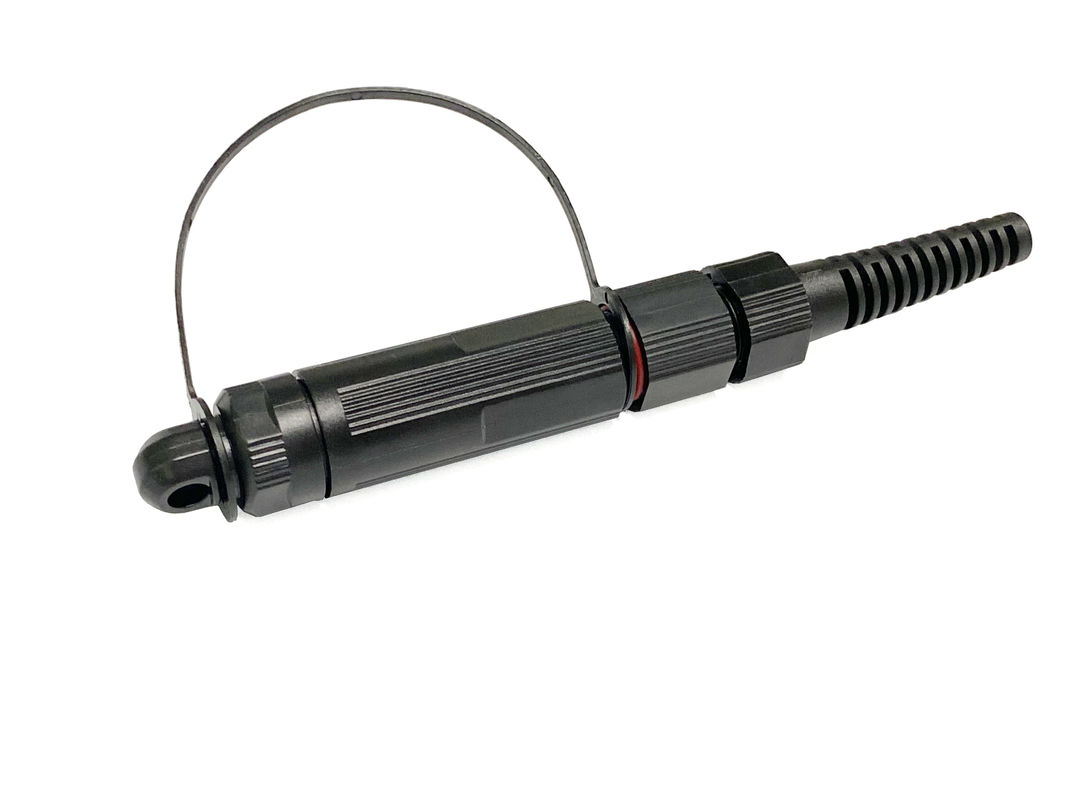

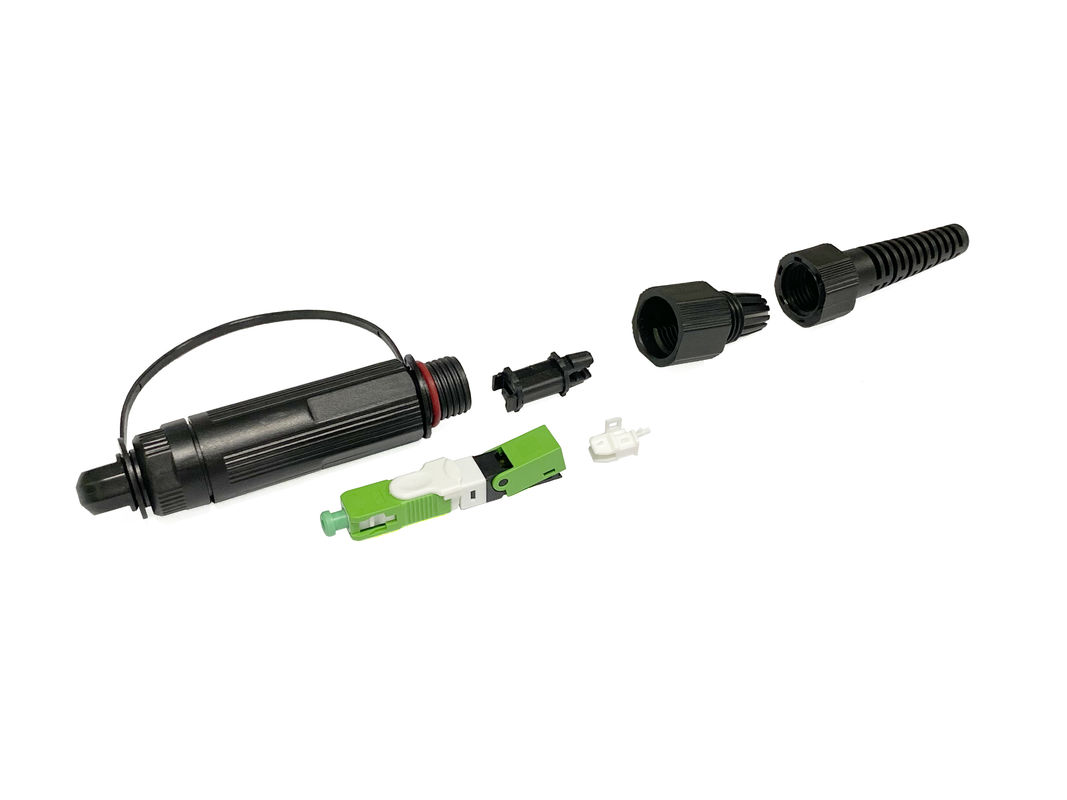

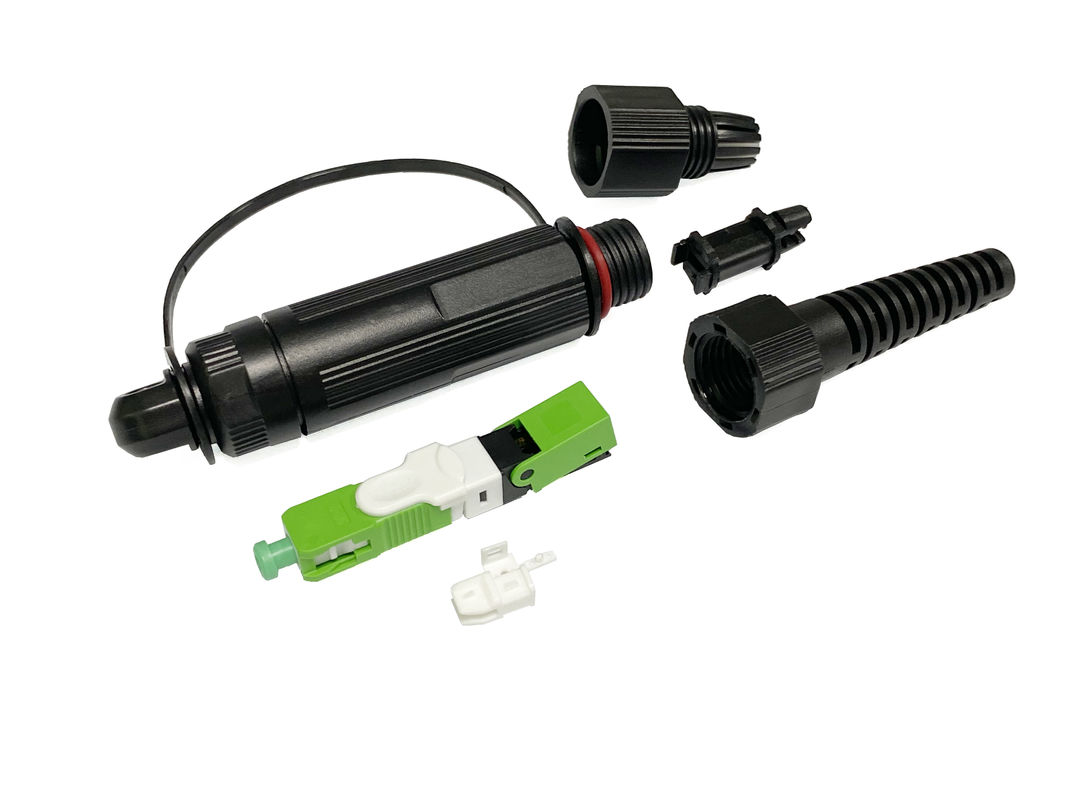

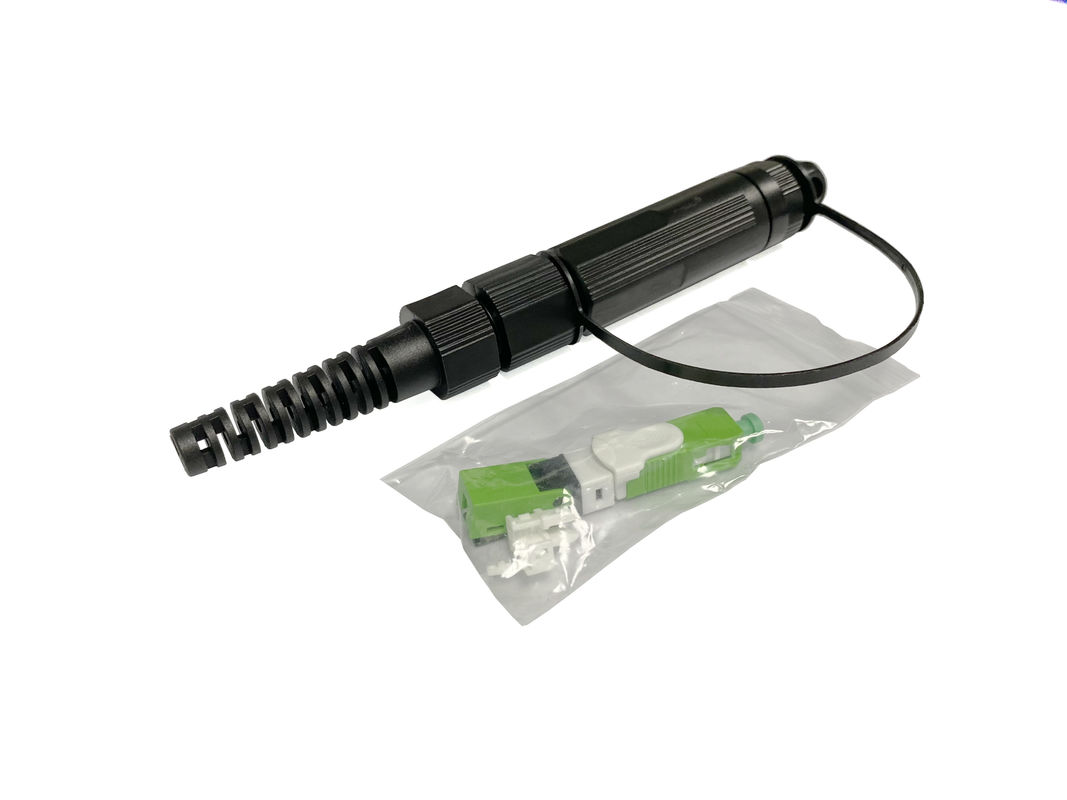

IP67 Enhanced Mini IP SC Field Installable Mechanical Fast Connector for Huawei NAP CTO Box 2x3mm
Mini IP SC series Field installable fast connector is a new design outdoor waterproof fiber optical connector compatible with Huawei Mini SC connector /adapter . It’s mainly used for FTTH outdoor installation . It’s small and easy to be installed with IP67 grade. Mini sc fast connector is an excellent solutions with Huawei Device and do not need terminated the connector in laboratory. It can bot field assembled very easy to save time and short the project time.
Technical Specification
| Item | Parameter |
| Cable type | 2*3.0mm flat drop cable, |
| Fiber Diameter | 125μm ( 652 & 657 ) |
| Coating Diameter | 250μm |
| Mode | Single mode |
| Operation Time | about 15s(exclude fiber presetting) |
| Insertion Loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return Loss | ≥ 50dB for UPC, ≥ 55dB for APC |
| Success Rate | >98% |
| Reusable Times | >5 times |
| Tensile Strength | >30 N |
| Temperature | -40 ~ +85 C |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
| Mechanical Durability(500 times) | IL ≤ 0.3dB |
| Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB |
Environment Performance
| Category | Specification | |||
| Condition | IL Variation | RL Variation | Appearance | |
| High TEMP | 110℃,200H | ≤ 0.5 | ≤5 |
No mechanical damage, like deformation, cracking |
| Low TEMP | -40℃,200H | ≤ 0.5 | ≤ 5 | |
| TEMP Cycling | -40~85℃,3.5H/Cle, 100C | ≤ 0.5 | ≤5 | |
| HAST | 110℃,90%RH,200H | ≤ 0.5 | ≤ 5 | |
| Immersion | 25℃,200H | ≤ 0.5 | ≤ 5 | |
| Salt Mist | 5% Nacl,6.5 | ≤ 5 | ||
|
Tensile |
Pull:50N;The distance between Loading location and fast connector: L = 22-28cm; Duration:1min. |
≤ 0.5 |
≤ 5 |
|
Connector Parameter:
| Item | ESC250D | |
| Ferrule | UPC | APC |
| Return loss | ≥55dB | ≥65dB |
| Insertion loss | 0.3dB, max<0.5dB | |
| Length | 58mm | |
| Mating Times | 500Times | |
| Cable Diameter | Φ2-3mm | |
| Inner Diameter of ferrules | 125.5um | |
| Working Temperature | -40~+85℃ | |
| Storage Temperature | -40~+85℃ | |
Features
Cost effective solution for in house termination.
Low insertion loss and added loss.
Height of attenuation.
IP67 water, dust proof and corrosion resistant
Mechanical performance: IEC 61754-4 standard.
RoHS and REACH materials compliant.
Cable diameter: 2.0*3.0mm Ftth drop cable (Round 5.0/3.0mm cable under design by team will released soon)
Application
FTTH & Outdoor Fiber Terminal End
Harsh Environment
FTTA BBU RRU
Data Video Transmission
Optical Fiber Access Of Mobile Base Station
Order Information ---YDCT-F-EC
| Name | Fast Connector (F) | Cable type (E) | Fiber count (C) |
| Yingda=YD CT=connector |
MSC=Huawei Mini SC/UPC MSA=Huawei Mini SC/APC |
23=2.0.*3.0mm flat cable 25=2.0*5.0mm flat cable 30=3.0mm round cable 20=2.0mm round cable |
01=1core=simplex 02=2core=duplex 04=4core ... |
Example:
YDCT-MSA-2301=Mini IP SC/APC connector for 2*3mm drop cable 1core
NOTE: all connector is compatible with Huawei/Optitap/Hoptic/H connector, not original.
Yingda is manufacturer and trading combo, welcome OEM/ODM
