Outdoor 30m G657A2 Fiber Optic Patch Cord SM Corning With 2mm SC APC
  • Name
  • Name
  • Name
  • Name

Outdoor 30m G657A2 Fiber Optic Patch Cord SM Corning With 2mm SC APC

MOQ: 100 PCS
Price: 0.36USD-30USD
Standard Packaging: 1 piece / bag
Payment Method: L/C, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO,SGS,ROHS
Model Number
YDPC-SASA-0820-04A2
Application:
FTTH Outdoor Aerial Mount
Connector:
SC/APC
Fiber Count:
4 Core
Fiber Type:
G657A2
Cable Sheath:
LSZH
Cable Length:
30 Meters
Cable Color:
Black
Insertion Loss:
< 0.3dB
Tensile Strength:
660N
Messenger Wire:
7*0.4mm Steel Wire
Product Name:
Fiber Cable,fiber Optic Patch Cables,fiber Optics Patch Cords,fiber Optic Jumpers,fiber Optic Jumper Cables,fiber Optik Patch Cord
Highlight:

G657A2 Fiber Optic Patch Cord

,

30m Fiber Optic Patch Cord

,

G657A2 optical patch cord

Product Description

Outdoor 30m G657A2 Fiber Optic Patch Cord SM Corning With 2mm SC APC



Pre-Connected Fig.8 Outdoor Cable 4 Fibers SM Corning G657A2 Length 30m Each Side fan-out 0.5m length with 2mm SC/APC





Pre-terminated Patch cable is a kind of distribution patch cable. It’s suitable for laying in buildings, primarily in cable conduits and cable trays for direct connector assembly with no need for splice connectors. This figure-8 cable is widely used in outdoor aerial mounting distribution sytem, which is anti-UV, anti-flame, anti-mouse biting. Especially 7pcs 0.4mm(some use 0.33mm) steel wire makes it good tensile strengthe and crush resistance.



Connector’s Standard:

TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

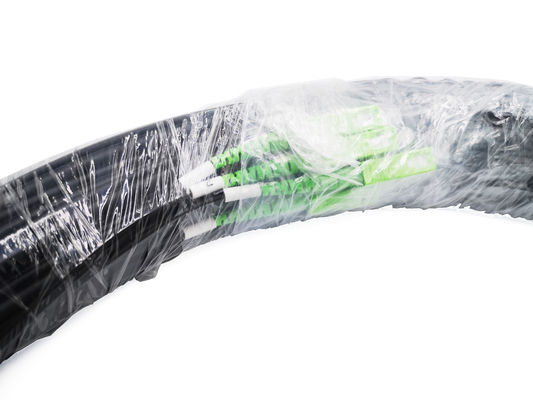

Outdoor 30m G657A2 Fiber Optic Patch Cord SM Corning With 2mm SC APC 0

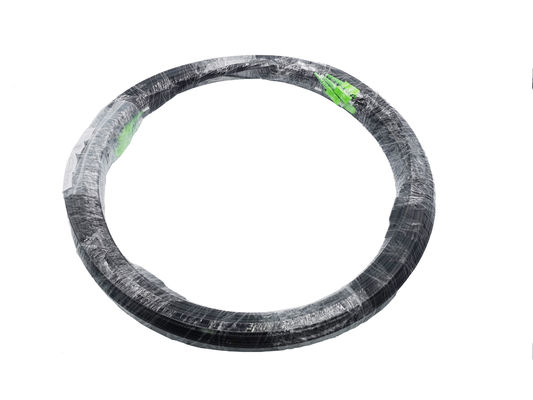

Outdoor 30m G657A2 Fiber Optic Patch Cord SM Corning With 2mm SC APC 1



Optical Specification



Connector SC Jacket OD(mm) 5.0*8.0mm
Fiber mode 9/125um Jacket color black
Polish method APC Wavelength 1310/1550nm
Cable type Multi-fibers breakout 2.0mm unit cable Jacket material LSZH/PVC/PE
Insertion loss ≤0.3dB (IEC grade C) Insertion loss ≤0.12dB (IEC grade B)
Return loss SM APC≥65dB(min) Interchangeability &vibration ≤0.2dB
Operating temperature -40~+75°C Storage temperature -40~+85°C

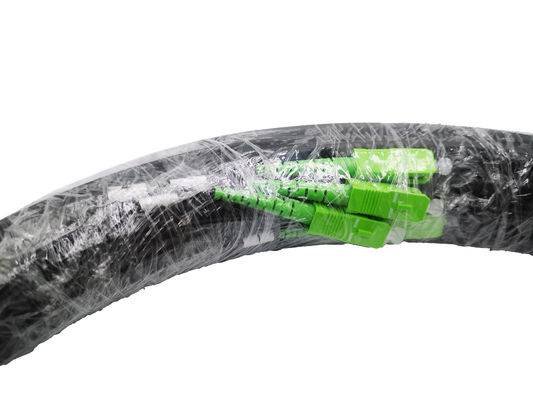

Outdoor 30m G657A2 Fiber Optic Patch Cord SM Corning With 2mm SC APC 2

Cable technical parameter

No. of cable 2-12
Fiber Model G.657A2 (Corning)
Loose Tube Material PBT
Diameter(±0.06)mm 2.5
Thickness(±0.03)mm 0.35
The Max.Core NO./Tube 12
Outer Sheath① Material MDPE
Thickness(±0.1)mm 0.6
Diameter(±0.2)mm 2.5
Web Material PE
Size(±0.1)mm 0.7*1.2
Messenger Wire Material steel strand
Size(±0.05)mm 1.2(0.4*7)
Outer Sheath② Material PE
Thickness(±0.1)mm 1.0
Diameter(±0.2)mm 5.0
Cable Diameter(±0.2)mm(W×H) 5.0x8.0
Cable Weight(±5)kg/km 46
Attenuation 1310 nm £0.36
1550 nm £0.22
Min. bending radius Without Tension 10×Cable-φ
Under Maximum Tension 20×Cable-φ

Temperature range

(℃)

 Installation -20~+60
Transport&Storage -40~+70
Operation -40~+70





NO. Item Requirement
1 Allowable Tensile Strength Short Term 660N
Long Term 200N
2 Allowable Crush Resistance Short Term 1000 (/100mm)
Long Term 300 (/100mm)

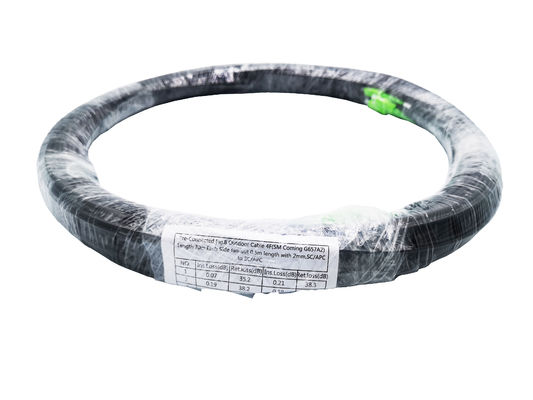

Outdoor 30m G657A2 Fiber Optic Patch Cord SM Corning With 2mm SC APC 3



Any more questions pls contact us at +86 18688982406



key word: outdoor patch cord, SC patch cord, corning G657A2 fiber
