Indoor Plastic Wall Outlet 2.0mm Fiber Optic Termination Box

Indoor Plastic Wall Outlet 2.0mm Fiber Optic Termination Box
Indoor Plastic Wall Outlet 2.0mm Fiber Optic Termination Box Indoor Plastic Wall Outlet 2.0mm Fiber Optic Termination Box Indoor Plastic Wall Outlet 2.0mm Fiber Optic Termination Box Indoor Plastic Wall Outlet 2.0mm Fiber Optic Termination Box Indoor Plastic Wall Outlet 2.0mm Fiber Optic Termination Box

Large Image :  Indoor Plastic Wall Outlet 2.0mm Fiber Optic Termination Box

Product Details:

Place of Origin: CHINA
Brand Name: YINGDA
Certification: ISO
Model Number: FTB86Y

Payment & Shipping Terms:

Minimum Order Quantity: 500pc
Price: Negotiable
Packaging Details: 100pcs/box
Delivery Time: 7days
Payment Terms: T/T, L/C, Western Union
Detailed Product Description
Material: ABS Color: White
Max Capacity: 2core Fiber Type: Singlemode Or Multimode
Dimension: 110*80*27mm Adapter: 2SC Or LC Duplex
Cable Type: 0.9mm, 2.0mm 3.0mm, 2.0*1.6mm,2.0*3.0mm Application: Fiber To The Home
High Light:

2.0mm Fiber Optic Termination Box

,

0.9mm Fiber Optic Termination Box

,

2.0mm Fiber Termination Box

Indoor Plastic Wall Outlet 2.0mm Fiber Optic Termination Box



2Core SC Indoor Plastic Wall Outlet Socket Panel Fiber Optic Cable Termination Distribution Network





fiber optic rosette is a ftth network wall mount panel or desktop, it is for direct connection or fusion splice with pigtails. it can use all kindly of adapters like SC LC, and maximum fusion 2cores single fiber with sleeves.



Specification



Model FTB86Y
Dimension (H*W*D) 110*80*27mm
Max.Capacity 2 core (  fiber)
Cable type FTTH Flat/ indoor cable
Adapter 2SC
Color white
Material ABS
Protection level IP20
impact protection IK01
Fiber type single mode & multimode
Operating temperature -10~+65°C
Guarantee 12 months
Standards

Degree of protection: IEC 60529;

Temperature variation: IEC 61300-2-22;

Telcordia GR-771.



Application



FTTH internal environment wall mount





Features



Indoor Plastic Wall Outlet 2.0mm Fiber Optic Termination Box 0

The box is made of high quality engineeringplastic ABS, brand new materials, not have second hand, white color.

Indoor Plastic Wall Outlet 2.0mm Fiber Optic Termination Box 1Indoor Plastic Wall Outlet 2.0mm Fiber Optic Termination Box 2

Compact size, light weight, special design, according to the internal wiring and structural requirements, the surface adopts gradient design, non planar;

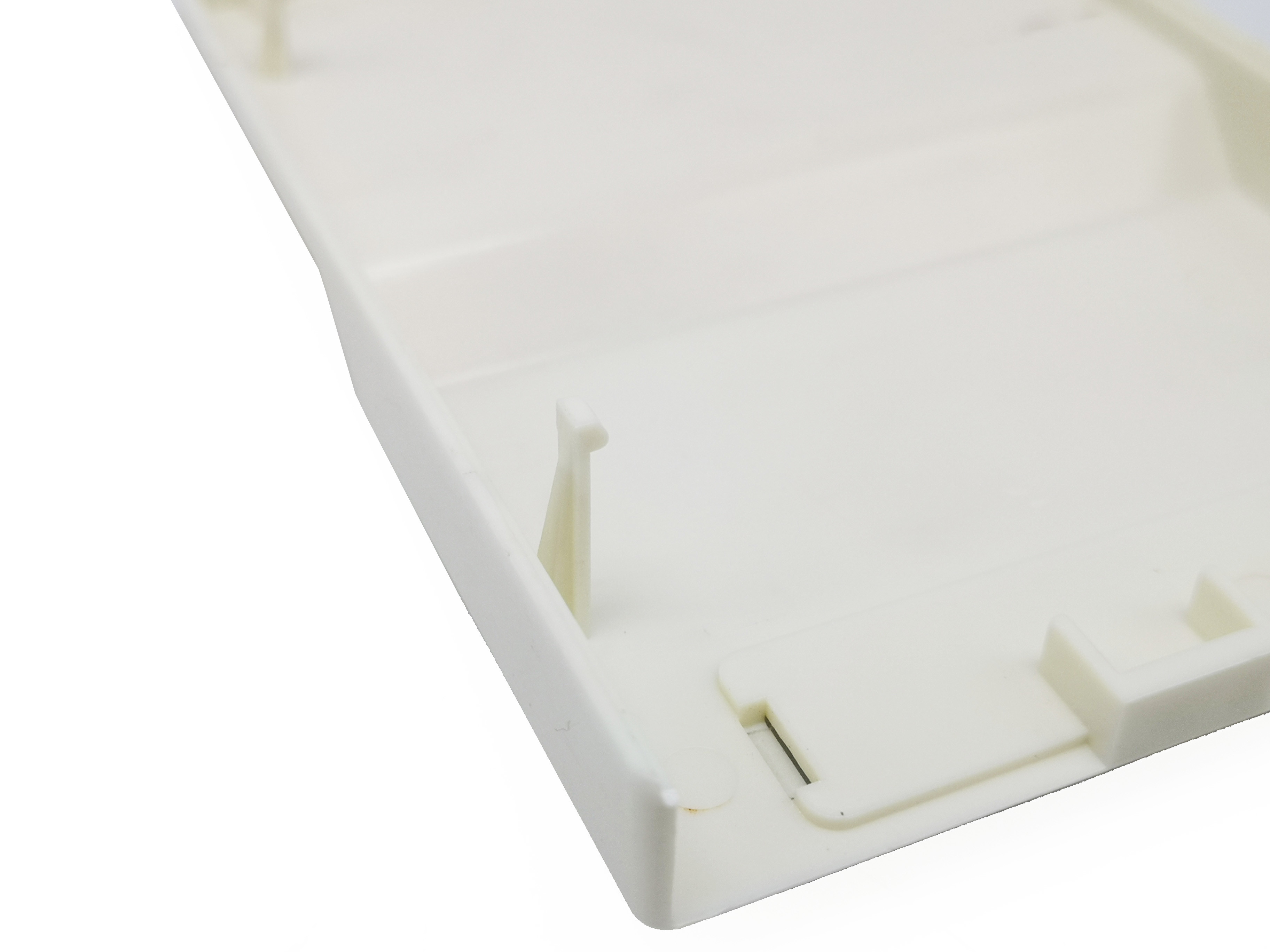

There are 2 card-type designs on the left and right sides, which open and close firmly, and the lid is not easy to fall off. It is easy to handle, no other tools are needed during construction;



Indoor Plastic Wall Outlet 2.0mm Fiber Optic Termination Box 3

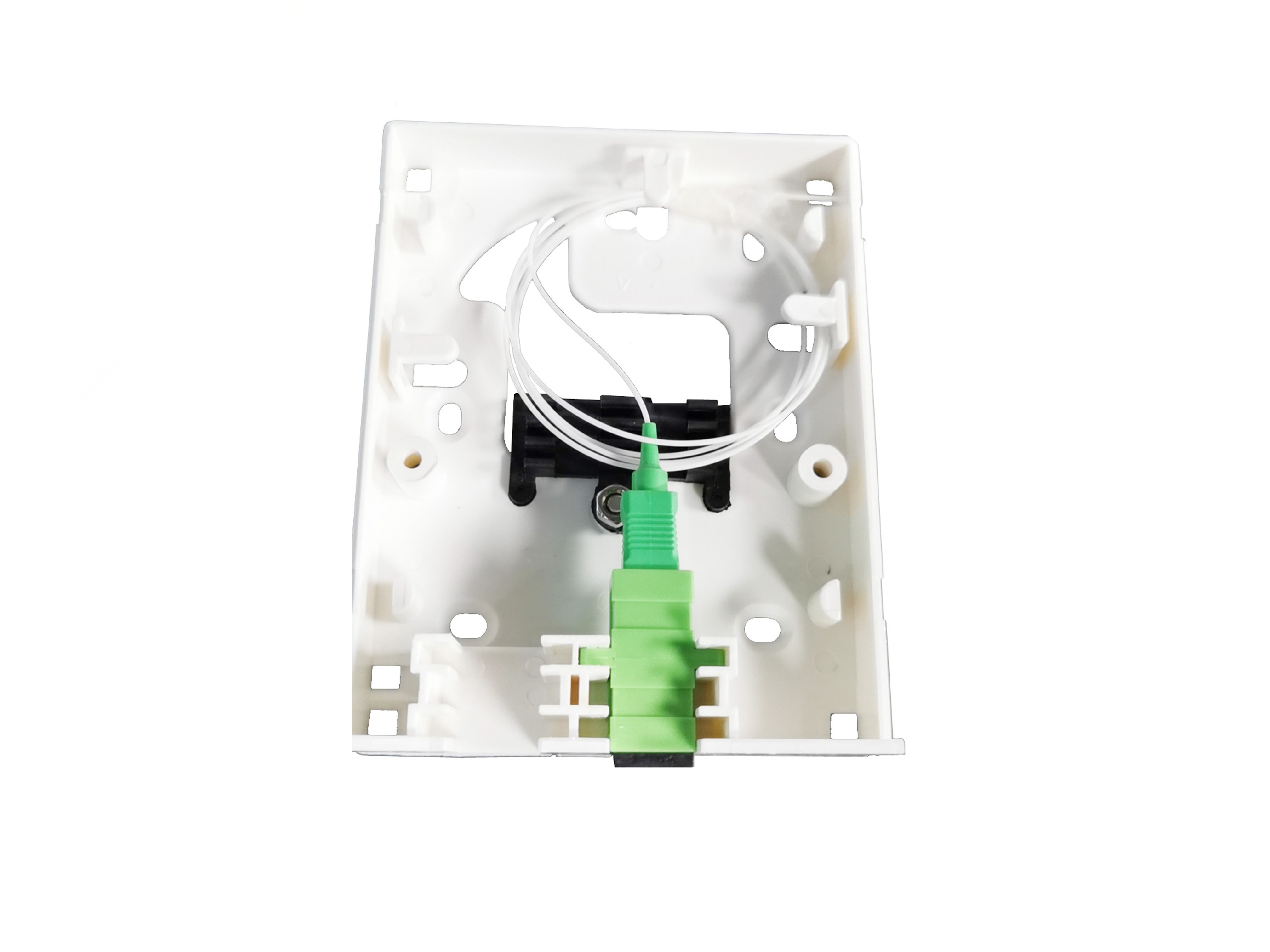

The front panel adopts the universal SC adapter, which is convenient and quick, and the construction is simple. It can store 2m of optical cord or pigtails with 0.9mm diameter;

Indoor Plastic Wall Outlet 2.0mm Fiber Optic Termination Box 4

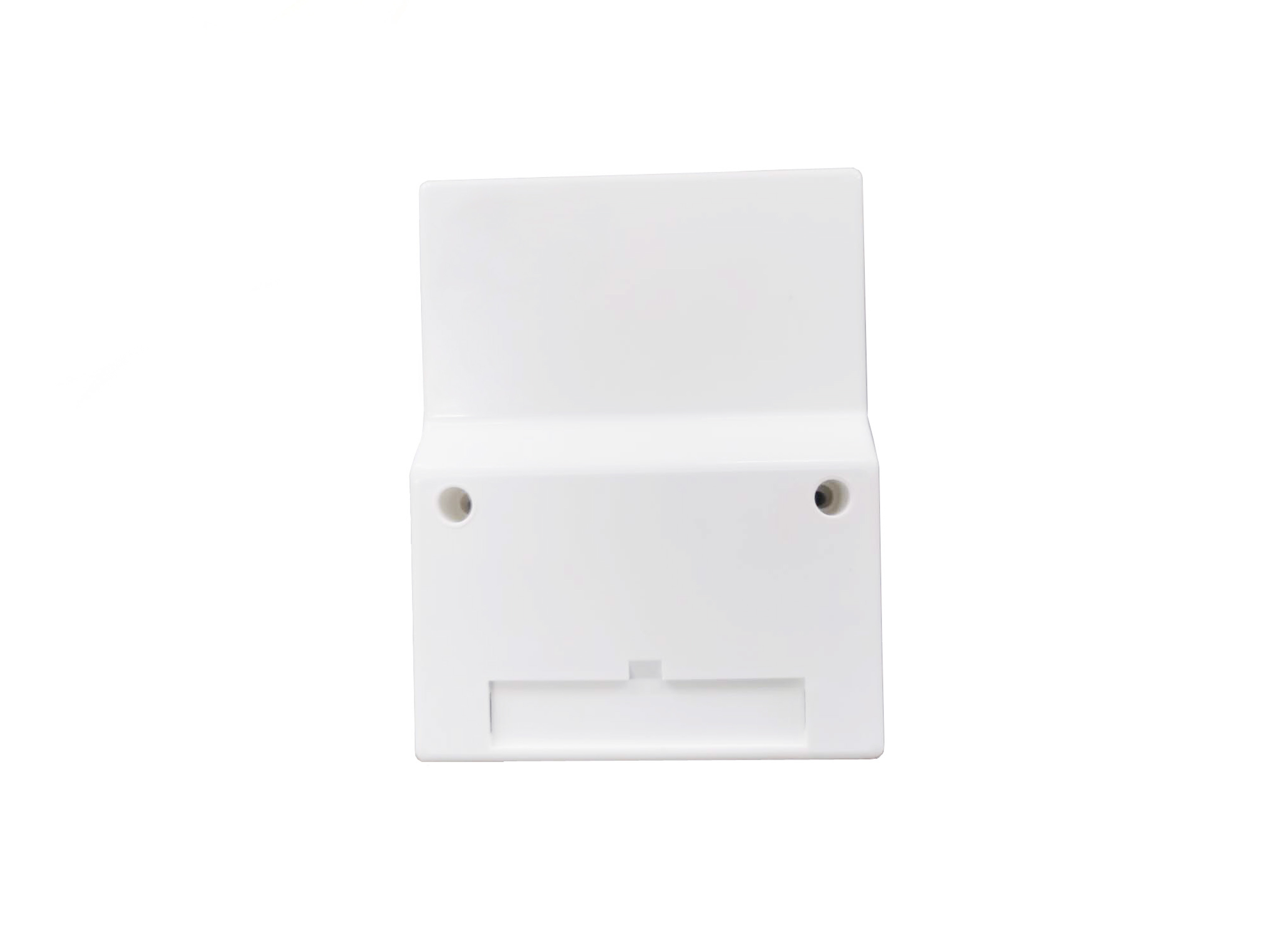

At top of the box, there is logo print reserved position with paper block if no need, and we can open 2 screws to fix the cover and bottom to make it more safe, then without screw driver, can not open the box by hand. details pls see above picture.

Indoor Plastic Wall Outlet 2.0mm Fiber Optic Termination Box 5

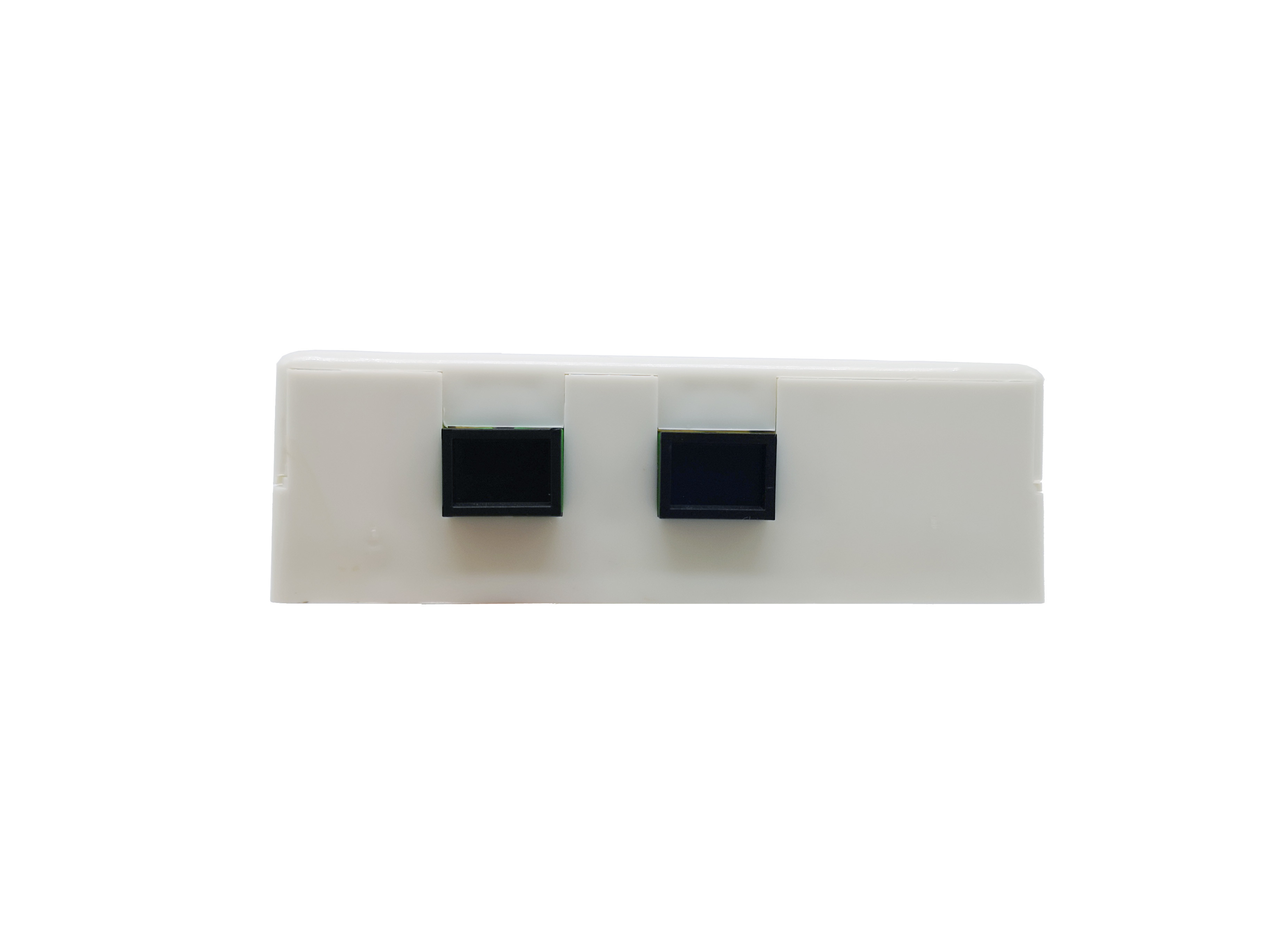

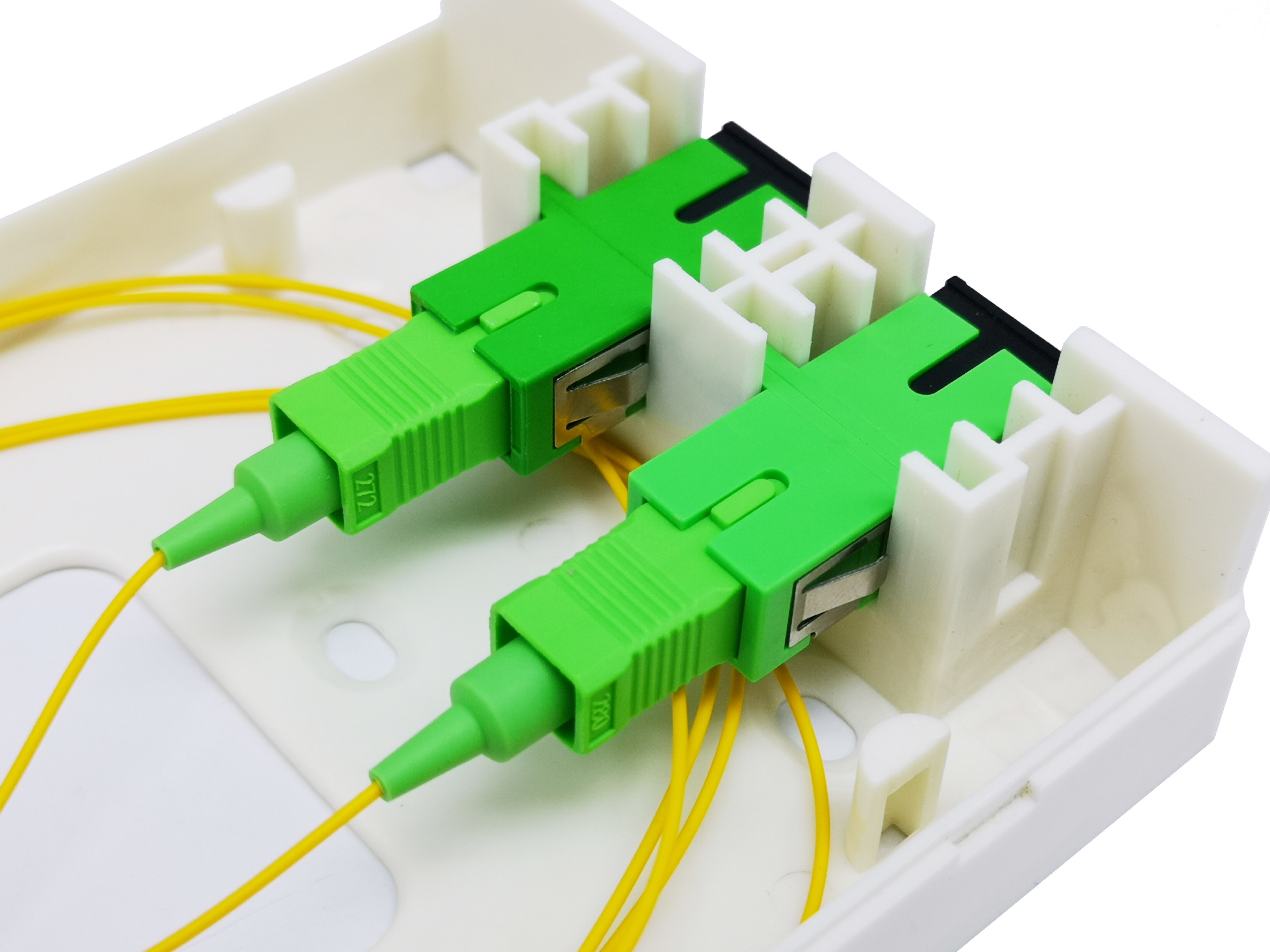

The box front is for adapters exit, only insert the pigtails or patch cord in, then can connected. standard type or shutter type both ok.



Indoor Plastic Wall Outlet 2.0mm Fiber Optic Termination Box 6

Cable entry from bottom hole, not side or front, this hidden wiring design, more beautiful and safe, to prevent man-made damage to the optical fiber fracture and affect the optical fiber transmission performance;



The cable enter the box from the bottom middle hole or small square holes at the corners, there is special space for cable routing. Which make it more clean after installation, no cable will be seen by human eye.



Indoor Plastic Wall Outlet 2.0mm Fiber Optic Termination Box 7

It can be installed on any vertical flat surface on wall; if on field installation use mechanical splicer, we can fix a holder at the 4 holes around the big hole in the middle. There are many wall mounting holes design at the bottom plate to make installation easier.





Standard accessories



2pcs fixing screws, 2pcs screws for closing the cover, 2sleeve, heat shrink sleeve slot(optional), adapter(optional), pigtail(optional)

Indoor Plastic Wall Outlet 2.0mm Fiber Optic Termination Box 8



Any more questions, please call us at:



We will be back to you at first sight.

Welcome inquir!

There is cable ports at both sides and at back of the box, which ensure flexible fiber distribution and management. when use, please use tools to cut off the block, then can use.
