Fiber Optic Termination Box
Created with Pixso. 2 Port Plastic FTTH Wall Mount IP30 Optical Termination Box

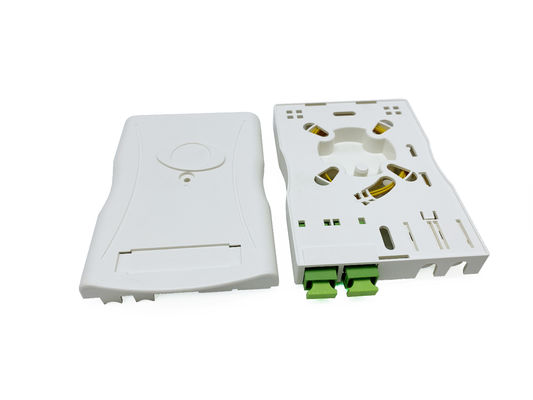

2 Port Plastic FTTH Wall Mount IP30 Optical Termination Box

Brand Name: YINGDA
Model Number: FTB86P
MOQ: 500pc
Price: 0.18USD-4.29USD
Delivery Time: 7days
Payment Terms: T/T, L/C, Western Union
Detail Information
Place of Origin:
china
Certification:
ISO
Material:
PC+ABS
Color:
White
Max Capacity:
2core
Max. Fusion:
1core
Fiber Type:
Singlemode Multimode
Dimension:
115*80*25mm
Adapter:
2 SC Or 1 LC Duplex
Input Cable Diameter:
5.8mm
Output Cable Diameter:
2*1.6mm Or 2*3.0mm Flat Cable
Application:
Ftth Indoor Network
Mounting Way:
Wall Mount With Screw
Packaging Details:
100pcs/box
Highlight:

IP30 Optical Termination Box

,

IP30 Wall Mount Termination Box

,

5.8mm Optical Termination Box

Product Description

2 Port Plastic FTTH Wall Mount IP30 Optical Termination Box



Indoor 2 Port Plastic Optical Roseta FTTH Wall Mount Outlet Faceplate White IP30 Terminal Box SC Coupler





The optical rosette acts as a termination point of the optical network, it use direct connectorization or fusion splice in a pre-connectorized pigtail. It can be installed on the wall, and adapt variety of optical connection styles LC/SC, maximum 2 cores.



Features

  • It can be installed on any vertical flat surface or on a 4x2 ‘box embedded in wall;
  • Compact dimension, light weight, special design
  • Easy handling, no special tools needed;
  • Identification Label behind the cover;
  • The fiber optic reserve is inside the product;
  • Allows accommodation of 40mm or 60mm fusion splice protectors;
  • Capacity to store 20cm of optical cord with 3mm diameter;
  • Complies with what is specified in the recommendations of the IEC 61755-1 standard;
  • The lid is closed with a single screw in stainless steel and with a rotate cover to prevent dust.
  • Five accesses for input and output of cables or optical cords (patch cords): 2 lower,1 top, 1 side and 1 access in the back cover;



Specification



Model FTB86P
Dimension (H*W*D) 115*80*25mm
Max.Capacity 2 core (single fiber) or mechanical splices
Cable type Flat/ indoor round cable
Maximum input cable diameter φ5.8mm
Outlet cable diameter 2*1.6mm or2*3.0mm flat cable
Adapter 2 SC
Color white
Material PC+ABS
Protection level IP30
impact protection IK01
Fiber type single mode & multimode
Guarantee 12 months
Standards

Degree of protection: IEC 60529;

Temperature variation: IEC 61300-2-22;

Telcordia GR-771.



Application

FTTH internal environment



Product details

2 Port Plastic FTTH Wall Mount IP30 Optical Termination Box 0

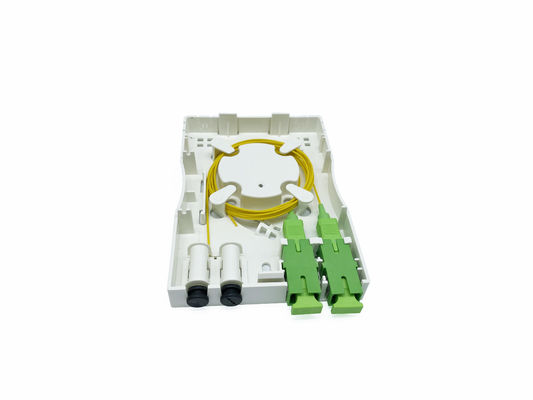

2pcs Cable entry at front can allow maximum 5.8mm round feeder cable with rubber seal to make it stable, there is plastic cable clamp inside.

2 Port Plastic FTTH Wall Mount IP30 Optical Termination Box 1

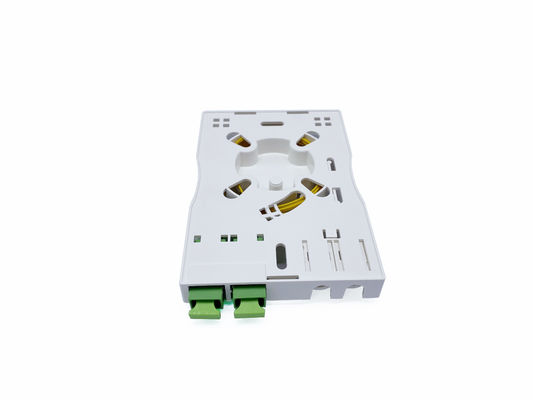

On the right front is SC coupler without flange slots, maxim 2 SC optical adapters.We can use standard SC adapter or adapter with dustproo



2 Port Plastic FTTH Wall Mount IP30 Optical Termination Box 2

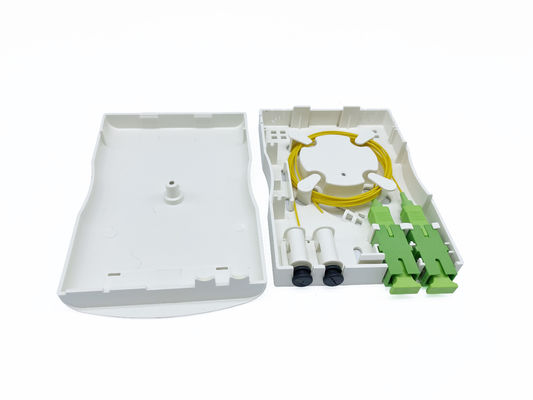

The fiber storage and management area is large space, 1.5meter is ok, the structure is special, which ensure fiber at place, not move out.



2 Port Plastic FTTH Wall Mount IP30 Optical Termination Box 3

There is 1 pcs heat sherink sleeve fix slot beside the fiber routing area, can use 40mm,45mm or 60mm sleeves, if need, please click:

http://mao.ecer.com/test/fibreopticbox.com/quality-3989424-1-5mm-steel-eva-heat-shrinkable-tube-protection-sleeve-45mm-40mm-60mm

2 Port Plastic FTTH Wall Mount IP30 Optical Termination Box 4

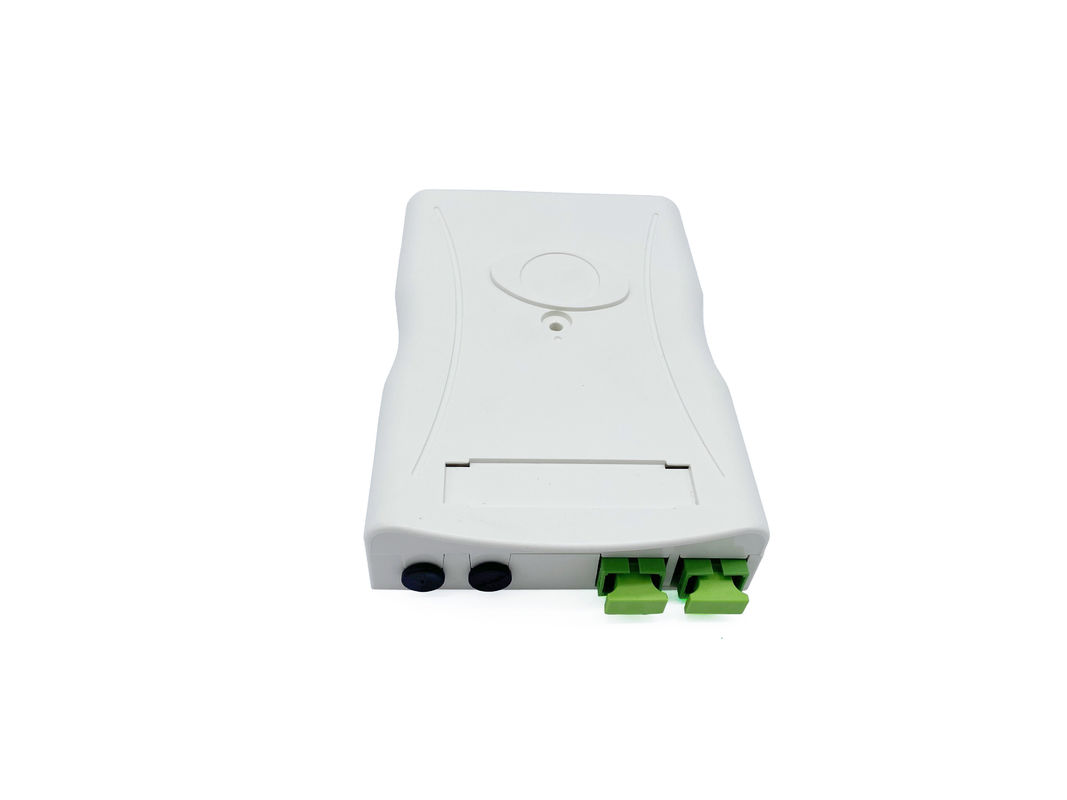

At front of the box, there is cable entry or adapter output fix location; Fiber optic cable in and out at the same plane, the operation is more convenient and fast, each other does not affect each other, the structure is reasonable and clear;

2 Port Plastic FTTH Wall Mount IP30 Optical Termination Box 5

The box with a screw lock to fix the cover and bottom, the stainless steel expansion screw is firm and reliable. It is covered with a specially customized dust cover, which has good protection, effectively avoids man-made damage.





Standard accessories

04 plastic tapes, 02 fixing screws, 02 screws for closing the cover.

2 Port Plastic FTTH Wall Mount IP30 Optical Termination Box 6



Operation Instructions



Use adapters and connectors, to be acquired separately

2 Port Plastic FTTH Wall Mount IP30 Optical Termination Box 7



Do the splice using the supplied splice protection sleeves with 40 mm long and diameter 3 mm (when contracted), this product must be acquired separately.



2 Port Plastic FTTH Wall Mount IP30 Optical Termination Box 8





Any more questions, please call us at:





We will be back to you at first sight.

Welcome inquir!

There is cable ports at both sides and at back of the box, which ensure flexible fiber distribution and management. when use, please use tools to cut off the block, then can use.
